USER SET MODE

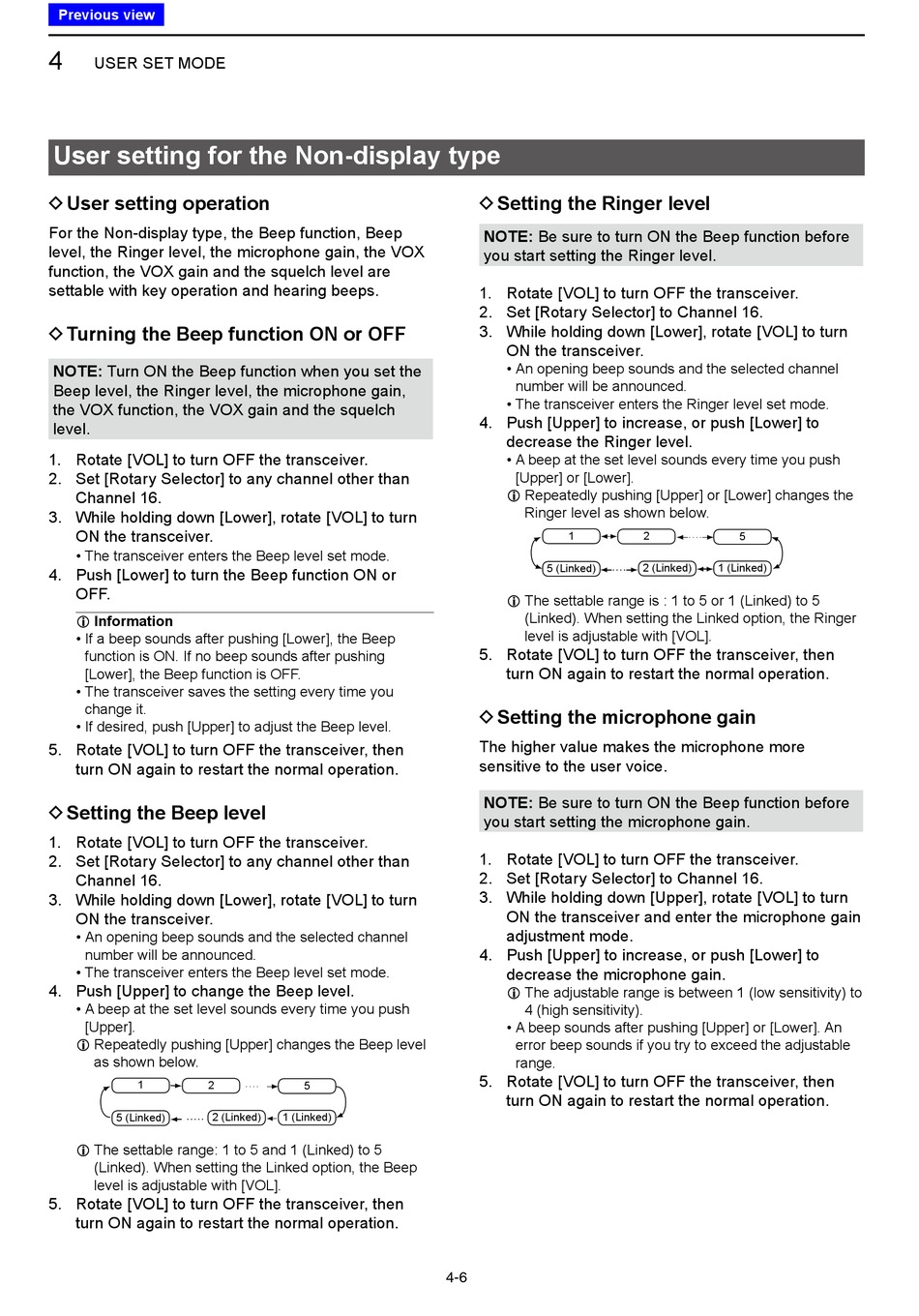

User setting for the Non-display type

D User setting operation
For the Non-display type, the Beep function, Beep
level, the Ringer level, the microphone gain, the VOX
function, the VOX gain and the squelch level are
settable with key operation and hearing beeps�

D Turning the Beep function ON or OFF

NOTE: Turn ON the Beep function when you set the
Beep level, the Ringer level, the microphone gain,
the VOX function, the VOX gain and the squelch
level�
1� Rotate [VOL] to turn OFF the transceiver�
2� Set [Rotary Selector] to any channel other than
Channel 16�
3� While holding down [Lower], rotate [VOL] to turn
ON the transceiver�
• The transceiver enters the Beep level set mode�
4� Push [Lower] to turn the Beep function ON or
OFF�
Information
L
• If a beep sounds after pushing [Lower], the Beep
function is ON� If no beep sounds after pushing
[Lower], the Beep function is OFF�
• The transceiver saves the setting every time you
change it�
• If desired, push [Upper] to adjust the Beep level�
5� Rotate [VOL] to turn OFF the transceiver, then
turn ON again to restart the normal operation�

D Setting the Beep level

1� Rotate [VOL] to turn OFF the transceiver�
2� Set [Rotary Selector] to any channel other than
Channel 16�
3� While holding down [Lower], rotate [VOL] to turn
ON the transceiver�
• An opening beep sounds and the selected channel
number will be announced�
• The transceiver enters the Beep level set mode�
4� Push [Upper] to change the Beep level�
• A beep at the set level sounds every time you push
[Upper]�
L Repeatedly pushing [Upper] changes the Beep level
as shown below�
1
2
5 (Linked) 2 (Linked)
L The settable range: 1 to 5 and 1 (Linked) to 5
(Linked)� When setting the Linked option, the Beep
level is adjustable with [VOL]�
5� Rotate [VOL] to turn OFF the transceiver, then
turn ON again to restart the normal operation�
5
1 (Linked)
4-6

D Setting the Ringer level

NOTE: Be sure to turn ON the Beep function before
you start setting the Ringer level�
1� Rotate [VOL] to turn OFF the transceiver�
2� Set [Rotary Selector] to Channel 16�
3� While holding down [Lower], rotate [VOL] to turn
ON the transceiver�
• An opening beep sounds and the selected channel
number will be announced�
• The transceiver enters the Ringer level set mode�
4� Push [Upper] to increase, or push [Lower] to
decrease the Ringer level�
• A beep at the set level sounds every time you push
[Upper] or [Lower]�
L Repeatedly pushing [Upper] or [Lower] changes the
Ringer level as shown below�
1 2
2 (Linked)
5 (Linked)
L The settable range is : 1 to 5 or 1 (Linked) to 5
(Linked)� When setting the Linked option, the Ringer
level is adjustable with [VOL]�
5� Rotate [VOL] to turn OFF the transceiver, then
turn ON again to restart the normal operation�

D Setting the microphone gain

The higher value makes the microphone more
sensitive to the user voice�
NOTE: Be sure to turn ON the Beep function before
you start setting the microphone gain�
1� Rotate [VOL] to turn OFF the transceiver�
2� Set [Rotary Selector] to Channel 16�
3� While holding down [Upper], rotate [VOL] to turn
ON the transceiver and enter the microphone gain
adjustment mode�
4� Push [Upper] to increase, or push [Lower] to
decrease the microphone gain�
L The adjustable range is between 1 (low sensitivity) to
4 (high sensitivity)�
• A beep sounds after pushing [Upper] or [Lower]� An
error beep sounds if you try to exceed the adjustable
range�
5� Rotate [VOL] to turn OFF the transceiver, then
turn ON again to restart the normal operation�
5
1 (Linked)
