8

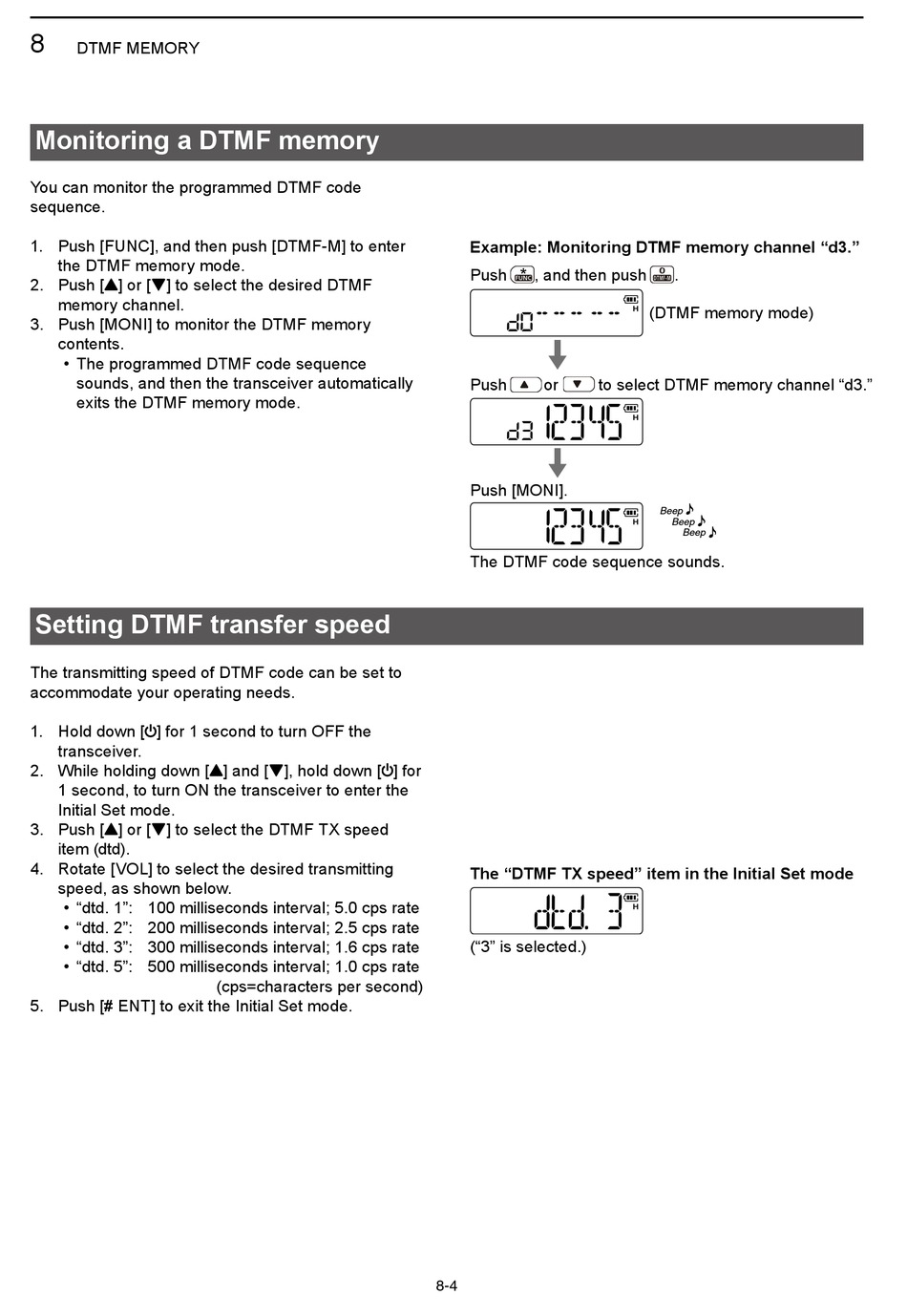

DTMF MEMORY

Monitoring a DTMF memory

You can monitor the programmed DTMF code
sequence.
1. Push [FUNC], and then push [DTMF-M] to enter
the DTMF memory mode.
2. Push [Y] or [Z] to select the desired DTMF
memory channel.
3. Push [MONI] to monitor the DTMF memory
contents.
• The programmed DTMF code sequence
sounds, and then the transceiver automatically
exits the DTMF memory mode.

Setting DTMF transfer speed

The transmitting speed of DTMF code can be set to
accommodate your operating needs.
1. Hold down [ ] for 1 second to turn OFF the
transceiver.
2. While holding down [Y] and [Z], hold down [ ] for
1 second, to turn ON the transceiver to enter the
Initial Set mode.
3. Push [Y] or [Z] to select the DTMF TX speed
item (dtd).
4. Rotate [VOL] to select the desired transmitting
speed, as shown below.
• "dtd. 1": 100 milliseconds interval; 5.0 cps rate
• "dtd. 2": 200 milliseconds interval; 2.5 cps rate
• "dtd. 3": 300 milliseconds interval; 1.6 cps rate
• "dtd. 5": 500 milliseconds interval; 1.0 cps rate
5. Push [# ENT] to exit the Initial Set mode.
(cps=characters per second)
Example: Monitoring DTMF memory channel "d3."
Push , and then push
Push or to select DTMF memory channel "d3."
Push [MONI].
The DTMF code sequence sounds.
The "DTMF TX speed" item in the Initial Set mode
("3" is selected.)
8-4
.
(DTMF memory mode)
Beep
Beep
Beep
