13

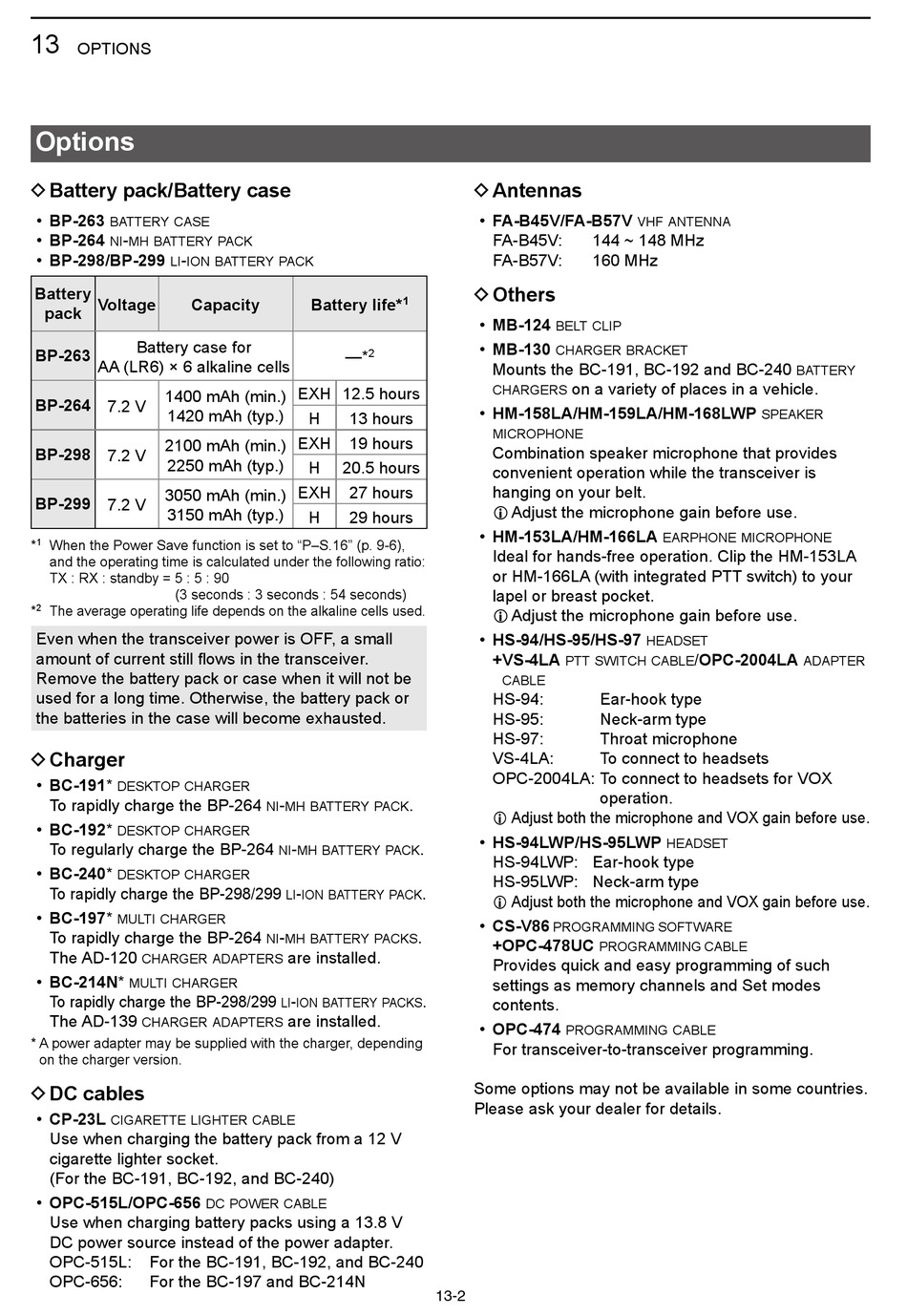

OPTIONS
Options
D Battery pack/Battery case
• BP-263
battery case
• BP-264 -
ni mh battery pack
• BP-298/BP-299 -
li ion battery pack
Battery
Voltage Capacity
pack
Battery case for
BP-263
AA (LR6) × 6 alkaline cells
1400 mAh (min.)
BP-264 7.2 V
1420 mAh (typ.)
2100 mAh (min.)
BP-298 7.2 V
2250 mAh (typ.)
3050 mAh (min.)
BP-299 7.2 V
3150 mAh (typ.)
* 1 When the Power Save function is set to "P–S.16" (p. 9-6),
and the operating time is calculated under the following ratio:
TX : RX : standby = 5 : 5 : 90
(3 seconds : 3 seconds : 54 seconds)
* 2 The average operating life depends on the alkaline cells used.
Even when the transceiver power is OFF, a small
amountofcurrentstillflowsinthetransceiver.
Remove the battery pack or case when it will not be
used for a long time. Otherwise, the battery pack or
the batteries in the case will become exhausted.
D Charger
• BC-191*
desktop charger
To rapidly charge the BP-264
• BC-192*
desktop charger
To regularly charge the BP-264
• BC-240*
desktop charger
To rapidly charge the BP-298/299
• BC-197*
multi charger
To rapidly charge the BP-264
The AD-120
charger adapters
• BC-214N*
multi charger
To rapidly charge the BP-298/299
The ad-139
charger adapters
* A power adapter may be supplied with the charger, depending
on the charger version.
D DC cables
• CP-23L
cigarette lighter cable
Use when charging the battery pack from a 12 V
cigarette lighter socket.
(For the BC-191, BC-192, and BC-240)
• OPC-515L/OPC-656
Use when charging battery packs using a 13.8 V
DC power source instead of the power adapter.
OPC-515L: For the BC-191, BC-192, and BC-240
OPC-656: For the BC-197 and BC-214N
Battery life*
—* 2
EXH 12.5 hours
H 13 hours
EXH 19 hours
H 20.5 hours
EXH 27 hours
H 29 hours
-
ni mh battery pack
-
ni mh battery pack
-
li ion battery pack
-
ni mh battery packs
are installed.
-
li ion battery packs
are installed.
dc power cable
D Antennas
• FA-B45V/FA-B57V
FA-B45V:
FA-B57V:
D Others
1
• MB-124
belt clip
• MB-130
charger bracket
Mounts the BC-191, BC-192 and BC-240
on a variety of places in a vehicle.
chargers
• HM-158LA/HM-159LA/HM-168LWP
microphone
Combination speaker microphone that provides
convenient operation while the transceiver is
hanging on your belt.
L Adjust the microphone gain before use.
• HM-153LA/HM-166LA
Ideal for hands-free operation. Clip the HM-153LA
or HM-166LA (with integrated PTT switch) to your
lapel or breast pocket.
L Adjust the microphone gain before use.
• HS-94/HS-95/HS-97
+ VS-4LA
ptt switch cable
cable
HS-94:
HS-95:
HS-97:
VS-4LA:
OPC-2004LA: To connect to headsets for VOX
.
L Adjust both the microphone and VOX gain before use.
• HS-94LWP/HS-95LWP
.
hs-94lwp: Ear-hook type
HS-95LWP: Neck-arm type
.
L Adjust both the microphone and VOX gain before use.
• CS-V86
programming software
.
+OPC-478UC
Provides quick and easy programming of such
settings as memory channels and Set modes
.
contents.
• OPC-474
programming cable
For transceiver-to-transceiver programming.
Some options may not be available in some countries.
Please ask your dealer for details.
13-2
vhf antenna
144 ~ 148 MHz
160 MHz
speaker
earphone microphone
headset
/OPC-2004LA
Ear-hook type
Neck-arm type
Throat microphone
To connect to headsets
operation.
headset
programming cable
battery
adapter
