1

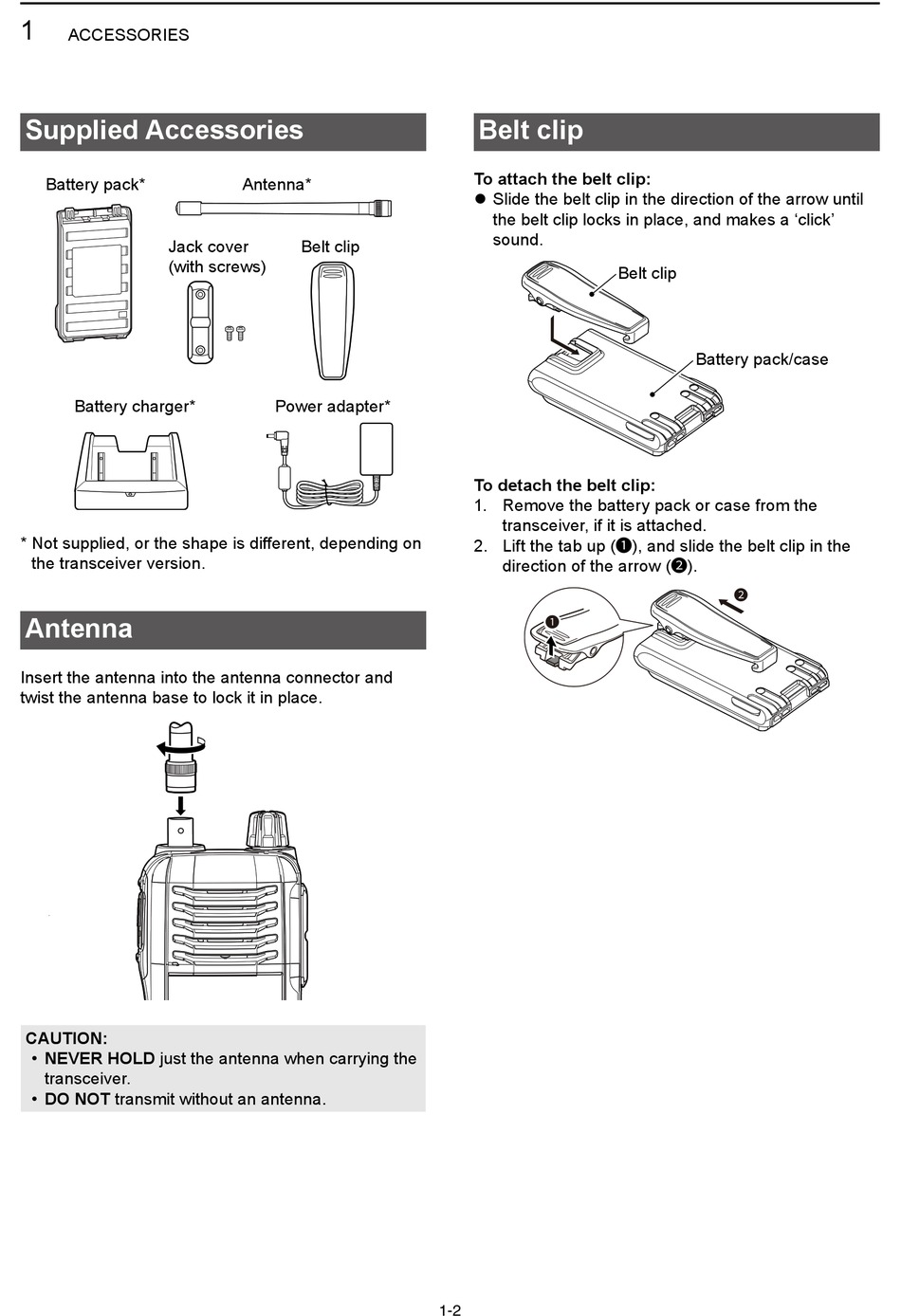

ACCESSORIES

Supplied Accessories

Battery pack*
Jack cover
(with screws)
Battery charger*
* Not supplied, or the shape is different, depending on
the transceiver version.

Antenna

Insert the antenna into the antenna connector and
twist the antenna base to lock it in place.
CAUTION:
• NEVER HOLD just the antenna when carrying the
transceiver.
• DO NOT transmit without an antenna.
Antenna*

Belt clip

Power adapter*
Belt clip

To attach the belt clip:

z Slide the belt clip in the direction of the arrow until
the belt clip locks in place, and makes a 'click'
sound.
To detach the belt clip:
1. Remove the battery pack or case from the
transceiver, if it is attached.
2. Lift the tab up (1), and slide the belt clip in the
direction of the arrow (2).
1-2
Belt clip
Battery pack/case
