44

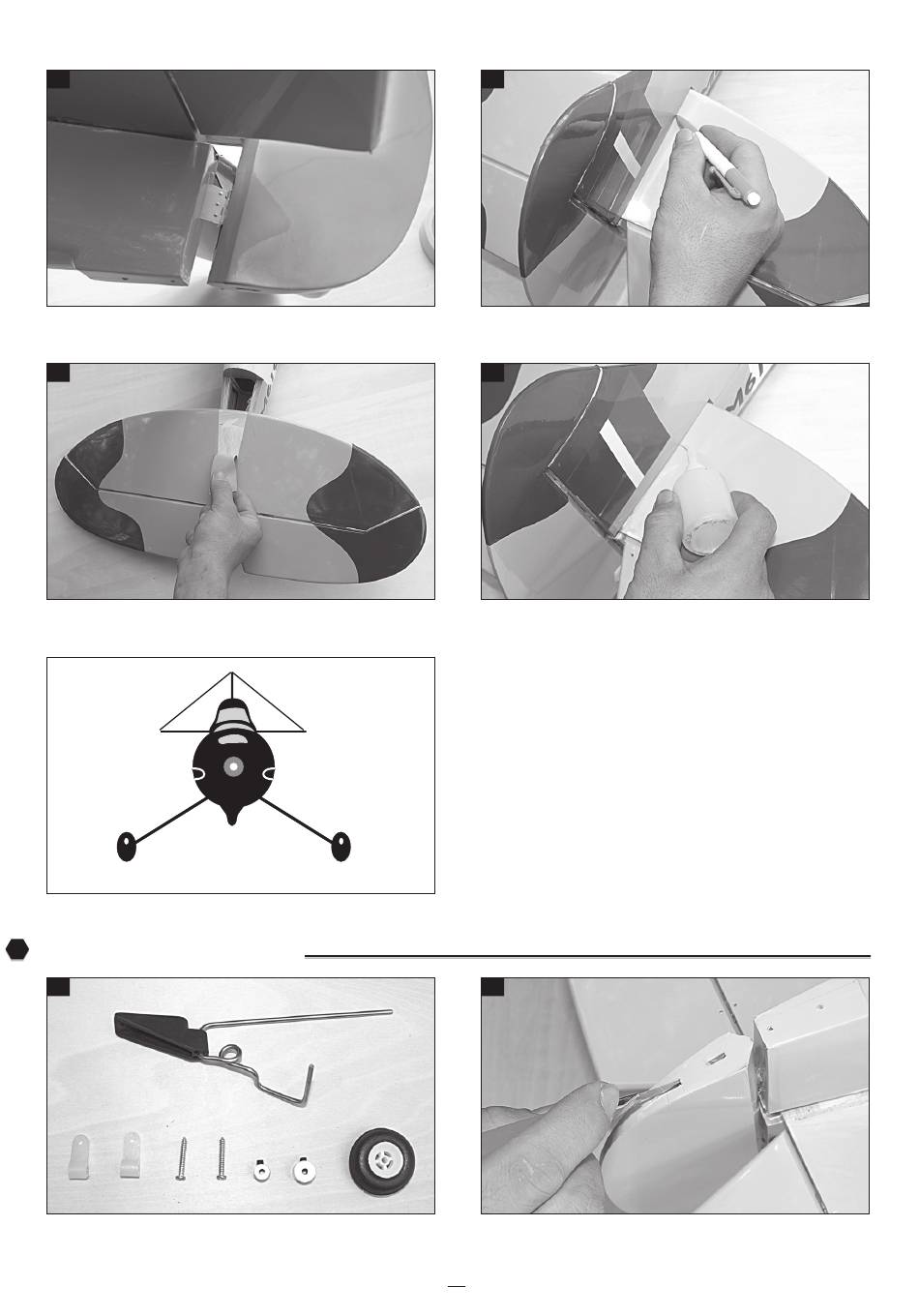

Attach the vertical to the fuselage and insert the hinge into
the slot.
46
Remove the covering from the top of the vertical.
a1

Installing the tail gear.

6
48
The tail gear.
a2
a1 = a2
45
Mark the shape of the vertical onto the top of the horizontal.
47
Glue the vertical into the fuselage by epoxy and also glue the
hinge of rudder.
49
Make the slot onto the bottom of the rudder.
8
