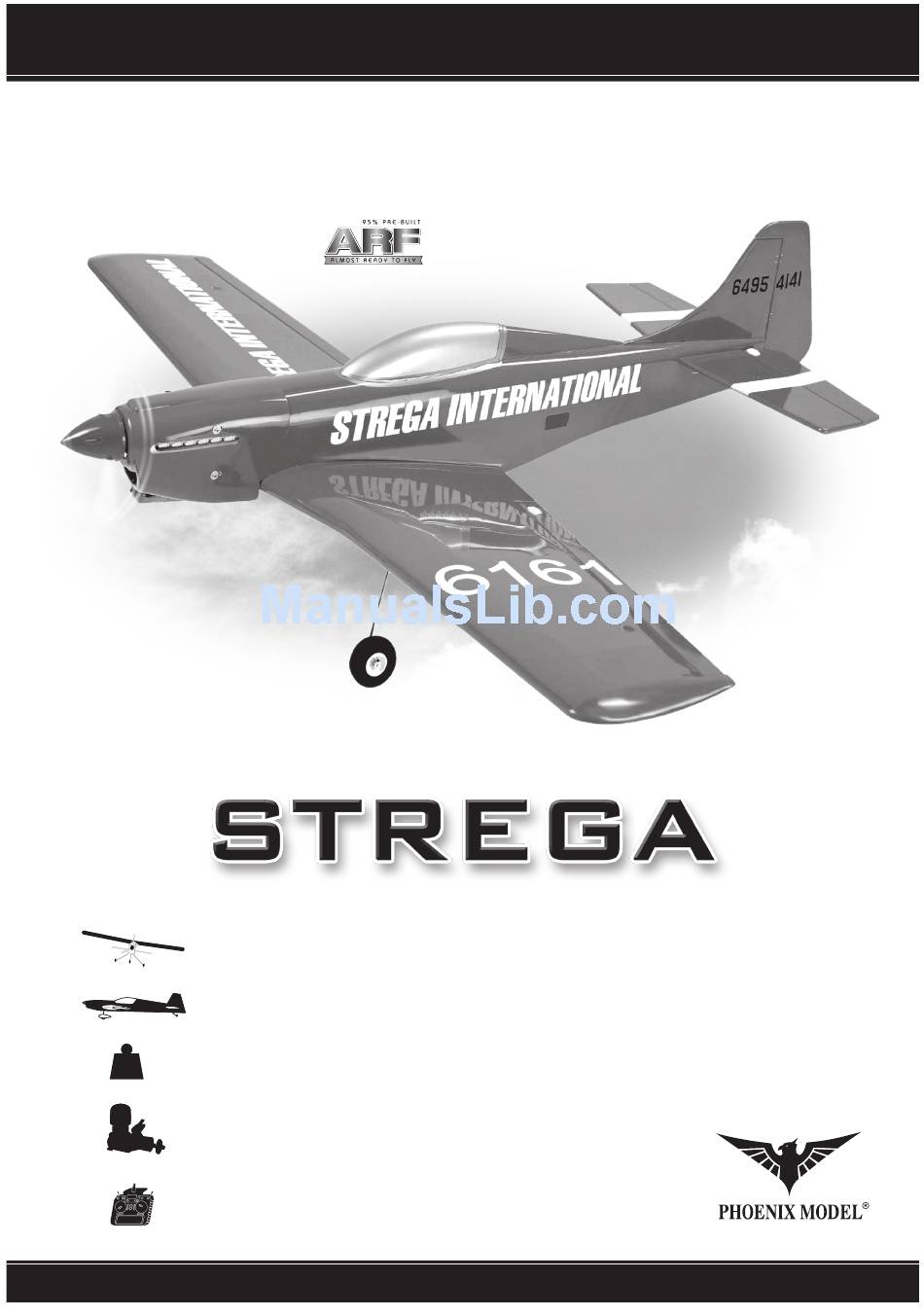

Phoenix Model strega Instruction Manual

Phoenix Model strega Instruction Manual

Hide thumbs Also See for strega:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Instruction Manual
Wingspan : 1385 mm (54.5 inches)
Length
g
Weight
Engine
Radio
We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model products.
: 1185 mm (46.6 inches)
: 2360 gr
: 40 - 46 (two stroke)
48 - 53 (four stroke)
: 4 channels / 5 servos

Advertisement

loading
Need help?

Need help?

Do you have a question about the strega and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix Model strega

Summary of Contents for Phoenix Model strega

  • Page 1 Engine : 40 - 46 (two stroke) 48 - 53 (four stroke) Radio : 4 channels / 5 servos We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model products.

  • Page 2: Kit Contents

    Instruction Manual Strega KIT CONTENTS: We have organized the parts as they were out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly.
  • Page 3 This will assure proper 3. Using a modeling knife, remove the covering from assembly. The STREGA ARF is hand made from over the pre-cut servo arm exit hole on the servo natural materials, every plane is unique and minor tray/hatch.
  • Page 4 Instruction Manual Strega 5. Place the servo into the servo tray. Center the servo within the tray and drill 1,6mm pilot holes through the block of wood for each of the four mounting screws provided with the servo. Masking Tape...
  • Page 5 Instruction Manual Strega AILERON LINKAGE JOINING THE WING HALVES PARTS REQUIRED 15. Mix a generous amount of 30 minute epoxy. · (2) 2mm x 180mm Threaded wires. Working with only one wing half for now, apply · (2) Nylon control horns.
  • Page 6 Instruction Manual Strega 2. Draw a center line onto the horizontal stabilizer. 6. Locate one nylon servo arm, and using wire cutters, remove all but one of the arms. Using a 2mm drill bit, enlarge the third hole out from the center of the arm to accommodate the aileron pushrod wire.
  • Page 7 Instruction Manual Strega 2. Slide the vertical stabilizer into the slot in the mounting platform in the top of the fuselage. Mark Remove the covering the shape of the fuselage on the left and right sides of the vertical stabilizer using a felt-tip pen.
  • Page 8 Instruction Manual Strega TAIL WHEEL INSTALLATION INSTALLING THE MAIN LANDING GEAR 1. Remove the covering from the bottom of the PARTS REQUIRED wing as the photo. · (1) Tail wheel bracket w/wire. · (1) Wheel collar with set screw. 2. Install main landing gear into the wing using 4 ·...
  • Page 9 Instruction Manual Strega 5. Test fit the stopper assembly into the tank. It may be necessary to trim some of the flashing around the tank opening using a modeling knife. If flashing is present, make pure none falls into the tank.
  • Page 10 Instruction Manual Strega 7. Drill two 1,6mm holes through the elevator using INSTALLING THE FUSELAGE SERVOS the control horn as a guide and screw the control horn in place. 1. Install the rubber grommets and brass eyelets into the elevator, rudder and throttle servos.
  • Page 11 Instruction Manual Strega 2. Locate the pushrod exit slot on the right of the fuselage. 3. Carefully cut away the covering material from the slot. 4. Working from inside the fuselage, slide the threaded end of the remaining pushrod down the inside of the fuselage until the pushrod reaches the exit slot.
  • Page 12 Instruction Manual Strega MOUNTING THE COWL WING MOUNTING PARTS REQUIRED PARTS REQUIRED · (1) Belly pan · (1) Fiberglass cowl · (2) 6mm x 45 mm nylon screws · (4) 3mm x 12mm wood screw INSTALLING THE WING 1. Remove the muffler and needle valve assembly from the engine.
  • Page 13 Instruction Manual Strega INSTALLING THE RECEIVER AND BATTERY INSTALLING THE WING FILLET 1. Plug the servo leads and the switch lead into Out line the wing fillet the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead in the wing easier when you are installing the wing.
  • Page 14 Instruction Manual Strega BALANCING CONTROL THROWS 1. It is critical that your airplane be balanced 1. We highly recommend setting up a plane using the correctly. Improper balance will cause your control throws listed. plane to lose control and crash.
  • Page 15 Instruction Manual Strega I/C FLIGHT WARNINGS...
  • Page 16 I/C FLIGHT GUIDELINES 2_ View Drawing for your Strega Made in Vietnam...
