Correct
Horizontal stabilizer
Wrong
Horizontal stabilizer
59
Silicone tube
Metal clevis

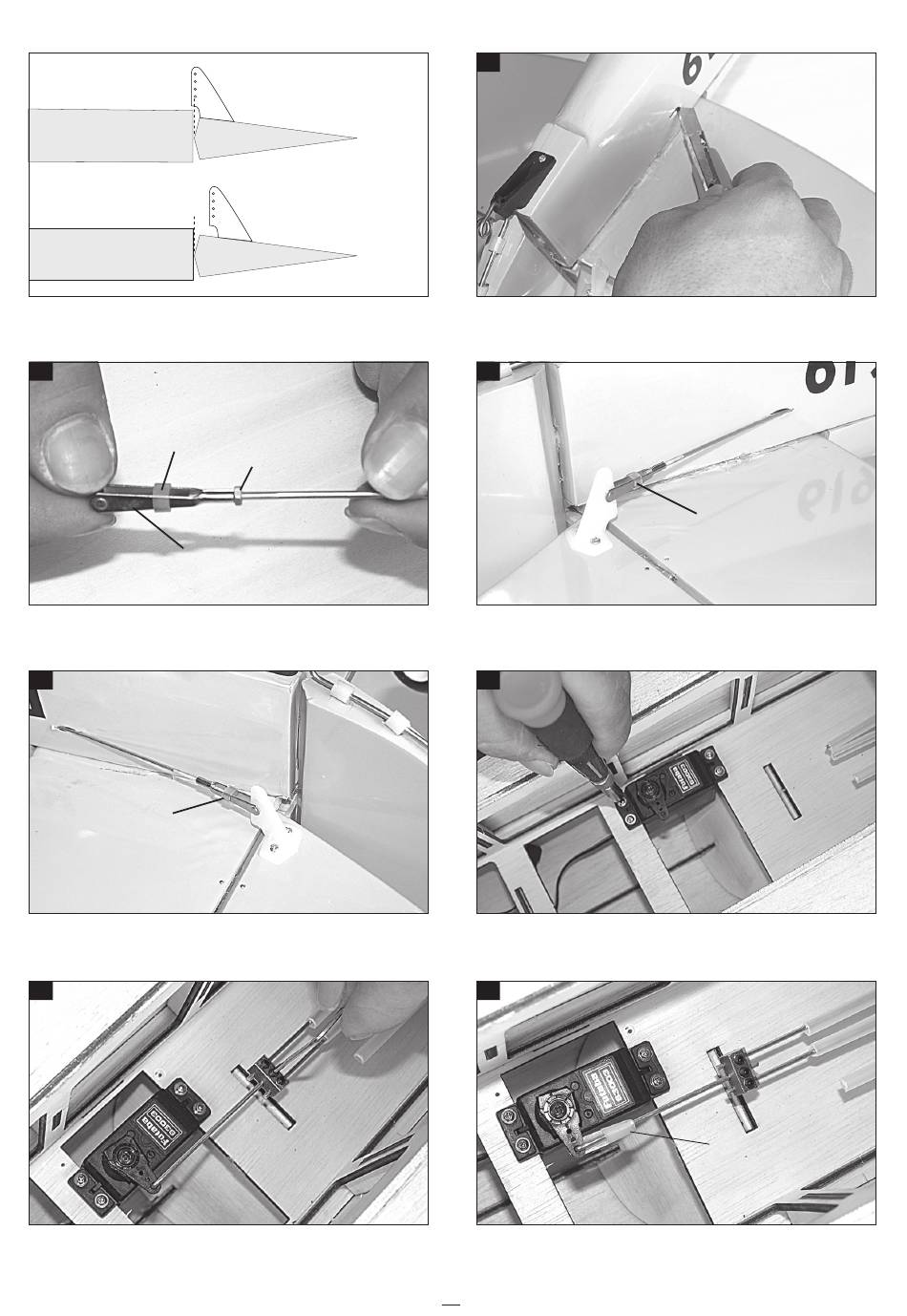

Install the metal clevis to the elevator pushrod and insert the
pushrod into the fuselage (for both side).
61
Silicone tube
Attach the metal clevis to the control horn of the right side
of elevator.
63
Connect two elevator pushrod to the domino and secure
them.
Control horn
Elevator
Control horn
Elevator
Nut
58
Remove the covering from both side of the fuselage.
60
Attach the metal clevis to the control horn of the left side of
elevator.
62
Install the elevator servo into the fuselage.
64
Connect the domino to the servo arm and secure it by nylon
clasp.
10
Silicone tube
Nylon clasp
