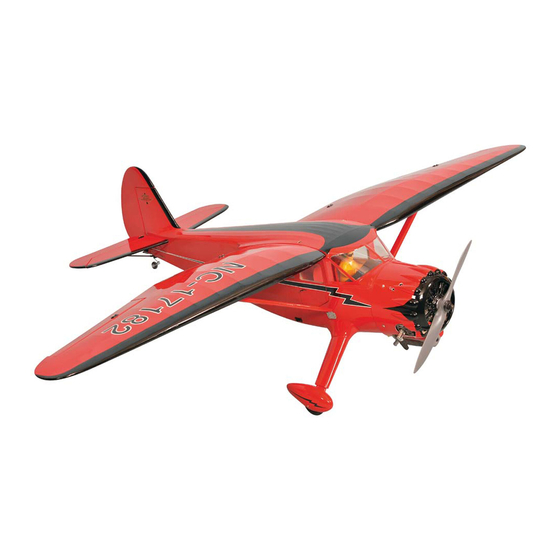

SPECIFICATION
- Wingspan: 1720mm (67.7in)
- Length: 1338mm (52.6 in)
- Flying weight: 4400-4800 g
- Wing area: 42,2 dm2
- Wing loading: 90g/dm2
- Wing type: Y- clark airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Aluminum scale plate (included)
- Spinner size: scale type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard servo: 2 aileron; 2 flap;
1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery:
4.8-6V / 2000 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .61-.91 / 2-stroke glow engine or
15cc gas engine (not included)
Instruction Manual
- Motor: brushless outrunner 2200 W,
500 KV (not included)
- Gravity CG: 65-70 mm (2.5- 2.7 in) Back from
the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 11mm up/down,
10% expo; High: 13mm up/down, 10% expo
- Control throw Elevators: Low: 11mm up/down,
12% expo; High: 13mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left,
15% expo; High: 30mm right/left, 15% expo
- Control throw Flap: 15-20 mm down
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .80 (not included)
- Lipo cell: 6-10 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stinson Reliant and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix Model Stinson Reliant

Summary of Contents for Phoenix Model Stinson Reliant

  • Page 1 Instruction Manual SPECIFICATION - Wingspan: 1720mm (67.7in) - Length: 1338mm (52.6 in) - Motor: brushless outrunner 2200 W, - Flying weight: 4400-4800 g 500 KV (not included) - Wing area: 42,2 dm2 - Gravity CG: 65-70 mm (2.5- 2.7 in) Back from - Wing loading: 90g/dm2 the leading edge of the wing, at the fuselage - Wing type: Y- clark airfoils...

  • Page 2: Safety Precaution

    CENTERED before gluing! This will assure proper assembly. The STINSON RELIANT GP/EP SIZE .61-.91 or 15CC SCALE 1:7 ARF is hand made from natural materials, every plane is unique and minor adjustments may have to be made.
  • Page 3 Instruction Manual STINSON RELIANT To the cowl Remove the covering 3. Place the servo into the servo tray. Center the servo within the tray and drill 1,6mm pilot holes To the cowl through the block of wood for each of the four mounting screws provided with the servo.

  • Page 4: Installing The Aileron Linkages

    Instruction Manual STINSON RELIANT INSTALLING THE CONTROL HORNS for flap 4. Plug the aileron servo into the receiver and center the servo. Install the servo arm onto the Repeat step #1 - #3 from installing the control servo. The servo arm should be perpendicular...

  • Page 5: Horizontal Stabilizer Installation

    Instruction Manual STINSON RELIANT 3. Check the fit of the horizontal stabilizer in its slot. Make sure the horizontal stabilizer is square and centered to the fuselage by taking measurements, but don't glue anything yet. Installing The Wing To The Fuselage Attach the wings to the joiner tube and secure the wing to the fuselage.

  • Page 6: Tail Wheel Installation

    Instruction Manual STINSON RELIANT 6. When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the top and bottom of the stabilizer mounting area and to the stabilizer mounting platform sides in the fuselage.

  • Page 7: Installing The Wheel Pants

    Instruction Manual STINSON RELIANT C.A glue Remove the covering or silicone glue INSTALLING THE WHEEL PANTS 1. Locate the wheel pants from the hardware bag. Mark the locations of the mounting axles onto the wheel pants. The locations of the two...

  • Page 8: Engine Installation

    Instruction Manual STINSON RELIANT 16mm flat washer Screw 2. Place the engine into the engine mount and align it properly with the front of the cowling. The distance from the firewall to the front of the engine thrust washer should 125mm.

  • Page 9: Installing The Motor And Battery

    Instruction Manual STINSON RELIANT - OS 15cc GT INSTALLING THE MOTOR AND BATTERY Installing the electric motor This model can fly with electric, here is our recommended for set up the system. - Motor: RIMFIRE .80 (not included) - Lipo cell: 6-10 cells / 4000 – 5500mAh (not included)

  • Page 10: Installing The Elevator Pushrod

    Instruction Manual STINSON RELIANT When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. Glue a piece...
  • Page 11 Instruction Manual STINSON RELIANT Remove the covering Silicone 3. Working from inside the fuselage, slide the 8. Locate one nylon servo arm, and using wire threaded end of the pushrod until it reaches the cutters, remove all but one of the arms. Using a exit slot.

  • Page 12: Installing The Rudder Pushrod

    Instruction Manual STINSON RELIANT INSTALLING THE RUDDER PUSHROD 8. Locate one nylon servo arm, and using wire cutters, remove all but one of the arms using a 1. Locate the pushrod exit slot on the left of the 2mm drill bit, enlarge the third hole out from the fuselage.

  • Page 13: Mounting The Cowl

    Instruction Manual STINSON RELIANT 3. Slide the adjustable metal connector / servo arm assembly over the plain end of the pushrod wire. Position the throttle stick and the throttle trim at their lowest positions. Manually push the carburator barrel fully closed.

  • Page 14: Installing The Switch

    Instruction Manual STINSON RELIANT INSTALLING THE HORIZONTAL STRUT INSTALLING THE SWITCH 1. The switch should be mounted on the fuselage side, opposite the muffler, close enough to the receiver so the lead will reach. Use the face plate of the switch cut out and locate the mounting holes.

  • Page 15: Installing The Door

    Instruction Manual STINSON RELIANT - May be you have to trim the leg of the pilot figure. Open and close BALANCING Velcro 1. It is critical that your airplane be balanced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 16: Lateral Balance

    Elevator : 11mm up 11mm down We wish you many enjoyable flights with your Rudder : 20mm right 20mm left plane and once again thank you for your Flap : 15-20mm choosing a Phoenix Model's product. 11mm 11mm Aileron Control 11mm 11mm...
