Phoenix Model SPITFIRE Instruction Manual page 12

Arf
Hide thumbs Also See for SPITFIRE:
Table of Contents

Advertisement

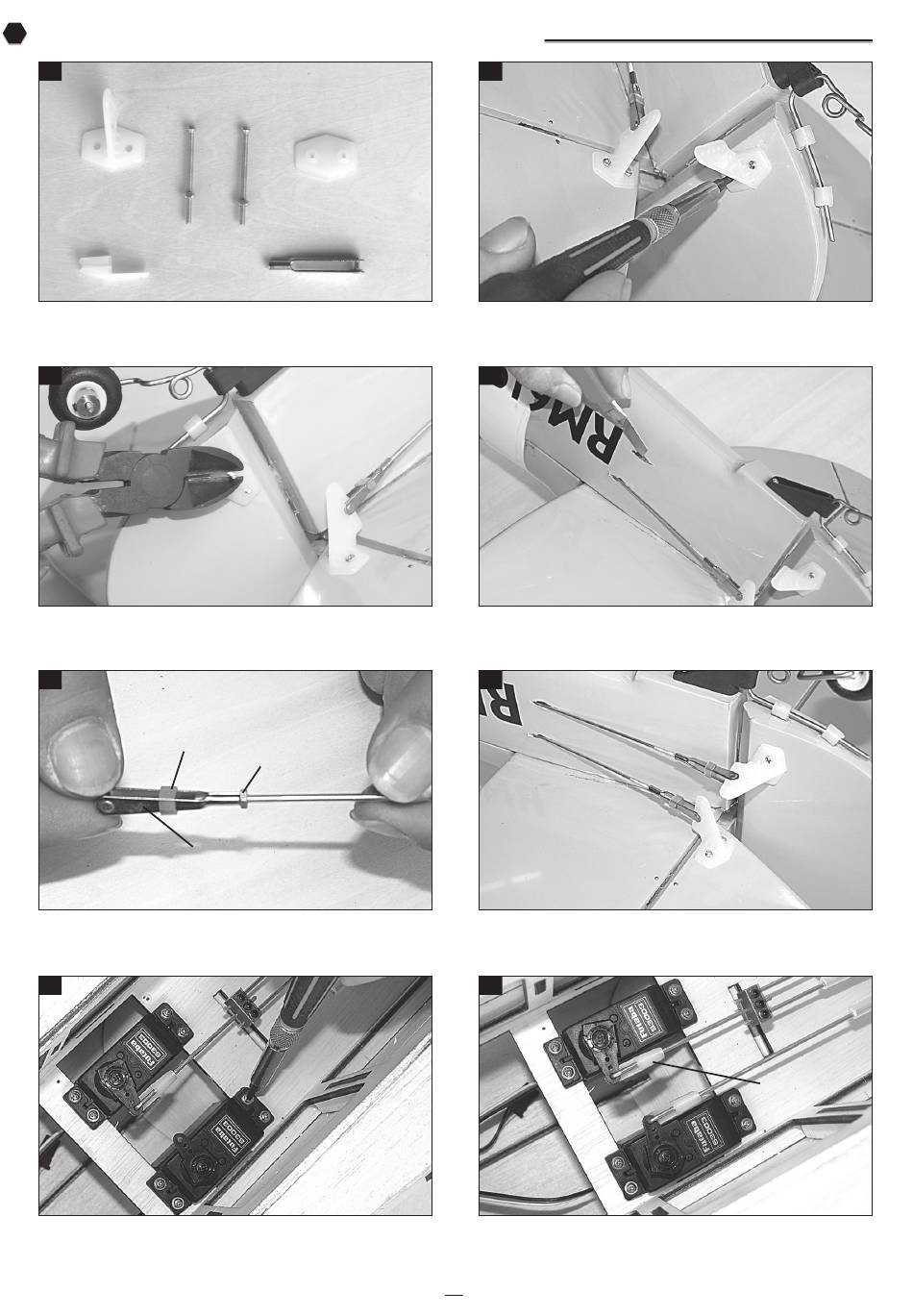

Installing the rudder pushrod and linkage.
8
65
The control horn of the rudder.
67
Cut away the screw if necessary.
69
Silicone tube
Metal clevis
Install the metal clevis.
71
Install the rudder servo into the fuselage.
Nut
66
Install the nylon control horn.
68
Remove the covering.
70
Attach the metal clevis to the control horn.
72
Connect the pushrod to the servo arm and secure it by
nylon clasp.
11
Nylon clasp
