USB OTG HS

The STM32MP157x-EV1 board supports USB OTG high speed communication via a USB Micro-AB connector
MB1262/CN16. OTG VBUS supply is managed by the STPMIC. MB1262/LD2 turns green when USB OTG
connection is established.
6.19.1

USB OTG interface

Table 27
describes the IO configuration for the USB OTG interface.
IO
PA10
UM2535 - Rev 1

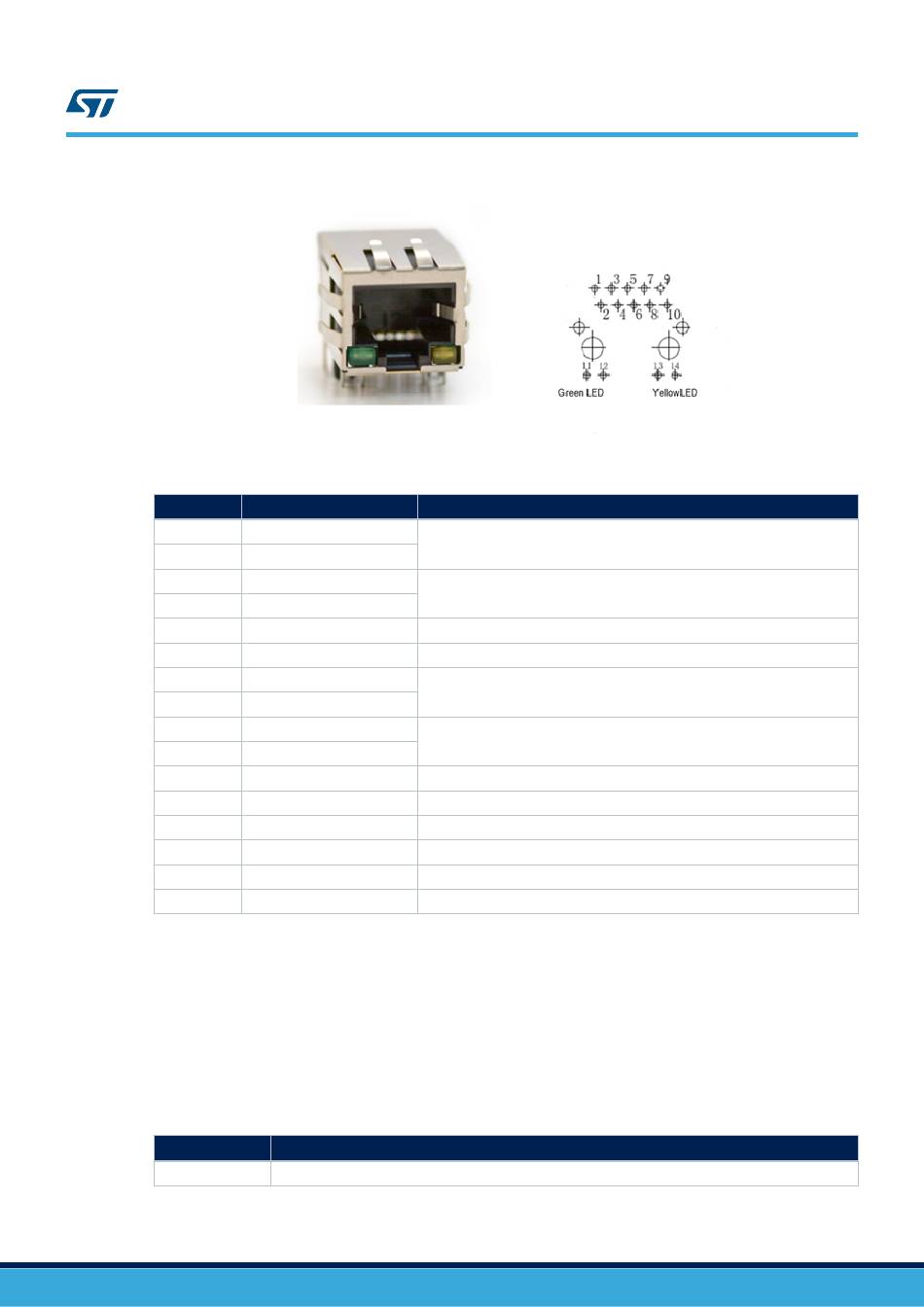

Figure 15.
Table 26.
Ethernet connector pinout MB1262/CN3
Pin name
TX1+
TX1-
TX2+
TX2-
CT1
CT2
TX3+
TX3-
TX4+
TX4-
GA
GC
YA
YC
GND
GND
Table 27.
IO configuration for the USB OTG interface
Configuration
OTG_ID line detection
Ethernet connector MB1262/CN3
First Bidirectional pair to transmit and receive data
Second Bidirectional pair to transmit and receive data
Common connected to GND
Common connected to GND
Third Bidirectional pair to transmit and receive data
Fourth Bidirectional pair to transmit and receive data
Green Led anode
Green Led cathode
Yellow Led anode
Yellow Led cathode
GND
GND
USB OTG HS
Function
UM2535
page 29/55
