A
Appendix A STM32MP157x-EV1 jumper summary
Figure 27
summarize the jumper default setting of the STM32MP157x-EV1.
MB1262/JP3[1-2]:FITTED
MB1263/JP6[-],
MB1263/JP7[-],
MB1263/JP8[-],
MB1263/JP9[-],
MB1263/JP10[-],
MB1263/JP11[-]:
NOT FITTED
MB1262/JP5[-]:
NOT FITTED
MB1262/JP7[1-2]:
FITTED
MB1230/W1[2-3]:
FITTED
UM2535 - Rev 1

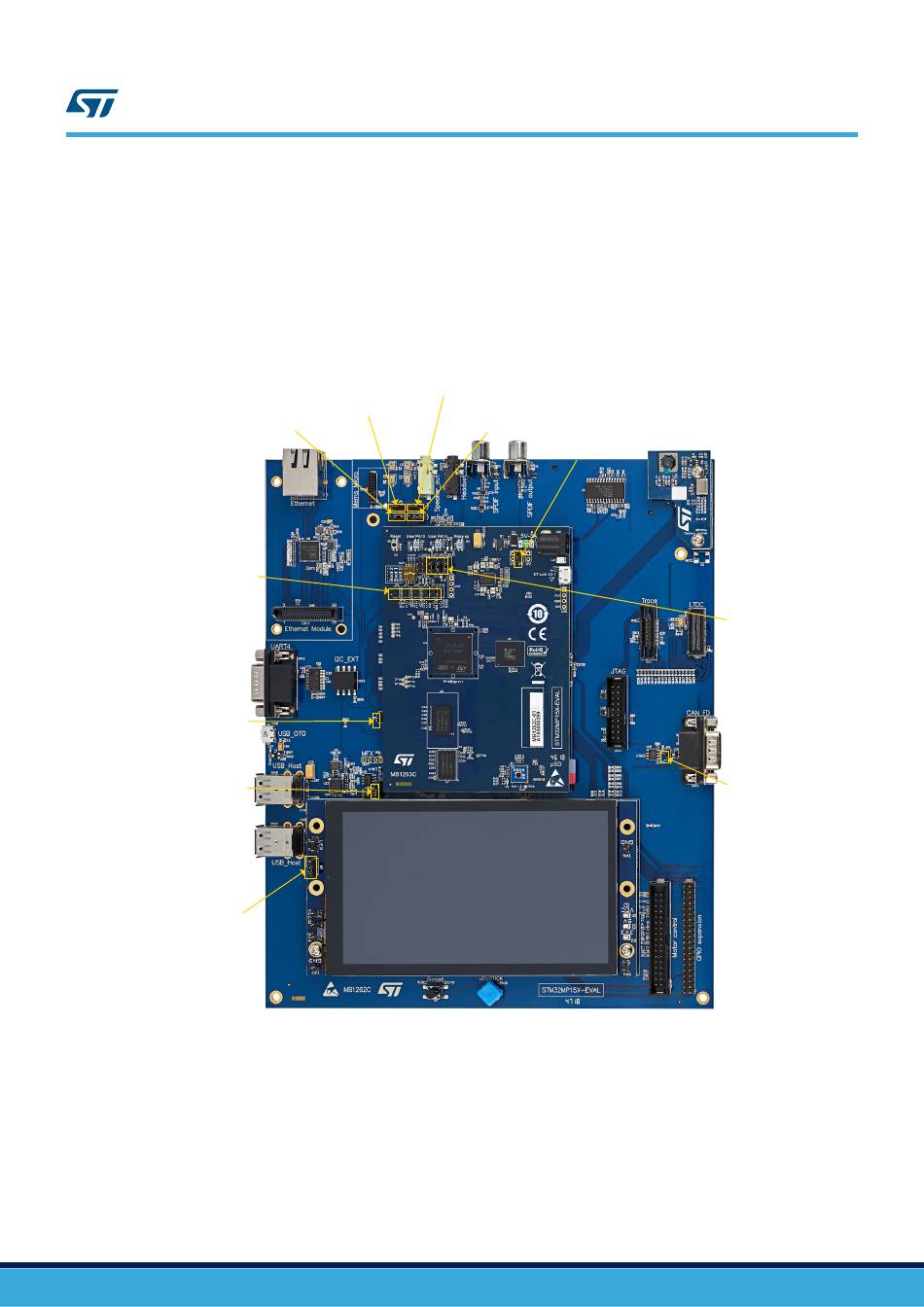

Figure 27.
Jumper default setting of the STM32MP157x-EV1
MB1262/JP2[2-3]:
FITTED
MB1262/JP1[2-3]:
FITTED
Appendix A STM32MP157x-EV1 jumper summary
MB1262/JP4[1-2]:FITTED
MB1263/JP1[-]: NOT FITTED
UM2535
MB1263/JP3[1-2],
MB1263/JP4[1-2],
MB1263/JP5[1-2]:
FITTED
MB1262/JP6[-]:
NOT FITTED
page 43/55
