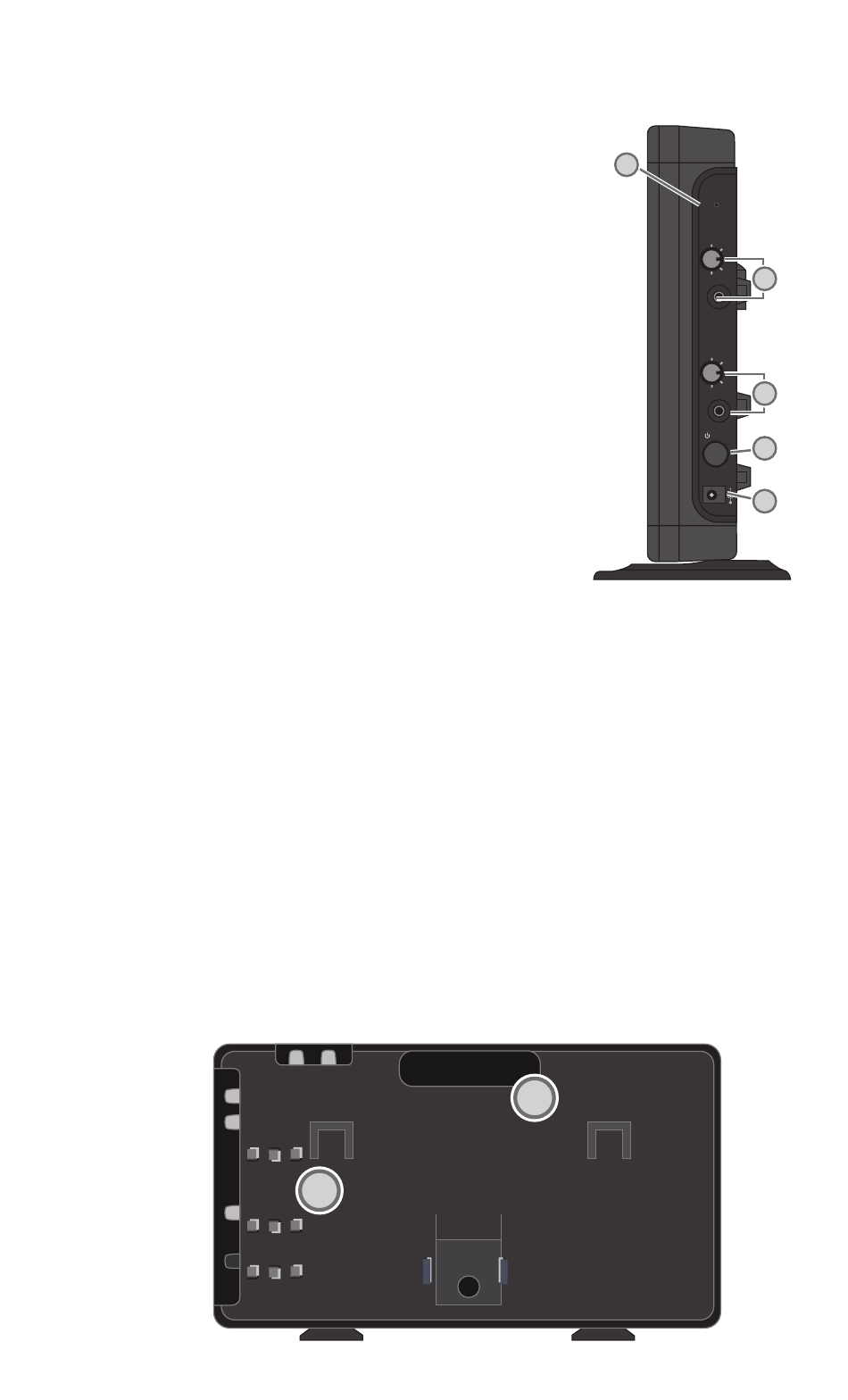

SIDE PANEL CONTROLS AND
CONNECTIONS
1. REGISTRATION: Press this button
if there is a new microphone to be
registered.
2.
AUDIO INPUT VOLUME CONTROL
& INPUT JACK:
connector for connecting
classroom audio sources to the
Redcat Access (RCA). Controls the
volume level of the audio input
from the connected audio source..
3.
AUDIO OUTPUT VOLUME CONTROL
& OUTPUT JACK:
connector for connecting to an
assisted listening device (ALD)
or to a computer for recording.
Controls the volume level of the
audio output.
4.
POWER SWITCH:
to turn the RCA on or off. The front
panel blue LED lights when power
is on
5.
DC POWER INPUT JACK:
power supply (16V/2.0A) into this
jack.

REAR PANEL CONTROLS AND CONNECTIONS

CARRYING INSET: Cutaway grip for moving or carrying
1.
the Redcat Access.
2. CABLE MANAGEMENT AND STRAIN RELIEF
3.5mm stereo
3.5mm stereo
This switch is used
Plug the
2
Testing Purposes Only
1
1
REGISTER
AUDIO IN
MIN
2
MAX
AUDIO
(ALD) OUT
MIN
3
MAX
ON/OFF
4
DC INPUT
16V/2.0A
5
