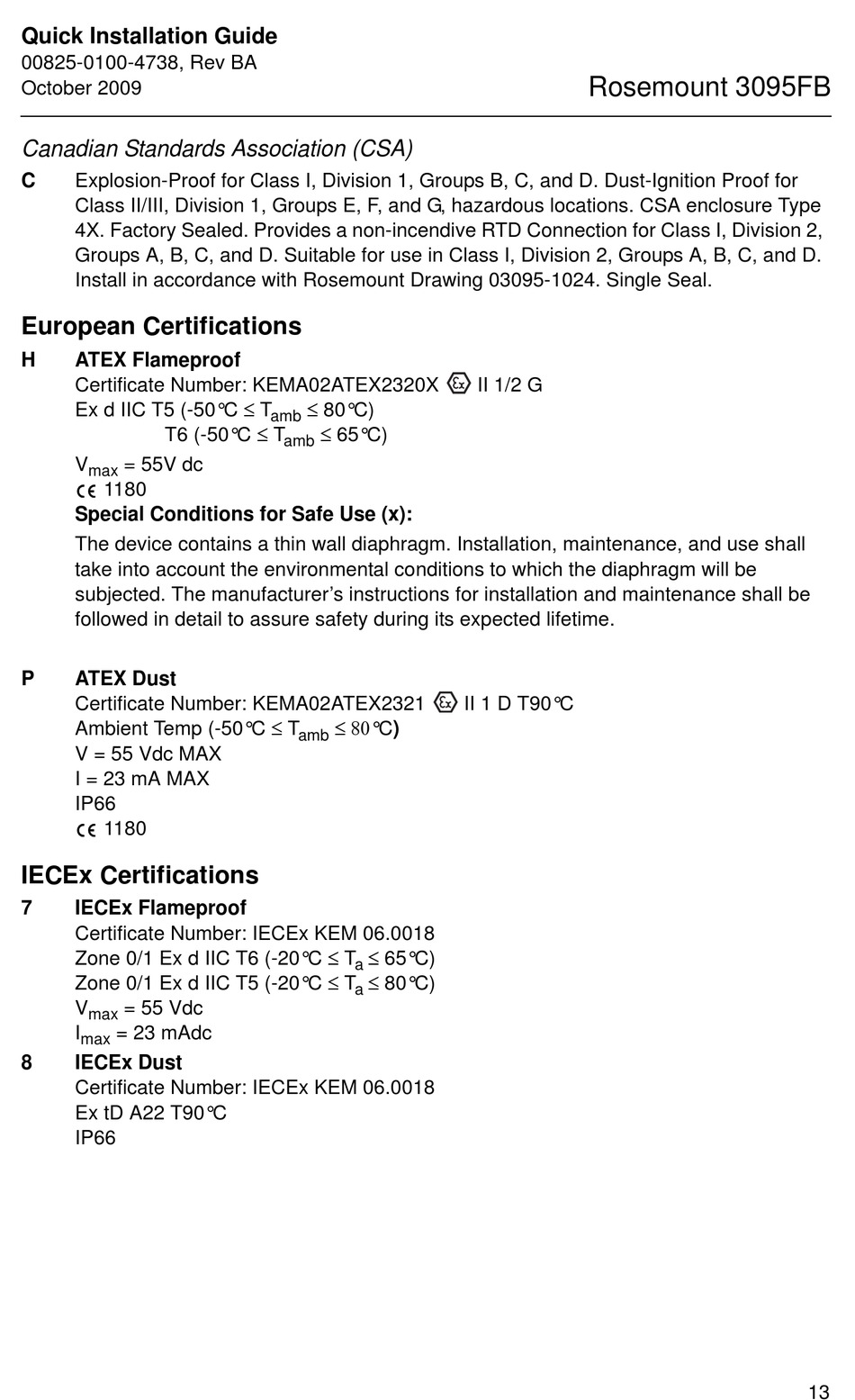

Quick Installation Guide
00825-0100-4738, Rev BA
October 2009
Canadian Standards Association (CSA)
C Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition Proof for
Class II/III, Division 1, Groups E, F, and G, hazardous locations. CSA enclosure Type
4X. Factory Sealed. Provides a non-incendive RTD Connection for Class I, Division 2,
Groups A, B, C, and D. Suitable for use in Class I, Division 2, Groups A, B, C, and D.
Install in accordance with Rosemount Drawing 03095-1024. Single Seal.

European Certifications

H ATEX Flameproof
Certificate Number: KEMA02ATEX2320X
Ex d IIC T5 (-50°C  T
T6 (-50°C  T
V = 55V dc
max
1180
Special Conditions for Safe Use (x):
The device contains a thin wall diaphragm. Installation, maintenance, and use shall
take into account the environmental conditions to which the diaphragm will be
subjected. The manufacturer's instructions for installation and maintenance shall be
followed in detail to assure safety during its expected lifetime.
P ATEX Dust
Certificate Number: KEMA02ATEX2321
Ambient Temp (-50°C  T
V = 55 Vdc MAX
I = 23 mA MAX
IP66
1180
IECEx Certifications
7 IECEx Flameproof
Certificate Number: IECEx KEM 06.0018
Zone 0/1 Ex d IIC T6 (-20°C  T
Zone 0/1 Ex d IIC T5 (-20°C  T
V = 55 Vdc
max
I = 23 mAdc
max
8 IECEx Dust
Certificate Number: IECEx KEM 06.0018
Ex tD A22 T90°C
IP66
 80°C)
amb
 65°C)
amb
°C)
amb
 65°C)
a
 80°C)
a
Rosemount 3095FB
II 1/2 G
II 1 D T90°C
13
