Rosemount 3095FB
S 2: C
TEP ONSIDER
Consider Housing Rotation
To improve field access or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. Rotate the housing clockwise to the desired position – up to 180° from its original position.
Over rotating will damage the transmitter.
3. If the desired position is attained, tighten the housing rotation set screw.
4. If the desired position cannot be reached because the housing will not rotate further,
rotate the housing counterclockwise until in the desired position is attained (up to 180°
from its original position).
5. Tighten the housing rotation set screw.
Field Installation
1. Mount the transmitter
a.Install the flange or flange/adapter bolt finger-tight.
b.Torque bolts to initial torque value using a cross pattern (see Table 1). When
installing to a mounting bracket, torque bolts to 125 in./lb (169 N/m)
Table 1. Torque Cross Pattern
Bolt Material
Carbon Steel (CS)
Stainless Steel (SST)
2. If security jumpers are not installed, the transmitter will operate normally with the default
security off. Verify baud rate. Default baud rate is 9600 with switch S1 and S2 in on
position. Verify AC termination, pull down (B), and pull up (A) switches; default is in the off
position.

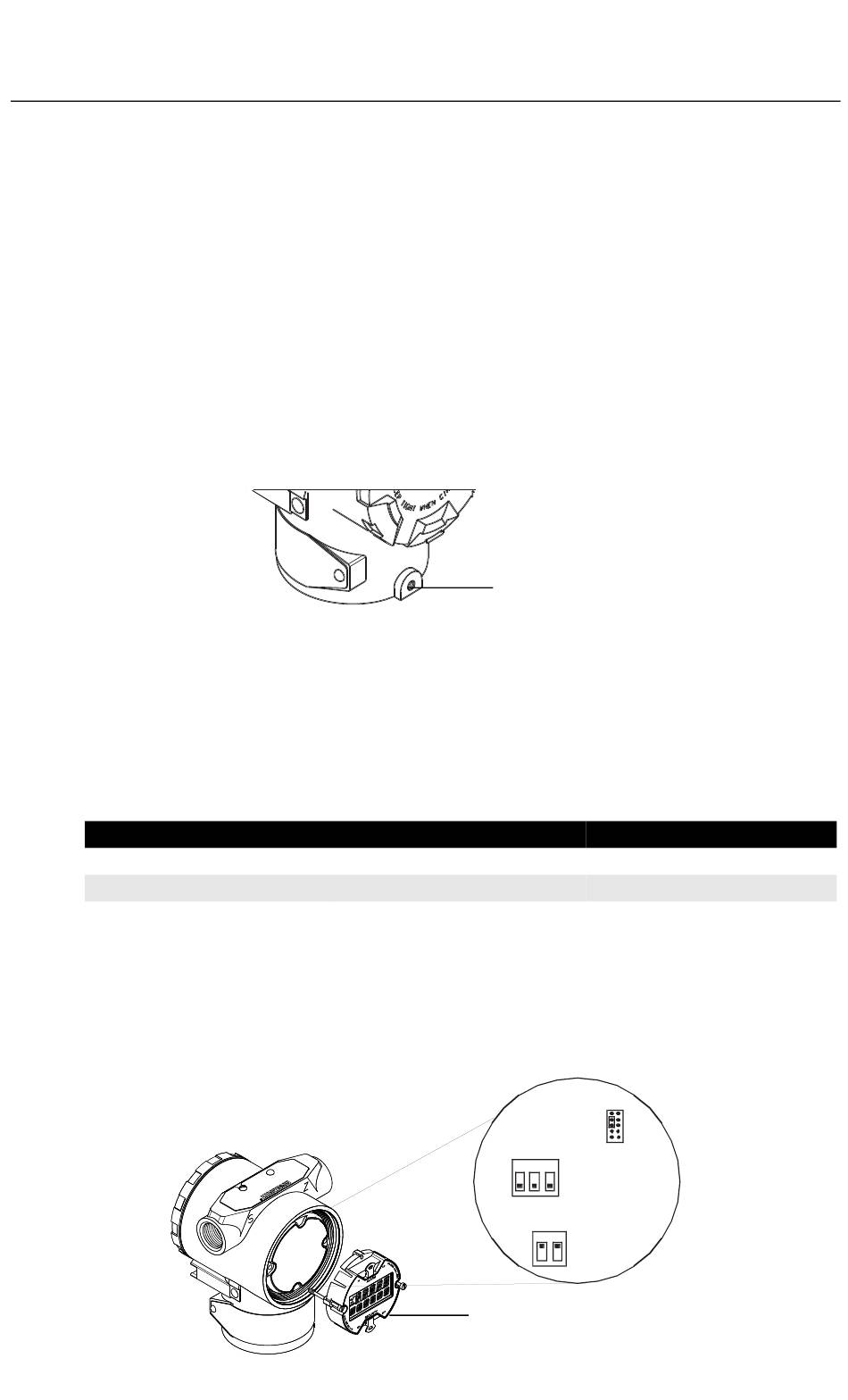

Figure 2. Transmitter Electronics Board and Optional LCD Display
4
H R
OUSING OTATION
Initial Value
300 in./lb (34 N/m)
150 in./lb (17 N/m)
Quick Installation Guide
00825-0100-4738, Rev BA
Housing Rotation Set
Screw (9/64-inch)
Final Value
650 in./lb (73 N/m)
300 in./lb (34 N/m)
OFF
<
SECURITY
ON
<
AC (B) (A)
ON
OFF
S1 S2
ON
OFF
Optional LCD Display
October 2009
Electronics
Board
