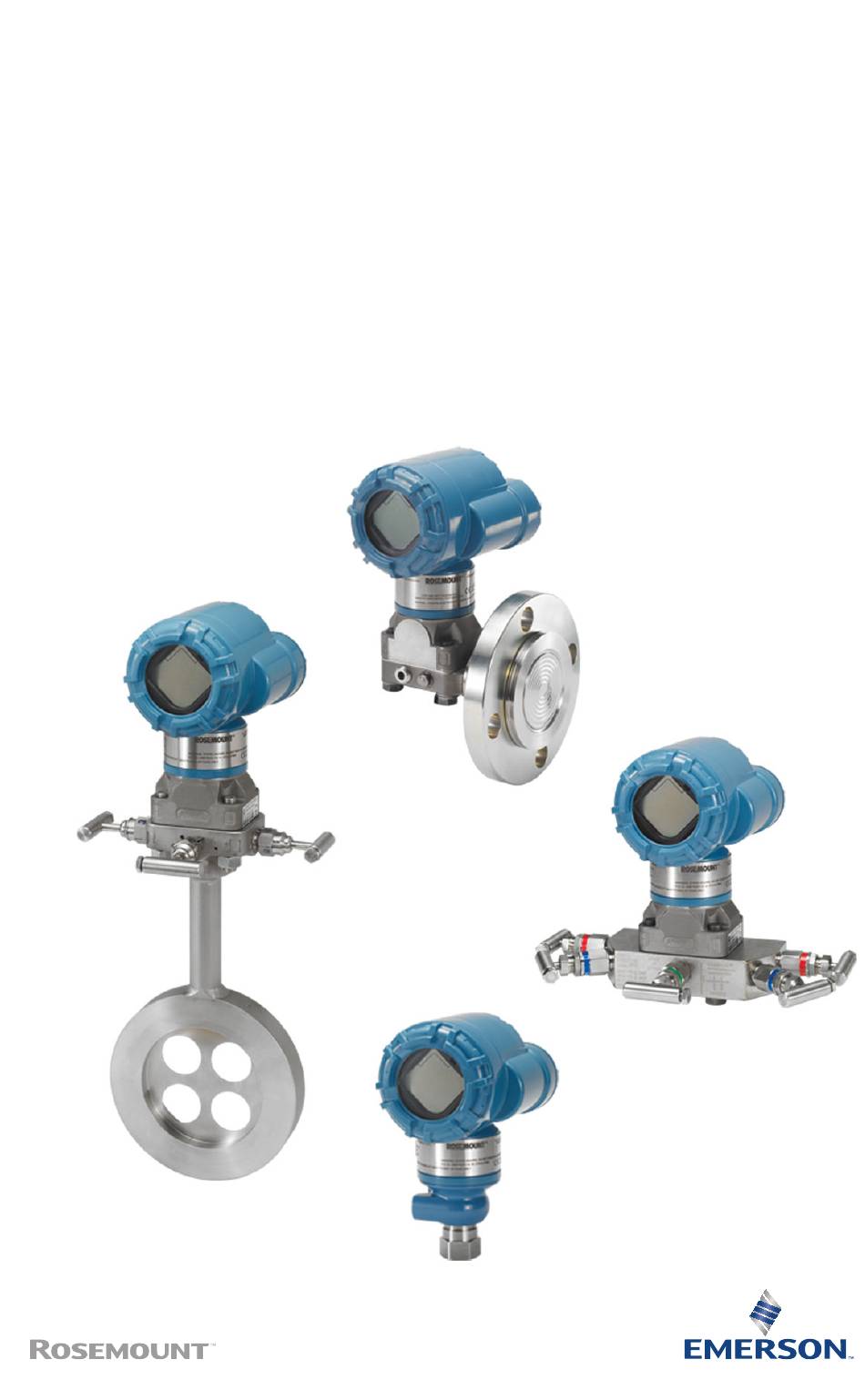

- Page 1 Quick Start Guide 00825-0100-4100, Rev DB February 2019 ™ Rosemount 3051 Pressure Transmitter and Rosemount 3051CF DP Flow Meters ® with WirelessHART Protocol...
- Page 2 Quick Start Guide February 2019 Safety Messages NOTICE This guide provides basic guidelines for Rosemount 3051 Wireless Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting or Intrinsically Safe (I.S.) installations. Refer to the Rosemount 3051 Wireless Reference Manual for more instruction.
-
Page 3: Wireless Considerations
Emerson Wireless Gateway Reference Manual. Connecting the transmitter with a Field Communicator In order for the Field Communicator to interface with the Rosemount 3051 Wireless transmitter, the power module must be connected. This transmitter uses the green power module (order model number 701PGNKF). -
Page 4: Transmitter Installation
Quick Start Guide February 2019 Transmitter installation Mount the transmitter Figure 2-1: Panel Mount Coplanar Flange 5/16 x 1½ panel bolts are customer supplied. Figure 2-2: Pipe Mount Coplanar Flange Emerson.com/Rosemount... - Page 5 February 2019 Quick Start Guide Figure 2-3: Panel Mount Traditional Flange Figure 2-4: Pipe Mount Traditional Flange ™ Figure 2-5: Panel Mount Rosemount 3051T Quick Start Guide...
- Page 6 Coplanar In-line Flow 2.1.2 Mount the transmitter in gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. Figure 2-8: Mounting the Transmitter in Gas Applications Coplanar Inline Emerson.com/Rosemount...
- Page 7 Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-10 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
- Page 8 Table 2-1. If bolt material is not shown in Table 2-1, contact a local Emerson representative for more information. Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.
- Page 9 February 2019 Quick Start Guide Example Table 2-1: Torque Values for the Coplanar Flange and Flange Adapter Bolts Bolt material Head markings Initial Final torque torque 300 in-lb 650 in-lb 150 in-lb 300 in-lb 2.1.5 In-line gage transmitter orientation The low side pressure port (atmospheric reference) on the in-line gage transmitter is located in the neck of the transmitter, behind the housing.
- Page 10 2. First rotate the housing clockwise to the desired location. If the desired location cannot be achieved due to thread limit, rotate the housing counter clockwise to the desired location (up to 360° from thread limit). 3. Re-tighten the housing rotation screw (see Figure 2-12). Emerson.com/Rosemount...
- Page 11 February 2019 Quick Start Guide Figure 2-12: Housing Rotation A. Housing rotation screw ( /64-in. hex wrench required) Connect the power module Procedure 1. Remove the power module cover. 2. Connect the green power module (see Figure 2-13). Figure 2-13: Power Module A.
- Page 12 A zero trim can be performed using either a Field Communicator or configuration buttons. For instructions using AMS Wireless Configurator, see the Rosemount 3051 Wireless Reference Manual. Note When performing a zero trim, ensure the equalization valve is open and all wet legs are filled to the correct level.
- Page 13 At the device via the Local Display (LCD display). • By using the Field Communicator. • Via the Emerson Wireless Gateway’s integrated web interface. • Via AMS Wireless Configurator. 2.5.1 Verify transmitter configuration using LCD display The LCD display will show the output values at the same rate as the wireless update rate.
- Page 14 Quick Start Guide February 2019 2.5.2 Verify transmitter configuration using Field Communicator For HART Wireless transmitter communication, a Rosemount 3051 Wireless device descriptor is required. For connecting with a Field Communicator, refer Figure 1-1. From the Home screen, enter the Fast Key sequence:...
- Page 15 February 2019 Quick Start Guide Note It may take several minutes for the device to join the network. See the Emerson Wireless Gateway Quick Start Guide for more information. Figure 2-15: Gateway Network Settings 2.5.4 Verifying configuration using AMS Wireless Configurator...
-
Page 16: Troubleshooting
ID and join key. Verify that active advertising has been enabled on the Emerson Wireless Gateway. The network ID and join key in the device must match the network ID and join key of the Gateway. -
Page 17: Product Certifications
RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 18 IS CL I, DIV 1, GP A, B, C, D T4; CL 1, Zone 0 AEx ia IIC T4; T4(–40 °C ≤ Ta ≤ +70 °C) when installed per Rosemount drawing 03031-1062; Type 4X/IP66/IP68 Special Conditions for Safe Use (X): 1. The Rosemount 3051 Wireless Pressure Transmitter shall only be used ™ with the 701PGNKF Rosemount SmartPower Battery Pack.
- Page 19 February 2019 Quick Start Guide 4.5.3 Europe I1 ATEX Intrinsic Safety Certificate: Baseefa12ATEX0228X Standards: EN 60079-0:2012, EN 60079-11:2012 Markings: II 1 G Ex ia IIC T4 Ga, T4(–40 °C ≤ T ≤ +70 °C); IP66/IP68 Special Conditions for Safe Use (X): 1.
- Page 20 0Ex ia IIC T4 Ga X; (–40 °C ≤ T ≤ +70 °C) Special Conditions for Safe Use (X): 1. See certificate for special conditions. 4.5.9 Korea IP Korea Intrinsic Safety Certificate: 13-KB4BO-0295X Markings: Ex ia IIC T4 (–40 °C ≤ T ≤ +70 °C) Emerson.com/Rosemount...
- Page 21 February 2019 Quick Start Guide Special Conditions for Safe Use (X): 1. See certificate for special conditions. Quick Start Guide...
- Page 22 No: RMD 1017 Rev. AC Rosemount, Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Rosemount 3051 Pressure Transmitters manufactured by, Rosemount, Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 to which this declaration relates, is in conformity with the provisions of the European Union Directives, including the latest amendments, as shown in the attached schedule.
- Page 23 QS Certificate of Assessment - Certificate No. 12698-2018-CE-USA-ACCREDIA Module H Conformity Assessment Other Standards Used: ANSI/ISA61010-1:2004 Note – previous PED Certificate No. 59552-2009-CE-HOU-DNV All other Rosemount 3051 Pressure Transmitters Sound Engineering Practice Transmitter Attachments: Diaphragm Seal, Process Flange, or Manifold Sound Engineering Practice...
- Page 24 Ex ta IIIC T95°C T 105°C Da Harmonized Standards Used: EN60079-0:2012 + A11:2013, EN60079-31:2014 KEMA00ATEX2013X - Flameproof Equipment Group II Category 1/2 G Ex db IIC T6…T4 Ga/Gb Harmonized Standards Used: EN60079-0:2012 + A11:2013, EN60079-1:2014, EN60079-26:2015 Page 3 of 4 Emerson.com/Rosemount...
- Page 25 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1017 Rev. AC PED Notified Body DNV GL Business Assurance Italia S.r.l. [Notified Body Number: 0496] Via Energy Park, 14, N-20871 Vimercate (MB), Italy Note – equipment manufactured prior to 20 October 2018 may be marked with the previous PED Notified Body number;...
- Page 26 Quick Start Guide February 2019 Emerson.com/Rosemount...
- Page 27 February 2019 Quick Start Guide Quick Start Guide...
- Page 28 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
