Quick Installation Guide
00825-0100-4802, Rev BA
June 2007

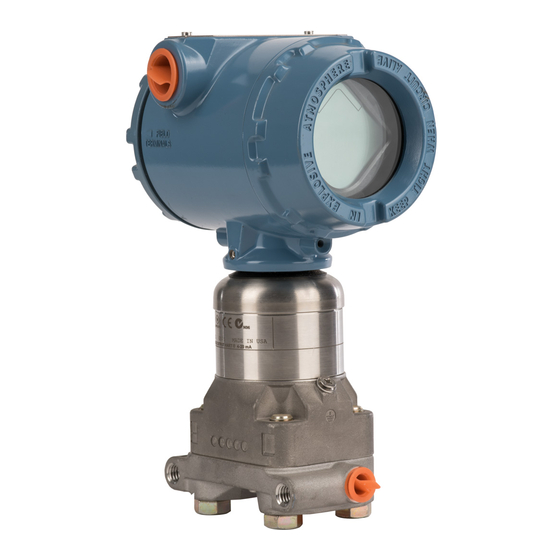

Rosemount 3051S Series Pressure Transmitter with
Wireless Enabled HART
Rosemount 3051SF Series Flowmeter Transmitter
with Wireless Enabled HART
Product Discontinued. Click here for the new WirelessHART document.
www.rosemount.com
¢00825-0100-4809[¤
®
Step 1: Mou
nt the Transmitter
Step 2: Connect the Battery
Step 3: Trim the Transmitter
Step 4: Verify Operation
Step 5: Reference Information
Product Certifications
Rosemount 3051S Wireless
Solutions
®
Solutions
Start
End

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3051S Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson Rosemount 3051S Series

  • Page 1 Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 Rosemount 3051S Series Pressure Transmitter with ® Wireless Enabled HART Solutions Rosemount 3051SF Series Flowmeter Transmitter ® with Wireless Enabled HART Solutions Product Discontinued. Click here for the new WirelessHART document.
  • Page 2: Important Notice

    June 2007 © 2007 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc. Rosemount Inc. Emerson Process Management 8200 Market Boulevard GmbH & Co. OHG Chanhassen, MN USA 55317...
  • Page 3: Step 1: Mount The Transmitter

    Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 1: M OUNT THE RANSMITTER Liquid Flow Applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward.
  • Page 4 Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 CONTINUED Panel Mount Pipe Mount ™ Coplanar Flange Product Discontinued. Click here for the new WirelessHART document. Traditional Flange In-line NOTE: Position the antenna such that it is VERTICAL, either straight up or straight down.
  • Page 5: Step 2: Connect The Battery

    Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 2: C ONNECT THE ATTERY Connect the battery pack. Product Discontinued. Click here for the new WirelessHART document. NOTE: Wireless devices should be powered up in order of proximity from the 1420 Wireless Gateway, beginning with the closest device to the 1420.
  • Page 6: Close The Housing

    Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 CONTINUED Zero Trim A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. When performing a zero trim, ensure that the equalizing valve is open and all wet legs are filled to the correct level.
  • Page 7: Step 4: Verify Operation

    Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 4: V ERIFY PERATION Operation can be verified in four locations: at the device via the LCD, by using the 375 Field Communicator, at the Gateway via the 1420 Wireless Gateway’s integrated web server, or ™...
  • Page 8 Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 Figure 2. 1420 Network Settings Product Discontinued. Click here for the new WirelessHART document. ™ Suite: Intelligent Device Manager When the device has joined the network, it will appear in the Device Manager as illustrated below.
  • Page 9: Troubleshooting

    Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 Troubleshooting If the device is not operating properly, refer to the troubleshooting section of the manual. The most common cause of incorrect operation is the Network ID and Join Key. The Network ID and Join Key in the device must match that of the 1420 Wireless Gateway.
  • Page 10 Quick Installation Guide 00825-0100-4802, Rev BA Rosemount 3051S Wireless June 2007 5: R EFERENCE NFORMATION Figure 3. Terminal Diagram Product Discontinued. Click here for the new WirelessHART document. P/N 00753-9200-0010 COMM NOTE: In order to communicate with a 375 Field Communicator, the device must be powered by connecting the battery pack.
  • Page 11: Product Certifications

    RF spectrum. Nearly every country requires this type of product certification. Product Discontinued. Click here for the new WirelessHART document. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 12: European Directive Information

    June 2007 European Directive Information The EC declaration of conformity for all applicable European directives for this product can be found at www.rosemount.com. A hard copy may be obtained by contacting an Emerson Process Management representative. ATEX Directive (94/9/EC) Emerson Process Management complies with the ATEX Directive.
