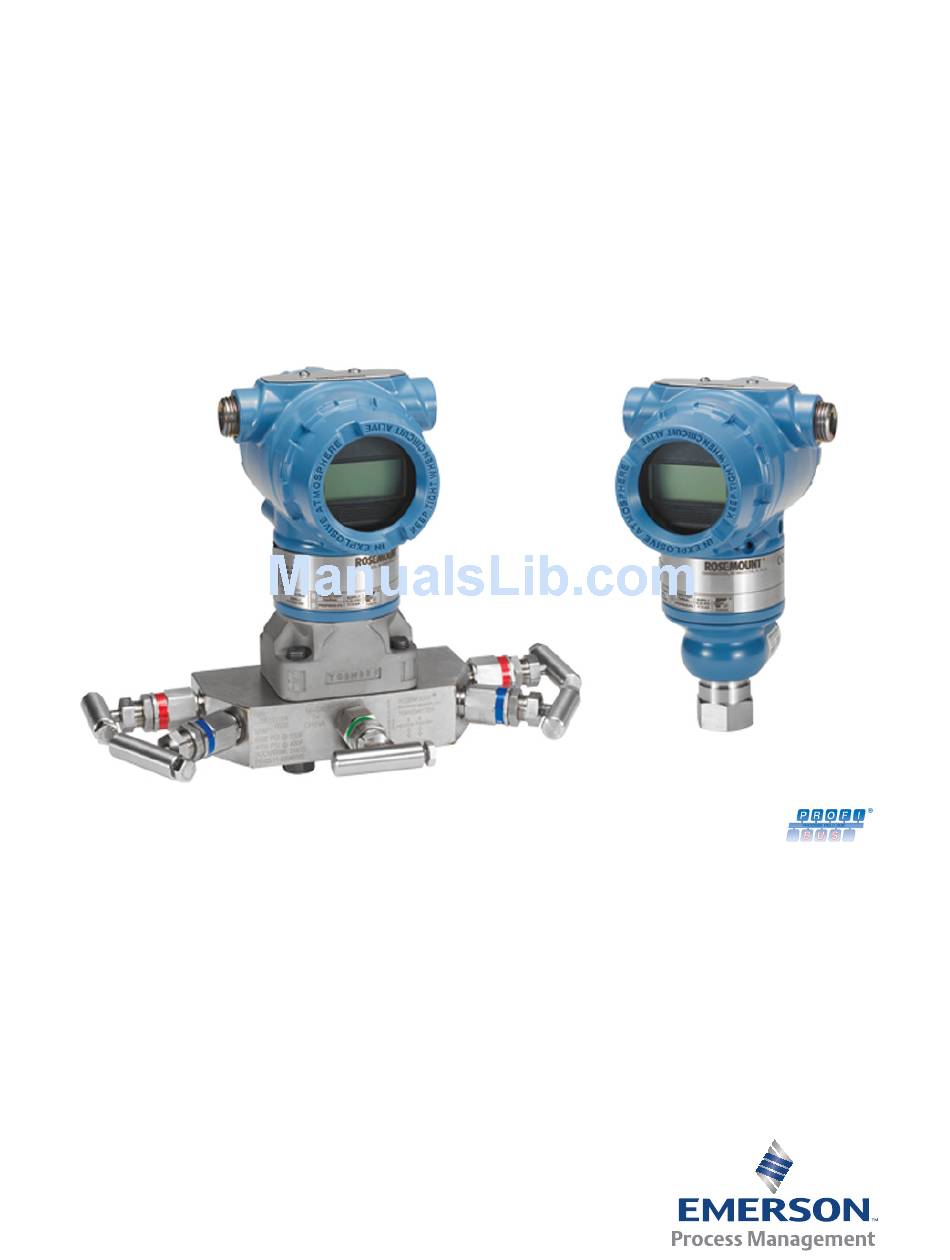

Page 1 Reference Manual 00809-0100-4797, Rev DA August 2016 ™ Rosemount 3051 Pressure Transmitter ® with PROFIBUS PA Protocol...
Page 3: Table Of Contents
Reference Manual Table of Contents 00809-0100-4797, Rev DA August 2016 Contents 1Section 1: Introduction Using this manual............1 Models covered .
Page 4 Reference Manual Table of Contents 00809-0100-4797, Rev DA August 2016 Installation procedures ..........14 3.4.1 Mount the transmitter .
Page 5 Reference Manual Table of Contents 00809-0100-4797, Rev DA August 2016 Sensor trim ............44 Recall factory trim .
Page 6 Reference Manual Table of Contents 00809-0100-4797, Rev DA August 2016 A.1.12 Electromagnetic compatibility (EMC) ......60 A.1.13 Transient protection (option code T1) .
Page 7 Additional certifications ........145 Rosemount 3051 Wireless Pressure Transmitter ......146 B.2.1...
Page 8 Reference Manual Table of Contents 00809-0100-4797, Rev DA August 2016 CAppendix C: Local Operator Interface (LOI) Menu Overview ............175 Safety messages .
Page 9 The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings. For information on Rosemount nuclear-qualified products, contact your local Emerson Process Management Sales Representative. Explosions could result in death or serious injury.
Page 10 Reference Manual Title Page 00809-0100-4797, Rev DA August 2016 Title Page...
Page 11: Using This Manual
Appendix D: PROFIBUS® Block Information contains PROFIBUS block and parameter information. Models covered The following Rosemount 3051 Pressure Transmitters are covered by this manual: ™ Rosemount 3051C Coplanar Pressure Transmitter  Rosemount 3051CD Differential Pressure Transmitter ...
Page 12: Device Revisions
Piezoresistive sensor technology is utilized in the Rosemount 3051T and 3051CA measurements. The major components of the Rosemount 3051 are the sensor module and the electronics housing. The sensor module contains the oil filled sensor system (isolating diaphragms, oil fill system, and sensor) and the sensor electronics.
Page 13: Section Overview
Reference Manual Configuration 00809-0100-4797, Rev DA August 2016 Section 2 Configuration Section overview ............page 3 Safety messages .
Page 14: Hazardous Locations Certifications
Configuration guidelines The Rosemount 3051 can be configured either before or after installation. Configuring the transmitter on the bench using the LOI or class two master ensures that all transmitter components are in working order prior to installation.
Page 15: Configuration Tools
2.5.1 Assign address The Rosemount 3051 is shipped with a temporary address of 126. This must be changed to a unique value between 0 and 125 in order to establish communication with the class one master. Usually, addresses 0–2 are reserved for masters, therefore transmitter addresses between 3 and 125 are recommended for the device.
Page 16 Reference Manual Configuration 00809-0100-4797, Rev DA August 2016 Each of these parameters can be set using, LOI – see Table 2-1 Figure 2-2  Class two master – see Pressure configuration using class two master  Pressure unit parameters The LOI was designed to automatically set the following parameters when selecting a Pressure Unit: Measurement type: Pressure ...
Page 17: Detailed Setup Tasks
From the Basic Setup >> Units >> Output Signal (Analog Input Block) >> Characterization Type dropdown, select No Linearization. Detailed setup tasks The following tasks explain how to configure the Rosemount 3051 for Flow or Level measurement and how to configure additional parameters found in the device. 2.6.1 Flow configuration To configure the Rosemount 3051 for Flow measurement with the LOI, select UNITS >>...
Page 18: Class Two Master
Reference Manual Configuration 00809-0100-4797, Rev DA August 2016 Note The LOI assumes a zero based scaling (minimum pressure = minimum flow = zero) for Flow applications in order to improve configuration efficiency. Class two masters can be used if non-zero based scaling is required. Low flow cutoff has a default value of 5.0%. Low Flow cutoff can be set to 0% if required.
Page 19: Level Configuration
6. Verify all parameters have written to the device correctly. 2.6.2 Level configuration To configure the Rosemount 3051 for Level measurement with the LOI, select UNITS >> LEVEL. When configuring Level units, the following parameters are set: Measurement type: Level ...
Page 20: Damping
2.6.3 Damping User-selected damping will affect the transmitters ability to respond to changes in the applied process. The Rosemount 3051 has a default damping value of 0.0 seconds applied in the analog input (AI) block. Damping can be set using, LOI –...
Page 21: Lcd Display
2.6.6 Security The Rosemount 3051 has a hierarchy of security features. The security jumper on the electronics board (or optional LCD display) provides the highest level of security. With the jumper in the ON position, all writes to the transmitter will be disabled (including writes from the LOI or a class two master).
Page 22: Loi Security
Simulation is in the Al Block and used to verify the output from the Transducer Block. The Rosemount 3051 has a simulation jumper located on the electronics board (or optional LCD display) that must be set to the ON position in order to simulate.
Page 23: Section Overview
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Section 3 Hardware Installation Section overview ............page 13 Safety messages .
Page 24: Mechanical Considerations
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Important Install the enclosed pipe plug (found in the box) in unused conduit opening. Engage a minimum of five threads to comply with explosion-proof requirements. Use a minimum of five threads engaged to comply with explosion-proof requirements. See “Conduit entry threads”...
Page 25 Always ensure a proper seal by installing electronics housing cover(s) so that metal contacts metal. Use Rosemount O-rings. Mounting brackets Rosemount 3051 may be panel-mounted or pipe-mounted through an optional mounting bracket. Refer to Table 3-1 for the complete offering and see...
Page 26 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Table 3-1. Mounting Brackets Process connections Mounting Materials Option Flat Pipe Panel code Coplanar In-line Traditional Panel mount mount bracket bracket bolts bolts mount Figure 3-2. Mounting Bracket Option Code B4 2.8 (71) 3.4 (85) –16...
Page 27 2.81 (71) Dimensions are in inches (millimeters). Flange bolts The Rosemount 3051 can be shipped with a coplanar flange or a traditional flange installed with four 1.75-in. flange bolts. Mounting bolts and bolting configurations for the coplanar ™ and traditional flanges can be found on page 19.
Page 28 00809-0100-4797, Rev DA August 2016 Bolt installation Only use bolts supplied with the Rosemount 3051 or sold by Emerson as spare parts for the Rosemount 3051 Transmitter. Use the following bolt installation procedure: 1. Finger-tighten the bolts. 2. Torque the bolts to the initial torque value using a crossing pattern (see Table 3-2 torque values).
Page 29: Impulse Piping
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Figure 3-7. Mounting Bolts and Bolt Configurations for Coplanar Flange Transmitter with Transmitter with flange adapters and flange bolts flange/adapter bolts 1.75 (44) × 4 2.88 (73) × 4 Dimensions are in inches (millimeters). Description Size (in.
Page 30 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Steam flow measurement Place taps to the side of the line.  Mount the transmitter below the taps to ensure that the impulse piping will stay filled  with condensate. In steam service above 250 °F (121 °C), fill impulse lines with water to prevent steam from ...
Page 31: Process Connections
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 When using a sealing fluid, fill both piping legs to the same level.  When purging, make the purge connection close to the process taps and purge through  equal lengths of the same size pipe. Avoid purging through the transmitter. Keep corrosive or hot (above 250 °F [121 °C]) process material out of direct contact with ...
Page 32: In-Line Process Connection
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 O-rings The two styles of Rosemount flange adapters (Rosemount 1151 and Rosemount 3051S/3051/2051) each require a unique O-ring. Use only the O-ring designed for the corresponding flange adapter. Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury.
Page 33: Rosemount 305, 306 And 304 Manifolds
3.5.1 Rosemount 305 Integral Manifold installation procedure To install a Rosemount 305 Integral Manifold to a Rosemount 3051 Transmitter: 1. Inspect the PTFE sensor module O-rings. Undamaged O-rings may be reused. If the O-rings are damaged (if they have nicks or cuts, for example), replace with O-rings designed for Rosemount transmitter.
Page 34: Rosemount 306 Integral Manifold Installation Procedure
3.5.3 Rosemount 304 Conventional Manifold installation procedure To install a Rosemount 304 Conventional Manifold to a Rosemount 3051 Transmitter: 1. Align the conventional manifold with the transmitter flange. Use the four manifold bolts for alignment. 2. Finger tighten the bolts, then tighten the bolts incrementally in a cross pattern to final torque value.
Page 35 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 1. To zero trim the transmitter, close the isolate valve on the low side (downstream) side of the transmitter. Drain/Vent Drain/Vent valve valve Equalize (closed) Isolate Isolate (open) (closed) Process 2. Open the equalize valve to equalize the pressure on both sides of the transmitter.
Page 36 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 5-valve natural gas manifold Performing zero trim at static line pressure 5-valve natural gas configurations shown: In normal operation, the two isolate (block) valves between the process ports and transmitter will be open, and the equalize valves will be closed.
Page 37 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 4. After performing a zero trim on the transmitter, close the equalize valve on the low pressure (downstream) side of the transmitter. (Plugged) (Plugged) Equalize Equalize (open) (closed) Isolate Isolate (open) (closed) Process Drain vent...
Page 38 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 1. To isolate the transmitter, close the isolate valve. Transmitter Vent (closed) Isolate Process (closed) 2. To bring the transmitter to atmospheric pressure, Transmitter open the vent valve or bleed screw. Note Vent (open)
Page 39: Liquid Level Measurement
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Adjusting valve packing Over time, the packing material inside a Rosemount manifold may require adjustment in order to continue to provide proper pressure retention. Not all Rosemount manifolds have this adjustment capability. The Rosemount manifold model number will indicate what type of stem seal or packing material has been used.
Page 40: Open Vessels
Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 3.6.1 Open vessels A pressure transmitter mounted near a tank bottom measures the pressure of the liquid above. Make a connection to the high pressure side of the transmitter, and vent the low pressure side to the atmosphere.
Page 41 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Wet leg condition Condensation of the gas above the liquid slowly causes the low side of the transmitter piping to fill with liquid. The pipe is purposely filled with a convenient reference fluid to eliminate this potential error.
Page 42 Reference Manual Hardware Installation 00809-0100-4797, Rev DA August 2016 Bubbler system in open vessel A bubbler system that has a top-mounted pressure transmitter can be used in open vessels. This system consists of an air supply, pressure regulator, constant flow meter, pressure transmitter, and a tube that extends down into the vessel.
Page 43: Section Overview
Reference Manual Electrical Installation 00809-0100-4797, Rev DA August 2016 Section 4 Electrical Installation Section overview ............page 33 Safety messages .
Page 44: Lcd Display
00809-0100-4797, Rev DA August 2016 LCD display Transmitters ordered with the LCD display option (M5) are shipped with the display installed. Installing the display on an existing Rosemount 3051 requires a small instrument screwdriver. Figure 4-1. LCD Display A. Interconnecting pins C.
Page 45: Simulate
August 2016 4.5.2 Simulate The Rosemount 3051 has a simulate jumper located on the electronics board (or optional LCD display) that must be set to the ON position in order to activate simulate mode using a class two master. Section 2: Configuration for details on Simulate mode.
Page 46: Wiring
6. If applicable, install wiring with a drip loop. See Figure 4-3. 7. Replace the housing cover. Figure 4-4. Rosemount 3051 PROFIBUS Terminal Block A. Power terminals B. Ground terminal Note: “NC” is a No Connect terminal (do not use).
Page 47: Signal Wiring Grounding
Reference Manual Electrical Installation 00809-0100-4797, Rev DA August 2016 Figure 4-5. Basic PROFIBUS PA System Configuration A. 6234 ft (1900 m) max (depending upon cable characteristics) F. Trunk B. Integrated power conditioner and filter G. DP network C. Terminators H. Signal wiring D.
Page 48: Transient Protection Terminal Block
The transient protection terminal block can be ordered as an installed option (Option Code T1 in the transmitter model number) or as a spare part to retrofit existing Rosemount 3051 Transmitters in the field. See “Spare parts”...
Page 49: Grounding
Internal ground connection: The internal ground connection screw is inside the FIELD  TERMINALS side of the electronics housing. This screw is identified by a ground symbol ). The ground connection screw is standard on all Rosemount 3051 Transmitters. Refer to Figure 4-4.
Page 50 Reference Manual Electrical Installation 00809-0100-4797, Rev DA August 2016 Electrical Installation...
Page 51: Section Overview
Reference Manual Calibration 00809-0100-4797, Rev DA August 2016 Section 5 Calibration Section overview ............page 41 Safety messages .
Page 52: Calibration Overview
– in order to optimize performance over a specific pressure range. Note The Rosemount 3051 has been carefully calibrated at the factory. Trimming adjusts the position of the factory characterization curve. It is possible to degrade performance of the transmitter if any trim is done improperly or with inaccurate equipment.
Page 53: Determining Calibration Frequency
Reference Manual Calibration 00809-0100-4797, Rev DA August 2016 Determining calibration frequency Calibration frequency can vary greatly depending on the application, performance requirements, and process conditions. Use the following procedure to determine calibration frequency that meets the needs of your application: 1.
Page 54: Zero Trim
Reference Manual Calibration 00809-0100-4797, Rev DA August 2016 Zero trim Note The transmitter PV at zero pressure must be within 10% x Upper Sensor Limit (USL) of zero in order to calibrate using the zero trim function. 1. Enter Calibration >> Zero menu. a.
Page 55: Recall Factory Trim
Compensating for line pressure 5.8.1 Range 2 and 3 The following specifications show the static pressure effect for the Rosemount 3051 Range 2 and 3 Pressure Transmitters used in differential pressure applications where line pressure exceeds 2000 psi (138 bar).
Page 56: Range 4 And Range 5
Applying high static pressure to Rosemount 3051 Range 4 and 5 Pressure Transmitters causes a systematic shift in the output. This shift is linear with static pressure; correct it by performing the “Sensor trim”...
Page 57: Section Overview
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Section 6 Troubleshooting Section overview ............page 47 Diagnostics identification and recommended action .
Page 58: Service Support
Diagnostics identification and recommended action The Rosemount 3051 PROFIBUS device diagnostics can be used to warn a user about a potential transmitter error. There is a transmitter error if the output status reads anything but Good or Good - Function Check, or the LCD display reads SNSR or ELECT. Use...
Page 59: Extended Diagnostics Identification With Class One Master
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Table 6-1. Diagnostics Identification and Recommended Action Diagnostics How to identify What to do Class one or Class two master two master Diagnostic Recommended action condition Physical block Primary Temperature diagnostic value status extension status...
Page 60 Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Figure 6-2. Diagnoses and Extended Diagnoses Bit Identification ( 1 ) Diagnosis Byte 1 Byte 2 Unit_Diag_Bit Byte 3 Byte 4 Extended Diagnosis Byte 1 Byte 2 Unit_Diag_Bit Byte 3 Unit_Diag_Bit is located in GSD file. Table 6-2.
Page 61: Plantweb ™ And Ne107 Diagnostics
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Diagnostic Unit_Diag_Bit Diagnostic description extension Byte-Bit Non-Volatile Memory Integrity Error Hardware/Software Incompatible Manufacturing Block Integrity Error Sensor Transducer Block Error LOI Button Malfunction is detected Unit_Diag_Bit is located in GSD file. ™ PlantWeb and NE107 diagnostics Table 6-4...
Page 62 Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Table 6-5. Alert Messages Output status Diagnostic LCD display (based on fail safe type) Use last good Use wrong LCD display Name Use fail safe value value calculated value status Bad, process Pressure Uncertain, Uncertain,...
Page 63: Disassembly Procedures
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Disassembly procedures Do not remove the instrument cover in explosive atmospheres when the circuit is live. 6.7.1 Remove from service Follow these steps: 1. Follow all plant safety rules and procedures. 2. Isolate and vent the process from the transmitter before removing the transmitter from service.
Page 64: Remove The Sensor Module From The Electronics Housing
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 3. Loosen the two captive screws that anchor the board to the housing. The electronics board is electrostatically sensitive; observe handling precautions for static-sensitive components. Use caution when removing the LCD display as there is an electronic pin connector that interfaces between the LCD display and electronics board.
Page 65: Attach The Electronics Board
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 6.8.1 Attach the electronics board 1. Remove the cable connector from its position inside of the internal black cap and attach it to the electronics board. 2. Using the two captive screws as handles, insert the electronics board into the housing. Make sure the posts from the electronics housing properly engage the receptacles on the electronics board.
Page 66: Install The Drain/Vent Valve
Reference Manual Troubleshooting 00809-0100-4797, Rev DA August 2016 Table 6-7. Bolt Installation Torque Values Bolt material Initial torque value Final torque value CS-ASTM-A445 Standard 300 in-lb (34 N-m) 650 in-lb (73 N-m) 316 SST—Option L4 150 in-lb (17 N-m) 300 in-lb (34 N-m) ASTM-A-193-B7M—Option L5 300 in-lb (34 N-m) 650 in-lb (73 N-m)
Page 67: Performance Specifications
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Appendix A Specifications and Reference Data Performance specifications ..........page 57 Functional specifications .
Page 68: Flow Performance - Flow Reference Accuracy
8:1 flow turndown 3051T Accuracy over range of use is always application dependent. Range 1 flowmeters may experience an additional uncertainty up to 0.9%. Consult your Emerson Process Management Representative ±0.2% of URL for 10 years for exact specifications. Ranges 1–4 ±50 °F (28 °C) temperature changes, and...
Page 69: Dynamic Performance
A.1.7 Line pressure effect per 1000 psi A.1.8 Ambient temperature effect per 50 °F (68,95 bar) (28 °C) For line pressures above 2000 psi (137,90 bar) and Ranges Models Ambient temperature effect 4–5, see Rosemount 3051 HART Reference Manual, Rosemount 3051 F Fieldbus Reference...
Page 70: Mounting Position Effects
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.1.9 Mounting position effects A.1.11 Power supply effect Less than ±0.005% of calibrated span per volt change Models Mounting position effects A.1.12 Electromagnetic compatibility (EMC) Zero shifts up to ±1.25 inH O (3,11 mbar), 3051C which can be calibrated out.
Page 71: 4-20 Ma Hart (Output Code A)
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-2. Rosemount 3051CA and 3051T Range and Sensor Limits 3051CA 3051T Range and sensor limits Range and sensor limits Minimum Minimum Upper Lower Upper Lower Lower span span (URL) (LRL) (URL)
Page 72: Foundation Fieldbus (Output Code F)
LOI (option code M4), analog zero and span (option LCD Transducer Block code D4) or Digital Zero Trim (option code DZ). See Rosemount 3051 Reference Manual for LOI configuration The LCD Transducer Block is used to configure the LCD menu.
Page 73: Profibus Pa (Output Code W)
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Signal characterizer block Power supply The signal characterizer (SGCR) function block External power supply required; transmitters operate on 9.0 characterizes or approximates any function that defines to 32.0 V dc transmitter terminal voltage. FISCO an input/output relationship.
Page 74: Low Power Output
Range 4: 6000 psia (413,69 bar)  Wireless sensor module for in-line transmitters Rosemount 3051TG/TA The Rosemount 3051 Wireless Transmitter requires the Range 1: 750 psi (51,71 bar)  engineered polymer housing to be selected. The standard Range 2: 1500 psi (103,42 bar) ...
Page 75: Burst Pressure Limits
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.2.10 Burst pressure limits Storage -50 to 230 °F (-46 to 110 °C) Rosemount 3051C, 3051CF Coplanar or traditional With LCD display: -40 to 185 °F (-40 to 85 °C) process flange With wireless output: -40 °F to 185 °F (-40 °C to 85 °C) 10081 psig (695,06 bar)
Page 76: Humidity Limits
Data Sheet. A.3.1 Material selection A.3.4 Process-wetted parts Emerson provides a variety of Rosemount products with various product options and configurations including Drain/vent valves materials of construction that can be expected to perform 316 SST, Alloy C-276, or Alloy 400 material (Alloy 400 not well in a wide range of applications.
Page 77: Rosemount 3051L Process Wetted Parts
Table A-6 Table A-6 Reference flange and adapter Transmitter weights include the sensor module and housing only (aluminum for Rosemount 3051 and polymer for wireless). CF-8M (Cast version of 316 SST, material per ASTM-A743) Table A-6. 3051L Weights without Options A.3.6 Non-wetted parts...
Page 78: Options
Protocol, refer to the Rosemount 3051 Configuration Data DIN level flange, SST, DN 80, 13.7 (6,2) Sheet. PN 40 For Rosemount 3051 Wireless, refer to the Rosemount SST sensor module 1.0 (0,45) 3051 Wireless Configuration Data Sheet. Power module (701PGNKF) 0.4 (0,18)
Page 79: Tagging (3 Options Available)
A temporary commissioning tag is attached to all A.4.9 Configuration buttons transmitters. The tag indicates the device ID and allows an Rosemount 3051 will ship with no buttons unless option D4 area for writing the location. (analog zero and Span), DZ (digital zero), or M4 (LOI) for Only applicable to F Fieldbus.
Page 80: Rosemount 3051C Coplanar Flange And Rosemount 3051T Bracket
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.4.13 Rosemount 3051C coplanar flange and Rosemount 3051T bracket option B4 Bracket for 2-in. Pipe or Panel Mounting For use with the standard coplanar flange  configuration Bracket for mounting of transmitter on 2-in. pipe ...
Page 81: Range Limits
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.5 Range limits Table A-8. Rosemount 3051C Differential/Gage Pressure Transmitter Range Limits Range 1 span Range 2 span Range 3 span Range 4 span Range 5 span Units 1000 83.040 8304 553.60...
Page 82 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-10. Rosemount 3051T Gage and Absolute Pressure Transmitter Range Limits Range 1 span Range 2 span Range 3 span Range 4 span Range 5 span Units 8.30397 831.889 41.5198 4159.45 221.439 22143.9...
Page 83: Ordering Information
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.6 Ordering information Table A-12. Rosemount 3051C Coplanar Pressure Transmitters Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time.
Page 84 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-12. Rosemount 3051C Coplanar Pressure Transmitters Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Isolating diaphragm ★...
Page 85 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-12. Rosemount 3051C Coplanar Pressure Transmitters Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ™...
Page 86 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-12. Rosemount 3051C Coplanar Pressure Transmitters Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 87 Digital zero trim (9)(30) Transient protection ★ Transient protection terminal block (29) Software configuration Custom software configuration (completed Rosemount 3051 Configuration Data Sheet for wired and ★ Rosemount 3051 Wireless Configuration Data Sheet for Wireless required with order) Low power output ★...
Page 88 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-12. Rosemount 3051C Coplanar Pressure Transmitters Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 89 21. Panel mounting bolts are not supplied. 22. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for Wireless approvals. 23. Only available with output codes A - 4-20mA HART, F - F Fieldbus, and W - PROFIBUS PA.
Page 90 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-13. Rosemount 3051T In-Line Pressure Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Transmitter type 3051T...
Page 91 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-13. Rosemount 3051T In-Line Pressure Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 92 American Bureau of Shipping ★ (21) Bureau Veritas (BV) ★ Det Norske Veritas ★ (21) Lloyds Register (LR) Custody transfer Measurement Canada Accuracy Approval (Limited availability depending on transmitter type and ★ range. Contact an Emerson Process Management representative.) Specifications and Reference Data...
Page 93 316 SST conduit plug (9)(27) Transient terminal block ★ Transient protection terminal block (24) Software configuration Custom software configuration (completed Rosemount 3051 Configuration Data Sheet for wired and ★ Rosemount 3051 Wireless Configuration Data Sheet for Wireless required with order) Low power output 0.8-3.2 Vdc output with digital signal based on HART Protocol (available with Output code M only)
Page 94 16. Panel mounting bolts are not supplied. 17. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for wireless approvals. 18. Only available with output codes A - 4-20mA HART, F - F Fieldbus, and W - PROFIBUS PA.
Page 95 (option code Q16), and remote seal system report (option code QZ). 21. Only available with product certifications E7, E8, I1, I7, IA, K7, K8, KD, N1, N7. 22. Contact an Emerson Process Management representative for availability. 23. Only available with HART 4-20 mA output (output code A).
Page 96 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Product description 3051CFA...
Page 97 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Pipe I.D.
Page 98 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 99 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Temperature measurement ★...
Page 100 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Antenna and SmartPower ★...
Page 101 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. (13) Code conformance ANSI/ASME B31.1...
Page 102 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 103 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-14. Rosemount 3051CFA Annubar Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Transmitter calibration certification ★...
Page 104 16. Only available with 4-20 mA HART output (output code A). 17. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for Wireless approvals. 18. Nonincendive certification not provided with Wireless output option code (X).
Page 105 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-15. Rosemount 3051CFC Compact Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Product description 3051CFC...
Page 106 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-15. Rosemount 3051CFC Compact Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Differential pressure range ★...
Page 107 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-15. Rosemount 3051CFC Compact Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Installation accessories ★...
Page 108 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-15. Rosemount 3051CFC Compact Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Code conformance ANSI/ASME B31.1 ANSI/ASME B31.3...
Page 109 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-15. Rosemount 3051CFC Compact Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Sensor fill fluid and O-ring options ★...
Page 110 Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. 17. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for wireless approvals 18. Nonincendive certification not provided with Wireless output option code (X).
Page 111 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Product description 3051CFP...
Page 112 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 113 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Transmitter output ★...
Page 114 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Optional connection ★...
Page 115 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Product certifications ★...
Page 116 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-16. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Display and interface options ★...
Page 117 15. Only available with HART 4-20 mA output (option code A). 16. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for wireless approvals 17. Nonincendive certification not provided with Wireless output option code (X).
Page 118 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-17. Rosemount 3051L Level Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (H) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Transmitter type 3051L...
Page 119 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-17. Rosemount 3051L Level Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (H) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Mounting flange size, rating, material (high side) Size Rating...
Page 120 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-17. Rosemount 3051L Level Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (H) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Specific Temperature limits Seal fill fluid (high side)
Page 121 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-17. Rosemount 3051L Level Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (H) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. (9)(10) Aluminum (9)(10)
Page 122 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-17. Rosemount 3051L Level Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (H) should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. ★...
Page 123 ★ (20) Digital zero trim (7)(21) Transient protection ★ Transient Protection Software configuration Custom software configuration (completed Rosemount 3051 Configuration Data Sheet for wired and ★ (20) Rosemount 3051 Wireless Configuration Data Sheet for Wireless required with order) Low power output 0.8-3.2 Vdc output with digital signal based on HART Protocol (available with output code M only)
Page 124 12. “Assemble-to” items are specified separately and require a completed model number. 13. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless Pressure Transmitter” on page 146 for wireless approvals. 14. Only available with output codes A - 4-20mA HART, F - F Fieldbus, and W - PROFIBUS PA.
Page 125 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA 21. The T1 option is not needed with FISCO product certifications; transient protection is included in the FISCO product certification codes IA, IB, and IE. 22. The V5 option is not needed with the T1 option; external ground screw assembly is included with the T1 option. 23.
Page 126: Spare Parts
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.7 Spare parts Note One spare part is recommended for every 50 transmitters.  Listed by range and process isolator order numbers.  Table A-18. Rosemount 3051C Gage and Differential Sensor Modules (Minimum Span/Range) Material Gage pressure range Differential pressure range Silicone fill...
Page 127 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Note One spare part is recommended for every 50 transmitters.  Listed by range and process isolator order numbers.  Table A-19. Rosemount 3051C Absolute Sensor Modules (Minimum Span/Range) Material Absolute Pressure Silicone fill...
Page 128 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Electronics board assemblies Part number 4-20 mA HART Standard 03031-0001-0002 4-20 mA HART NAMUR compliant 03031-0001-0003 1-5 Vdc HART Low Power 03031-0001-1001 Fieldbus 03031-0001-2001 OUNDATION PROFIBUS PA Fieldbus 03031-0001-2101 LCD display LCD display kits Fieldbus (F...
Page 129 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Housing conduit plugs Part number NPT conduit plug 03031-0544-0003 M20 conduit plug 03031-0544-0001 conduit plug 03031-0544-0004 Housing covers (include O-ring) Field terminal cover - aluminum 03031-0292-0001 Field terminal cover - 316 SST 03031-0292-0002 Fieldbus extended electronics cover - aluminum 03031-0292-0003...
Page 130 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Flange adapter kits Part number (each kit contains parts for one DP transmitter or two GP/AP transmitters) CS bolts, glass-filled PTFE O-rings SST adapters 03031-1300-0002 Cast Alloy C-276 adapters 03031-1300-0003 Alloy 400 adapters 03031-1300-0004...
Page 131 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA O-ring packages (package of 12) Part number Electronics housing, cover 03031-0232-0001 Electronics housing, module 03031-0233-0001 Process flange, glass-filled PTFE (white) 03031-0234-0001 Process flange, graphite-filled PTFE (black) 03031-0234-0002 Flange adapter, glass-filled PTFE (light brown) 03031-0242-0001 Flange adapter, graphite-filled PTFE (black) 03031-0242-0002...
Page 132 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Drain/vent valve kits (each kit contains parts for one transmitter) Part number Differential drain/vent kits 316 SST stem and seat kit 01151-0028-0022 Alloy C-276 stem and seat kit 01151-0028-0023 Alloy K-500 stem and Alloy 400 seat kit 01151-0028-0024 316 SST ceramic ball drain/vent kit...
Page 133 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-1. Spare Parts A. Flange adapter O-ring G. Electronics housing cover O-ring B. Process O-ring H. Electronics board C. Electronics housing module O-ring I. Sensor module D. Terminal block J.
Page 134: Pipe I.d. Range Codes
12-in. (300 mm), choose option code Z and specify the exact pipe dimensions (I.D. and Pipe Wall Thickness) on the Rosemount 3051 Configuration Data Sheet. The Emerson Process Management sizing program will determine this code, based on the application piping. Line size Pipe wall thickness I.D.
Page 135 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Line size Pipe wall thickness I.D. I.D. range range Option Nominal Max. O.D. ANSI pipes Non-ANSI pipes code code 4.438 to 4.571-in. 0.134 to 0.481-in. (112.73 to 116.10 mm) (3.4 to 12.2 mm) 4.572 to 4.812-in.
Page 136 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Line size Pipe wall thickness I.D. I.D. range range Option Nominal Max. O.D. ANSI pipes Non-ANSI pipes code code 7.393 to 7.624-in. 0.250 to 1.239-in. (187.78 to 193.65 mm) (6.4 to 31.4 mm) 7.625 to 7.981-in.
Page 137: Dimensional Drawings
Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA A.9 Dimensional drawings Figure A-2. Rosemount 3051C Exploded View A. Cover J. Sensor module B. Cover O-ring K. Coplanar flange C. Terminal block L. Drain/vent valve D. Electronics housing M.
Page 138 4.09 (109) (104) 7.12 (181) 6.55 (166) Dimensions are in inches (millimeters). Figure A-4. Rosemount 3051 Wireless Housing with Coplanar Flange 5.49 (139) 4.196 (106.6) 7.41 (188) Dimensions are in inches (millimeters). Figure A-5. Rosemount 3051C Coplanar Flange with Rosemount 305RC3 3-Valve Coplanar Integral Manifold 6.75...
Page 139 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-6. Coplanar Flange Mounting Configurations with Optional Bracket (B4) for 2-in. Pipe or Panel Mounting 2.81 (71) 6.20 (157) 2.81 (71) 4.73 3.35 (120) (85) 3.35 (85) 6.25 (159) 3.50 (89)
Page 140 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-7. Rosemount 3051C Coplanar with Traditional Flange 4.09 (104) 1.63 (41) 2.13 (54) 1.16 3.40 1.10 (29) (86) (28) A. Flange adapters (optional) Dimensions are in inches (millimeters). Figure A-8.
Page 141 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-10. Traditional Flange Mounting Configurations with Optional Brackets for 2-in. Pipe Mounting Option B1/B7/BA Option B3/B9/BC 6.65 (169) 4.85 (123) 1.10 (28) 3.40 (86) 2.62 (67) 1.75 (44) 6.65 (169) 0.93 (24) 4.12 (105)
Page 142 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-13. Rosemount 3051T with Rosemount 306 2-Valve Integral Manifold 4.13 4.88 (105) (124) 6.25 (159) max open Dimensions are in inches (millimeters). Figure A-14. Rosemount 3051T Typical Mounting Configurations with Optional Mounting Bracket Pipe mounting Panel mounting 6.15...
Page 143 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-15. Rosemount 3051CFA Pak-Lok Annubar Flowmeter Front view Side view Top view Table A-20. Rosemount 3051CFA Pak-Lok Annubar Flowmeter Dimensional Data (Maximum Dimensions) Sensor size 8.50 (215.9) 15.60 (396.9) 9.00 (228.6) 6.00 (152.4) 11.00 (279.4)
Page 144 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-16. Rosemount 3051CFC Compact Orifice Flowmeter Orifice plate side view Orifice plate front view Orifice plate top view Primary element Transmitter type height 7.75 (197) - closed 6.00 (152) - closed Type P and C 5.62 (143) Transmitter Height + A...
Page 145 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-17. Rosemount 3051CFP Integral Orifice Flowmeter Side view Bottom view Front view 8.80 10.30 (223.46) (261.81) 6.30 (160.55) 5.30 (134.51) Downstream Upstream A. B.D. (bore diameter) Dimensions are in inches (millimeters). Line size Dimension -in.
Page 146 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Figure A-18. Rosemount 3051L 2-in. flange 3- and 4-in. configuration Diaphragm assembly and mounting flange flange configuration (flush mount only) 4.09 5.13 4.09 (104) (130) (104) 4.29 (109) 6.80 (173) 7.10 (181) 8.20...
Page 147 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Table A-21. Rosemount 3051L Dimensional Specifications O.D. Flange Bolt circle Outside Extension Pipe Bolt hole gasket thickness diameter diameter diameter Class size diameter surface bolts 2 (51) 0.69 (18) 4.75 (121) 6.0 (152) 0.75 (19)
Page 148 Specifications and Reference Data Reference Manual August 2016 00809-0100-4797, Rev DA Specifications and Reference Data...
Page 149: Rosemount ™ 3051 Pressure Transmitter
3051 Pressure Transmitter ........page 139 Rosemount 3051 Wireless Pressure Transmitter ......page 146 Approval drawings .
Page 150: Europe
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Temperature Code T3C; Suitable for Class ATEX Intrinsic Safety and Dust I, Zone 0; Class I Division 2 Groups A, B, C Certificate: BAS97ATEX1089X; Baseefa11ATEX0275X and D, T5; Suitable for Class I Zone 2, Standards: EN60079-0:2012, EN60079-11:2012, Group IIC;...
Page 151: International
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA 2. The enclosure may be made of aluminum alloy and IECEx Intrinsic Safety given a protective polyurethane paint finish; however Certificate: IECEx BAS 09.0076X care should be taken to protect it from impact or Standards: IEC60079-0:2011, IEC60079-11:2011 abrasion if located in Zone 0.
Page 152: Brazil
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA 3. It is a condition of manufacture that only the Table B-7. Input Parameters apparatus fitted with housing, covers and sensor HART Fieldbus/PROFIBUS Parameter module housing made out of stainless steel are used in Group I applications.
Page 153: China
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA B.1.7 China 2. The relation between T code and ambient temperature range is: China Flameproof Certificate: GYJ14.1041X; GYJ15.1368X [Flowmeters] Model T code Temperature class Standards: GB12476-2000; GB3836.1-2010, ≤ ≤ GB3836.2-2010, GB3836.20-2010 HART -60 °C +40 °C...
Page 154: Japan
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA 8. During installation, use and maintenance of this B.1.11 Conduit plugs and adapters product, observe the following standards: GB3836.13-1997, GB3836.15-2000, IECEx Flameproof and Increased Safety GB3836.16-2006, GB50257-1996, GB12476.2-2006, Certificate: IECEx FMG 13.0032X GB15577-2007 Standards: IEC60079-0:2011, IEC60079-1:2007, IEC60079-7:2006-2007...
Page 155: Additional Certifications
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA B.1.12 Additional certifications SBS American Bureau of Shipping (ABS) Type Approval Certificate: 09-HS446883A-5-PDA Intended Use: Marine and Offshore Applications – Measurement of either gauge or absolute pressure for liquid, gas and vapor.
Page 156: Rosemount 3051 Wireless Pressure Transmitter
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA B.2 Rosemount 3051 Wireless Special Conditions for Safe Use (X): 1. The Rosemount 3051 Wireless Pressure Transmitter Pressure Transmitter shall only be used with the 701PGNKF Rosemount ™ SmartPower Battery Pack.
Page 157: International
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA B.2.8 International B.2.11 EAC – Belarus, Kazakhstan, Russia IECEx Intrinsic Safety Technical Regulation Customs Union (EAC) Intrinsic Certificate: IECEx BAS 12.0124X Safety Standards: IEC60079-11:2011, IEC60079-0:2011 Certificate: RU C-US.ГБ05.B.00400 Markings: Ex ia IIC T4 Ga, T4(-40 °C ≤ T ≤...
Page 158: Approval Drawings
Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA B.3 Approval drawings Figure B-1. Factory Mutual 03031-1019 Product Certifications...
Page 159 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 160 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 161 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 162 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 163 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 164 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 165 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 166 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 167 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 168 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 169 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 170 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 171 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Figure B-2. Canadian Standards Association (CSA) 03031-1024 Product Certifications...
Page 172 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 173 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 174 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 175 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 176 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 177 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 178 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 179 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 180 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Figure B-3. Standards Association of Australia (SAA) 03031-1026 Product Certifications...
Page 181 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 182 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 183 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 184 Product Certifications Reference Manual August 2016 00809-0100-4797, Rev DA Product Certifications...
Page 185: C.1 Overview
Reference Manual Local Operator Interface (LOI) Menu 00809-0100-4797, Rev DA August 2016 Appendix C Local Operator Interface (LOI) Menu Overview ............. . . page 175 Safety messages .
Page 186 Reference Manual Local Operator Interface (LOI) Menu 00809-0100-4797, Rev DA August 2016 Figure C-1. Detailed LOI Menu Either button Password protection is default out of the factory as off. The customer will need a configuration tool to set it. PASSWORD CODE FALSE CORRECT?
Page 187 Reference Manual Local Operator Interface (LOI) Menu 00809-0100-4797, Rev DA August 2016 Details of LOI Map Infomation Level Units Pressure Units Flow Units Cubic Meters Per Second Inches of water Percentage Chosen Volume Millimeters millibar Kilograms Per Minute Chosen Volume Centimeters Ton Per Hour...
Page 188 Reference Manual Local Operator Interface (LOI) Menu 00809-0100-4797, Rev DA August 2016 Local Operator Interface (LOI) Menu...
Page 189: D.1 Overview
® Reference Manual PROFIBUS Block Information 00809-0100-4797, Rev DA August 2016 ® Appendix D PROFIBUS Block Information Overview ............. . . page 179 Safety messages .
Page 190: D.3 Profibus Block Parameters
® PROFIBUS Block Information Reference Manual 00809-0100-4797, Rev DA August 2016 PROFIBUS block parameters Table D-1 through Table D-3 can be used to cross reference parameters from the PROFIBUS specification, class two master, and Local Operator Interface (LOI). Table D-1. Physical Block Parameters ™...
Page 191 ® Reference Manual PROFIBUS Block Information 00809-0100-4797, Rev DA August 2016 Table D-1. Physical Block Parameters ™ Index Parameter name name Definition location WRITE_LOCKING Write Locking Software write protection FACTORY_RESET Factory Reset Command for restarting device DESCRIPTOR Descriptor User-definable text to describe the device. User-definable message to the device or DEVICE_MESSAGE Message...
Page 192 ® PROFIBUS Block Information Reference Manual 00809-0100-4797, Rev DA August 2016 Table D-2. Transducer Block Parameters Index Parameter name DTM name Definition location The revision level of the static data Static Revision associated with block; the revision value ST_REV will be incremented each time a static parameter value in the block is changed.
Page 193 ® Reference Manual PROFIBUS Block Information 00809-0100-4797, Rev DA August 2016 Table D-2. Transducer Block Parameters Index Parameter name DTM name Definition location PRIMARY_VALUE_UNIT Unit (PV) Engineering units for the primary value Primary Value Type of pressure application (pressure, PRIMARY_VALUE_TYPE Type flow, level) Isolator...
Page 194 ® PROFIBUS Block Information Reference Manual 00809-0100-4797, Rev DA August 2016 Table D-3. Analog input Block Parameters Index Parameter name DTM name Definition location The revision level of the static data associated with block; Static Revision ST_REV the revision value will be incremented each time a static parameter value in the block is changed.
Page 195: D.4 Condensed Status
If blank, parameter is not applicable to LOI. Condensed status The Rosemount 3051 device utilizes condensed status as recommended by the Profile 3.02 specification and NE 107. Condensed status has some additional bits and changed bit assignments from classic status. Confirm bit assignment using...
Page 196 ® PROFIBUS Block Information Reference Manual 00809-0100-4797, Rev DA August 2016 ® PROFIBUS Block Information...
Page 198 Singapore 128461 Standard Terms and Conditions of Sale can be found at: +65 6777 8211 www.Emerson.com/en-us/pages/Terms-of-Use.aspx The Emerson logo is a trademark and service mark of Emerson Electric Co. +65 6777 0947 Annubar, Coplanar, Instrument Toolkit, PlantWeb, SmartPower, Rosemount, Enquiries@AP.EmersonProcess.com and Rosemount logotype are trademarks of Emerson Process Management.

Emerson Rosemount 3051 Reference Manual

Quick Links

Related Manuals for Emerson Rosemount 3051

Summary of Contents for Emerson Rosemount 3051

Table of Contents
