Standby Clock Source Configuration

The standby clock source for the MSS in the F*F mode is configured to On-chip 50 MHz RC Oscillator

using the Flash*Freeze Hardware Settings dialog box in the Libero SoC software, as shown in the

following figure. A higher MSS clock frequency is required in the F*F mode to meet the SPI

communication speed requirements.

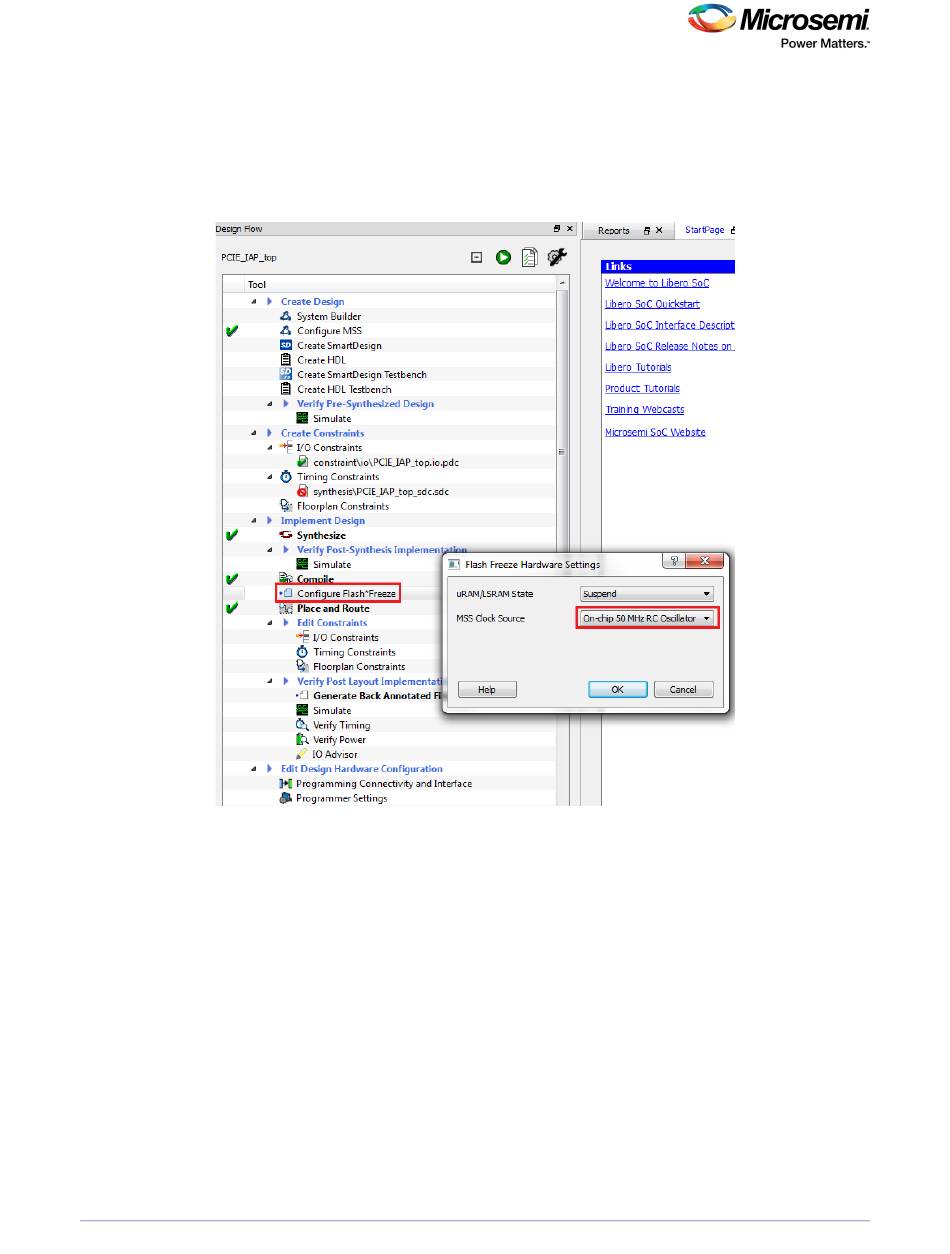

Figure 34 • Flash*Freeze Hardware Settings
