In-Application Programming Using PCIe Interface
On completion of the IAP program, the GUI displays a Microsemi PCIe Device Found message as shown
in the following figure. This indicates that the SmartFusion2 device is programmed with the PCIe enabled
design and the PCIe communication link status is restored to the active state. If the SmartFusion2 device
is programmed without the PCIe enabled design, the GUI displays a No Microsemi PCIe Device Found
message. For more information on design type and programming results, see

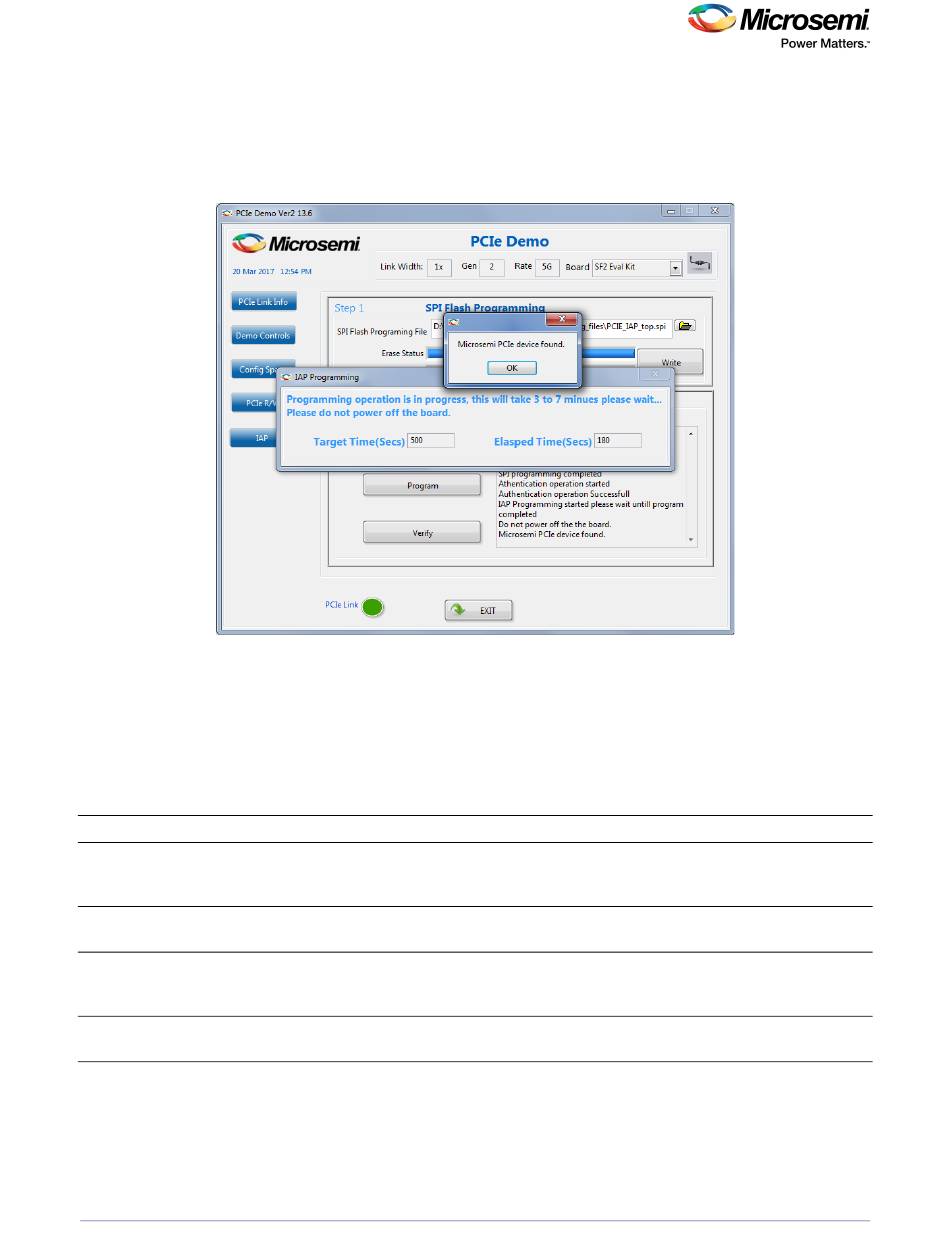

Figure 25 • Microsemi PCIe Device Found Message in PCIe Demo GUI
2.9.1.1 Programming Results
The following table shows the possible results for the IAP program operation mode for sample
programming files provided in the folder:
<download_folder>\sf2_iap_using_interface_demo_df\ sample_programming_files.
All the.spi files listed in the following table are not demonstrated.
Table 3 • IAP Programming Results
*.spi Programming File Name Design Type eNVM Programming Result FPGA Fabric Programming Result
iap_envm_only.spi
iap_fabric_only.spi
iap_fabric_and_envm.spi
pcie_iap_top.spi
Note: After the successful IAP program operation, the SmartFusion2 Security Evaluation Kit must be
reprogrammed with the original pcie_iap_top.stp file to try the IAP operation modes again, if the design
type is not PCIe enabled.
PCIe is not SmartFusion2 LED 4-bit
enabled counter logic (LEDs DS4 to
DS7)
PCIe is not NA
enabled
PCIe is not SmartFusion2 LED 4-bit
enabled counter logic (LEDs DS4 to
DS7)
PCIe is Retains original eNVM
enabled program.
DG0584 Demo Guide Revision 5.0
Table 3, page 20.
NA
SmartFusion2 LEDs DS0 to DS3
blink
SmartFusion2 LEDs DS0 to DS3
blink
Retains original FPGA fabric logic
