In-Application Programming Using PCIe Interface
2.6.1
Installing PCIe_Demo Application GUI
The PCIe_Demo application is a GUI that runs on the host PC to communicate with the SmartFusion2
PCIe endpoint device. It provides PCIe link status, driver information, and demo controls. The
PCIe_Demo application invokes the PCIe driver installed on the host PC and provides commands to the
driver according to the selection made.
The following steps describe how to install the PCIe_Demo application:
1.
Download the PCIe Demo application from PCIe_Demo_GUI_Installer. Go to <download_folder>
PCIe_Demo_GUI_Installer and double-click setup. Do not change the default options.

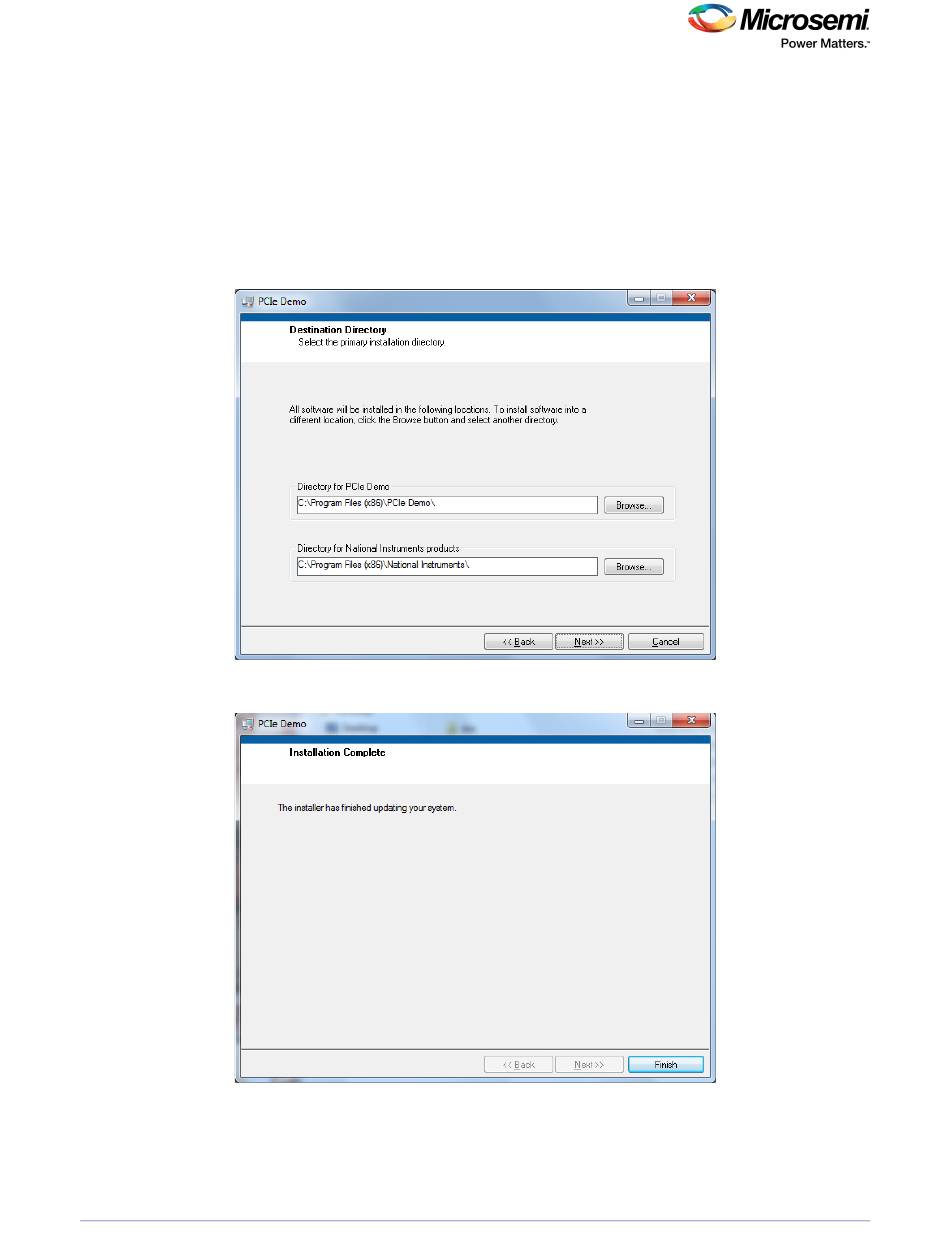

Figure 14 • GUI Installation
2.
Click Next to complete the installation.Thefollowing figure is displayed after successful installation.
Figure 15 • Successful Installation of GUI
3.
Shut down the host PC.
4.
Power cycle the SmartFusion2 Security Evaluation Kit.
5.
Restart the host PC.
DG0584 Demo Guide Revision 5.0
13
