Figure 22 Authentication Success Message In Pcie Demo Gui; Figure 23 Authentication Failed - Microsemi SmartFusion2 Demo Manual

In-Application Programming Using PCIe Interface
On completion of the IAP authentication, the GUI displays an Authentication operation success-
ful message as shown in the following figure.

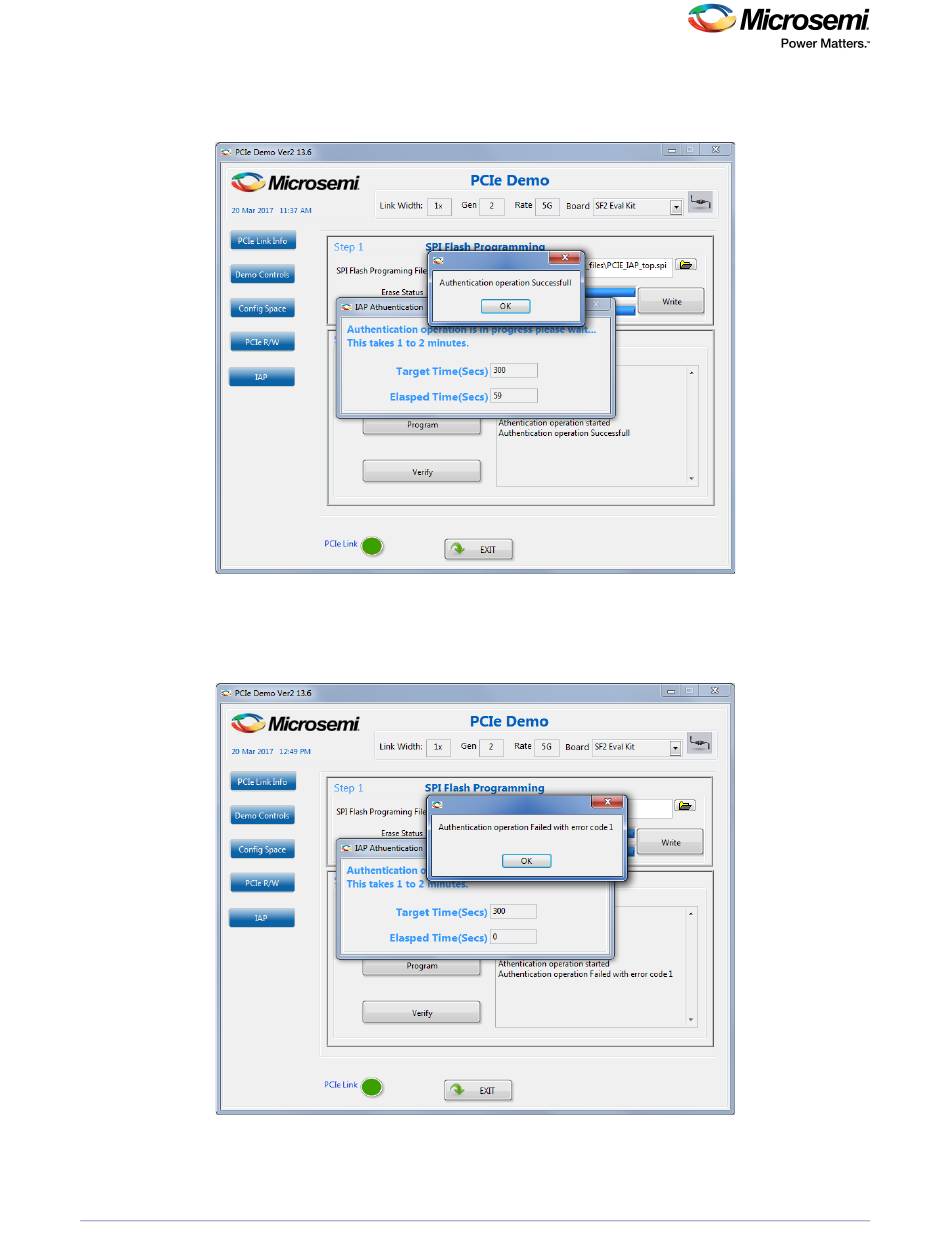

Figure 22 • Authentication Success Message in PCIe Demo GUI
The demo GUI also provides an option to create an authentication failure scenario, which can be
achieved by modifying the programming file (*.spi) contents and running the authenticate operation.
The following figure shows a sample authentication failed error scenario message. For information
about error codes, see
Figure 23 • Authentication Failed
Appendix: Error Codes, page 24.
DG0584 Demo Guide Revision 5.0 18
