Appendix: Implementing Workaround to Access Fabric LSRAM after IAP/ISP Program

Operation

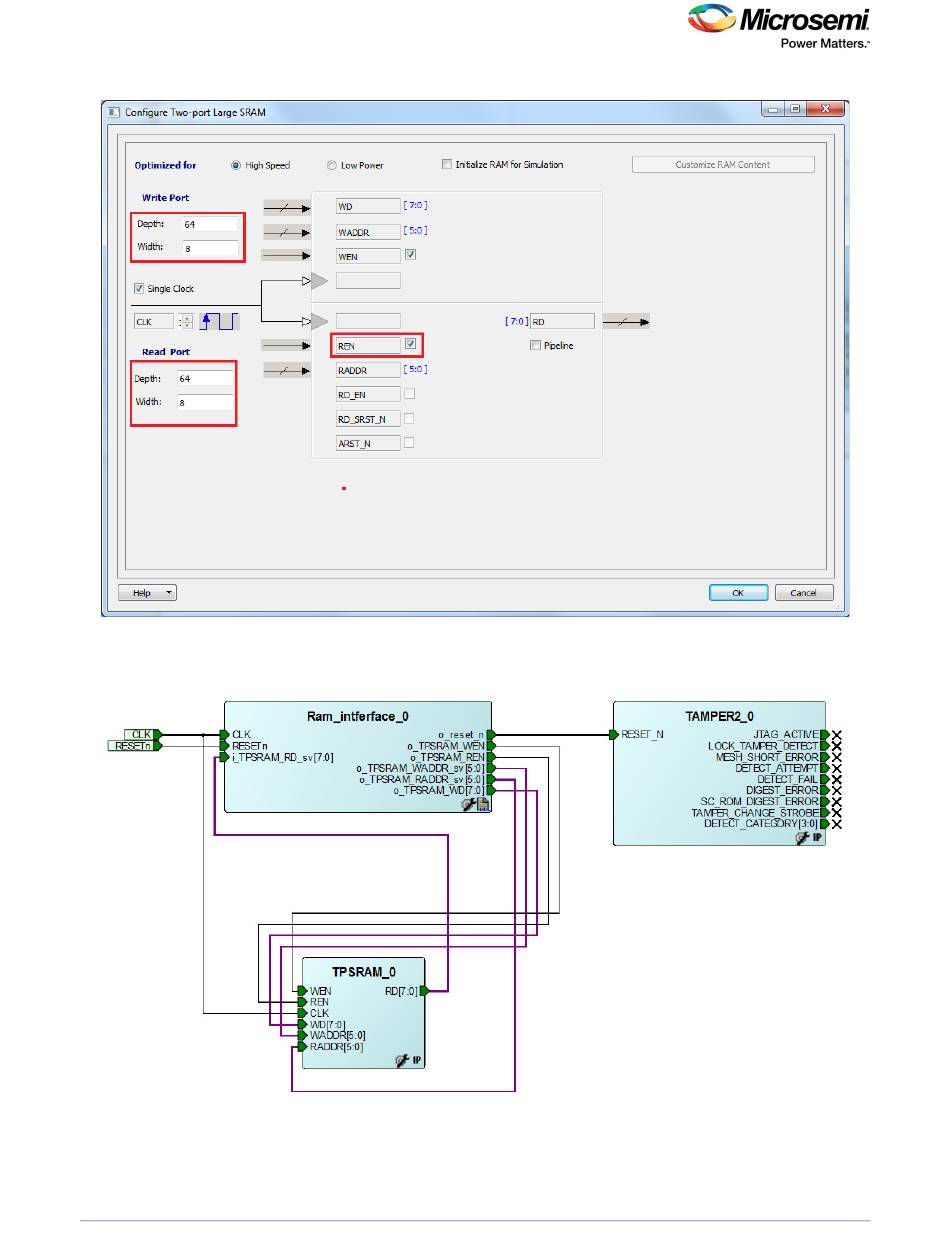

Figure 42 • Two-Port SRAM Configurator Window

Connect Tamper Macro, FSM, and TPSRAM, as shown in the following figure.

Figure 43 • Dev_Restart_after_IAP_blk SmartDesign

Click the PCIE_IAP_top tab and drag the Dev_Restart_after_IAP_blk component from the Design

Hierarchy to the PCIE_IAP_top SmartDesign canvas.
