Verify Operation Mode

The following steps describe how to verify operation mode:

Click Verify in the GUI to verify the SmartFusion2 device FPGA fabric and eNVM contents. The

following figure shows the Verification operation is in progress message.

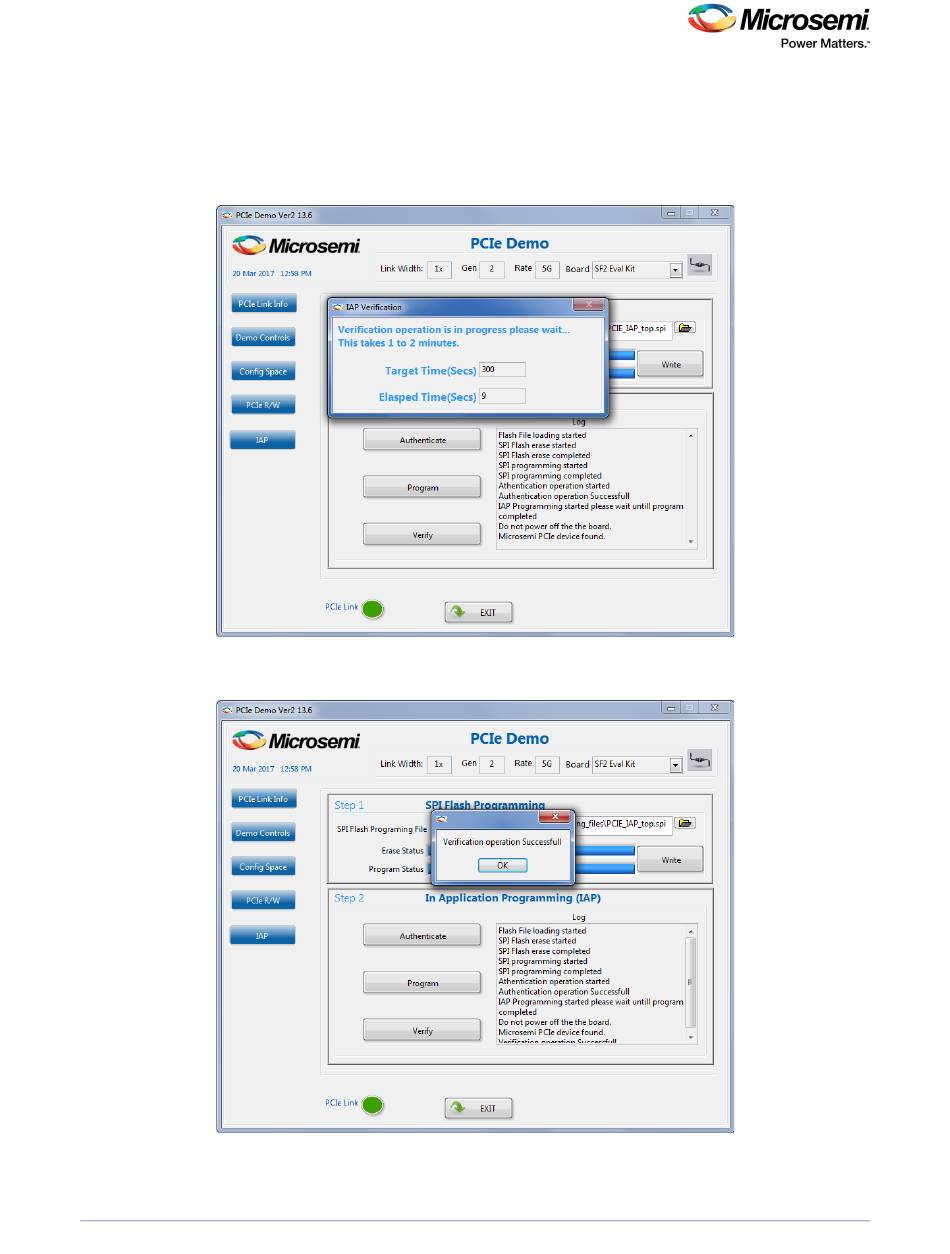

Figure 26 • IAP Verification Status

The following figure shows the Verification operation successful message.

Figure 27 • IAP Verification Success

DG0584 Demo Guide Revision 5.0
