4.

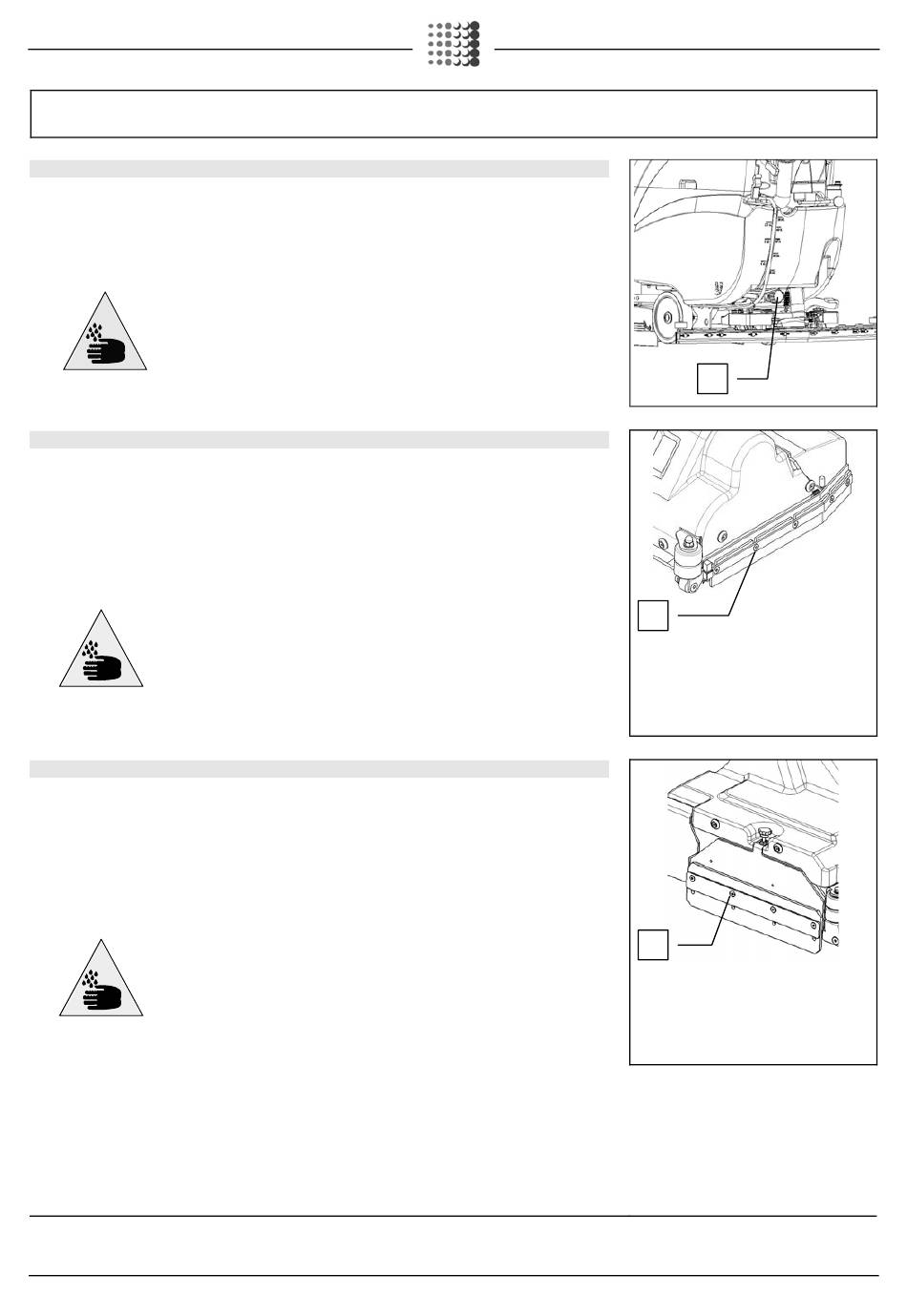

CLEANING THE SOLUTION TANK

1. Loosen the front cap of the solution tank.
2. Turn the tap lever clockwise as far as it will go
3. Loosen the drainage cap (1) located on the filter, and empty the tank.
4. Rinse the inside of the tank and the filter cap with a jet of water
5. Retighten the two caps
WARNING: this operation must be carried out wearing gloves to protect against
contact with dangerous solutions.

5. REPLACING THE BRUSHING BASE SPLASH GUARD (MX VERSION)

To ensure the water is collected efficiently while the machine is working, you should periodically check the
state of wear and tear of the side splash guards. When you need to replace them, proceed as follows:
1. with the brush head up, loosen the screws (1) that fix the blocking blade of the splash guard rubber
2. unthread the splash guard rubber and rotate it by 180° in order to replace the worn part with a new
one. If the splash guards are worn on both sides, replace them with new rubbers (contact the FIMAP
assistance centre)
3. re-assemble everything by carrying out the above-mentioned operations in the reverse order
WARNING: this operation must be carried out wearing gloves to protect against
contact with dangerous solutions.

6. REPLACING THE BRUSHING BASE SPLASH GUARDS (SMX VERSION)

To ensure the water is collected efficiently while the machine is working, you should periodically check the
state of wear and tear of the side splash guards. When you need to replace them, proceed as follows:
4. with the brush head up, loosen the screws (1) that fix the blocking blade of the splash guard rubber
5. unthread the splash guard rubber and rotate it by 180° in order to replace the worn part with a new
one. If the splash guards are worn on both sides, replace them with new rubbers (contact the FIMAP
assistance centre)
6. re-assemble everything by carrying out the above-mentioned operations in the reverse order
WARNING: this operation must be carried out wearing gloves to protect against
contact with dangerous solutions.
WEEKLY MAINTENANCE
