Take care not to mix up the brushes, the blue brush should always be placed in the rear idle hub.
Take care how the brushes are mounted, the assembly is correct if the direction of the bristles form an X
looking from above.
WARNING: you are advised to always wear protective gloves in order to avoid the
risk of serious injury to your hands

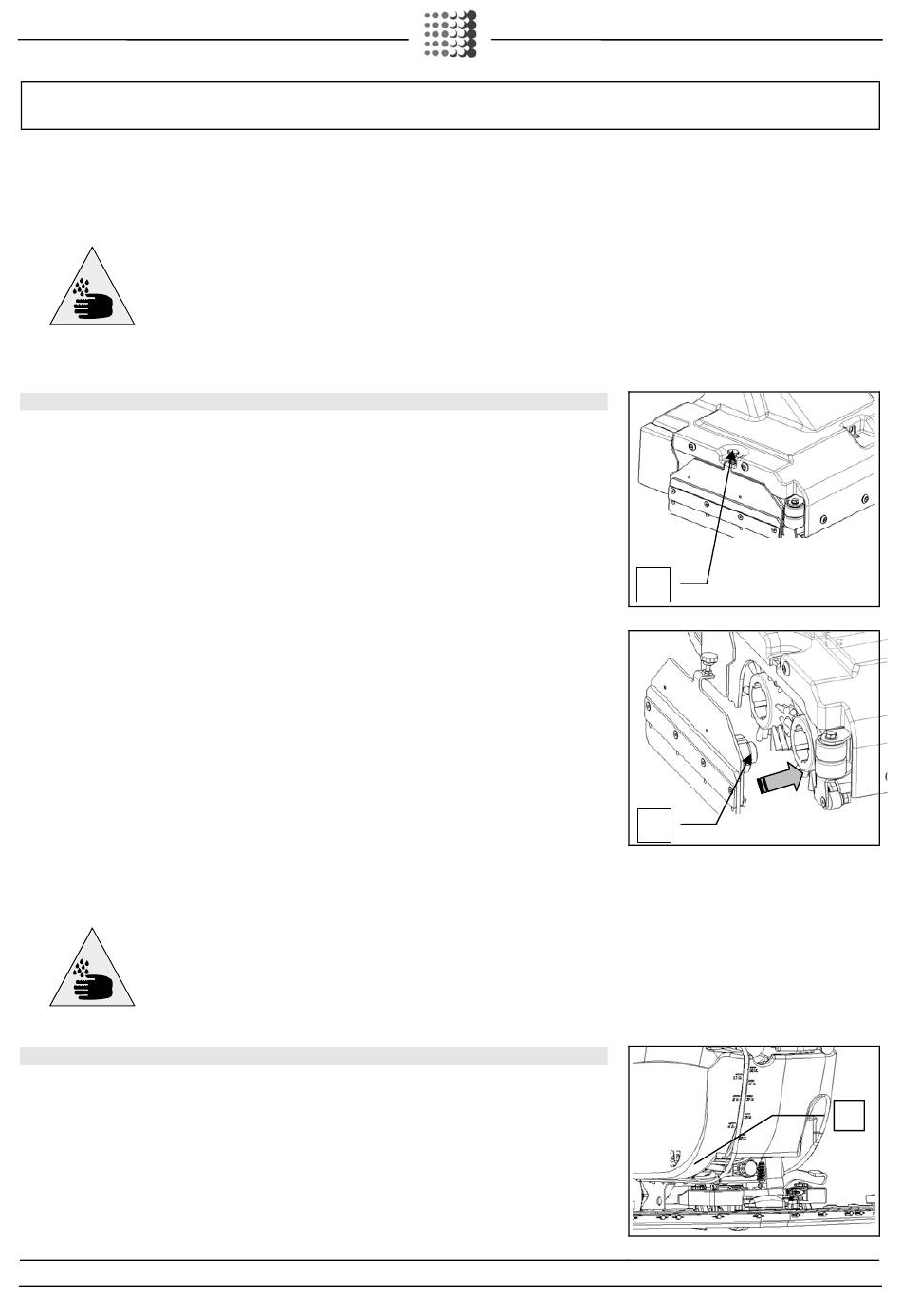

28. ASSEMBLING THE BRUSH (BRUSH HEADS WITH CYLINDRICAL BRUSHES) SX 60S

Proceed as follows to assemble the brushes:
1. Use the side parking brake lever to stop the machine.
2. Raise the brush head by means of the appropriate pedal
3. Make sure that the key switch is in the "0" position
4. Remove the right-side splash guard by loosening the knob (1)
5. Insert the brush (the side with 5 teeth) in the tunnel until it couples with the dragging device hub on the
opposite side of the tunnel.
6. Insert the idle hub (1) of the mobile support in the brush (the side with 5 teeth).
7. Repeat the operation for the second brush.
8. Reassemble the side splash guard, tightening the knob (1).
Take care how the brushes are mounted, the assembly is correct if the direction of the bristles form an X
looking from above.
WARNING: you are advised to always wear protective gloves in order to avoid the
risk of serious injury to your hands

29. REGULATING THE SOLUTION IN MODELS WITHOUT FSS

Regulate the amount of water by means of the side tap (1).
