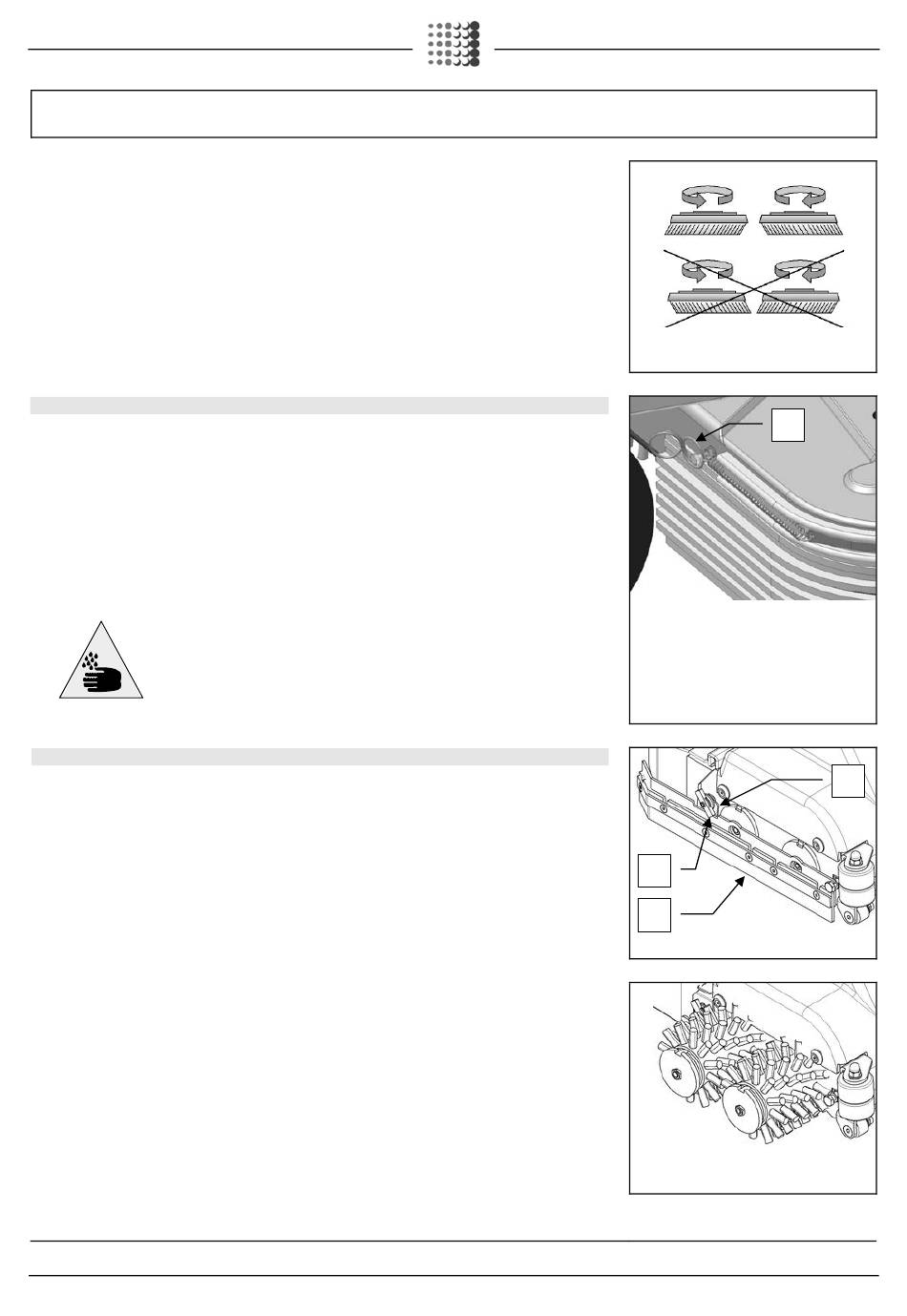

5. You are advised to invert the right and left-hand brushes every day. If the brushes are not new
however, and have deformed bristles, it is better to reassemble them in the same position (the right-
hand one on the right, and the left-hand one on the left), to prevent the different inclination of the
bristles producing an overload on the brush motor as well as excessive vibrations.
26.

ASSEMBLY OF DISC BI-BRUSH HEAD SPLASH GUARD

For packaging reasons, the splash guard rubbers are supplied disassembled from the machine.
Proceed as follows to assemble the splash guard rubber:
1. Use the side parking brake lever to stop the machine.
2. Remove the rubber retaining strips by slipping off the spring hook (1) from the connecting screw
3. Wind the rubber all around the brush head, inserting the brush head fixing screw in the central hole
4. Reattach the rubber retaining strips starting from the centre of the brush head, attach the spring (1) of
the connecting screw
Be careful not to invert the right blade with the left one, as they are not the same.
WARNING: you are advised to always wear protective gloves in order to avoid the
risk of serious injury to your hands

27. ASSEMBLING THE BRUSH (BRUSH HEADS WITH CYLINDRICAL BRUSHES) MX 50S

Proceed as follows to assemble the brushes:
1. Use the side parking brake lever to stop the machine.
2. Make sure that the key switch is in the "0" position
3. Raise the brush head by means of the appropriate pedal
4. Loosen the wing nut (1)
5. Rotate the side splash guard (2).
6. Remove the splash guard (3)
7. Remove the idle hubs
8. Insert the brush (the side with 5 teeth) in the tunnel until it is coupled with the dragging device hub.
9. Insert the idle hub of the mobile support in the brush (the side with 6 teeth).
10. Repeat the operation for the second brush.
11. Reassemble the side splash guard (3).
12. Rotate the side splash guard (2).
13. Fix the wing nut (1)
MACHINE PREPARATION
