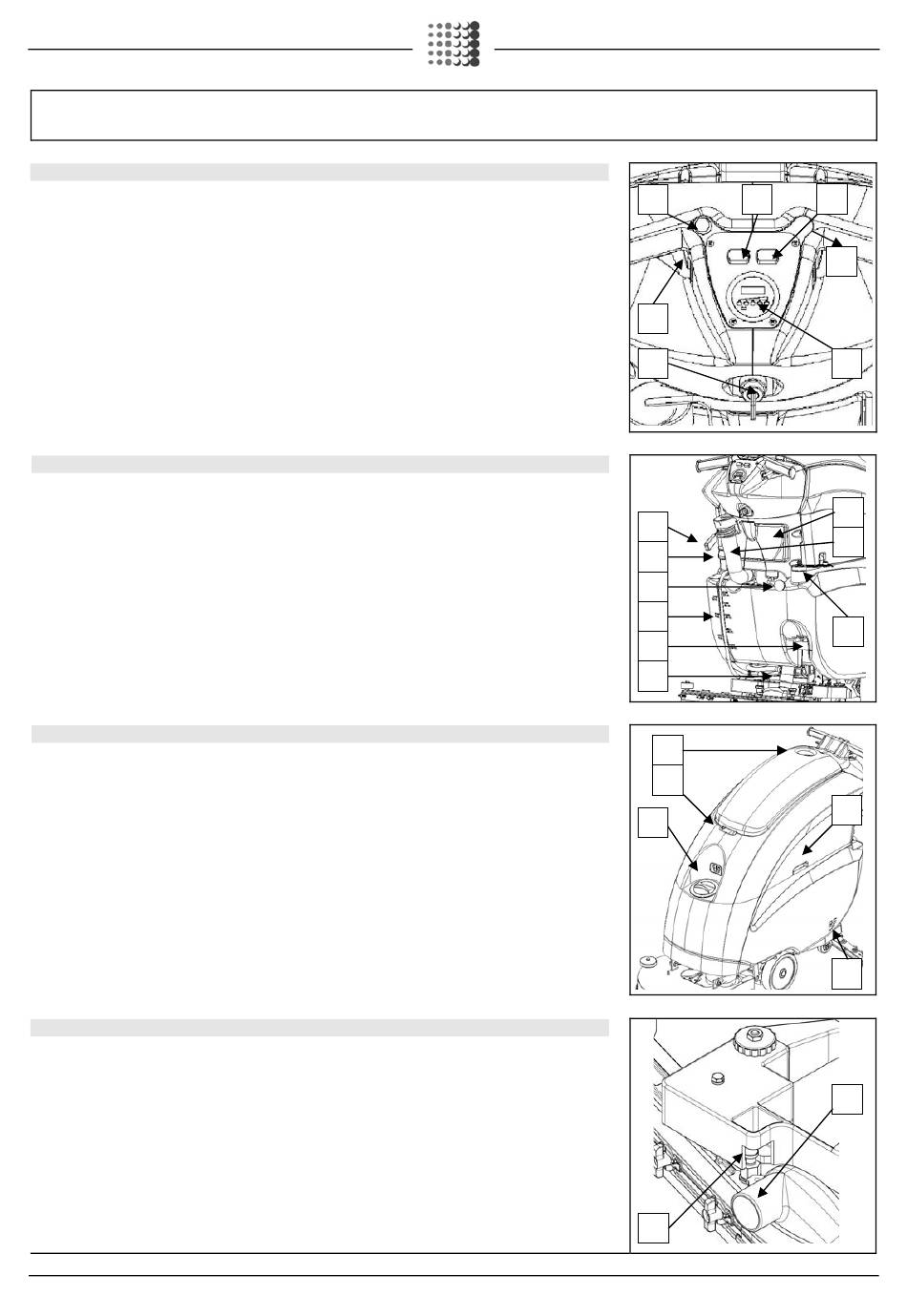

13. INSTRUMENT PANEL COMPONENTS

The instrument panel components are identified as follows:
1. Levers to activate brushes/traction (located beneath the grip)
2. Water outlet adjustment switch (FSS Versions)
3. Detergent outlet adjustment switch (FSS Versions)
4. Automatic brush release button (Mx 50 Bt Versions)
5. ON/OFF key switch
6. Battery level / hour-counter display
7. Speed adjustment knob.

14. REAR COMPONENTS

The rear components are identified as follows:
1. Brush lifting pedal
2. Water level tube
3. Solution tank water inlet cap
4. Drainage tube with recovery tank cap
5. Hinge to close the tanks
6. Compartment for battery charger / storage (depending on the model)
7. Squeegee lifting lever
8. Brake lever
9. Solution filter

15. FRONT AND SIDE COMPONENTS

The side components are identified as follows:
1. Lever for manual regulation of clean water outlet
2. Recovery tank lifting handle
3. Suction unit lifting handle
4. Upper storage compartment
5. Solution water filler cap

16. ASSEMBLING THE SQUEEGEE

For packaging reasons, the squeegee is supplied disassembled from the machine, and must be
assembled on the machine connection. The squeegee connection must be lifted by means of the lever,
then:
1. raise the squeegee and insert the small left-hand column (1) in the connection hole
2. push the connection lever (2) to the left
3. Raise the squeegee and insert the small right-hand column (3) in the connection hole
4. release the connection lever (2) so it is blocked in the flat housing of the small column
5. Insert the suction tube (4) in the appropriate squeegee sleeve (5), ensuring that the tube lies to the
right of the lifting cable
