ATTENTION: these operations must be carried out using protective gloves to
avoid any possible contact with the edges or tips of metal objects

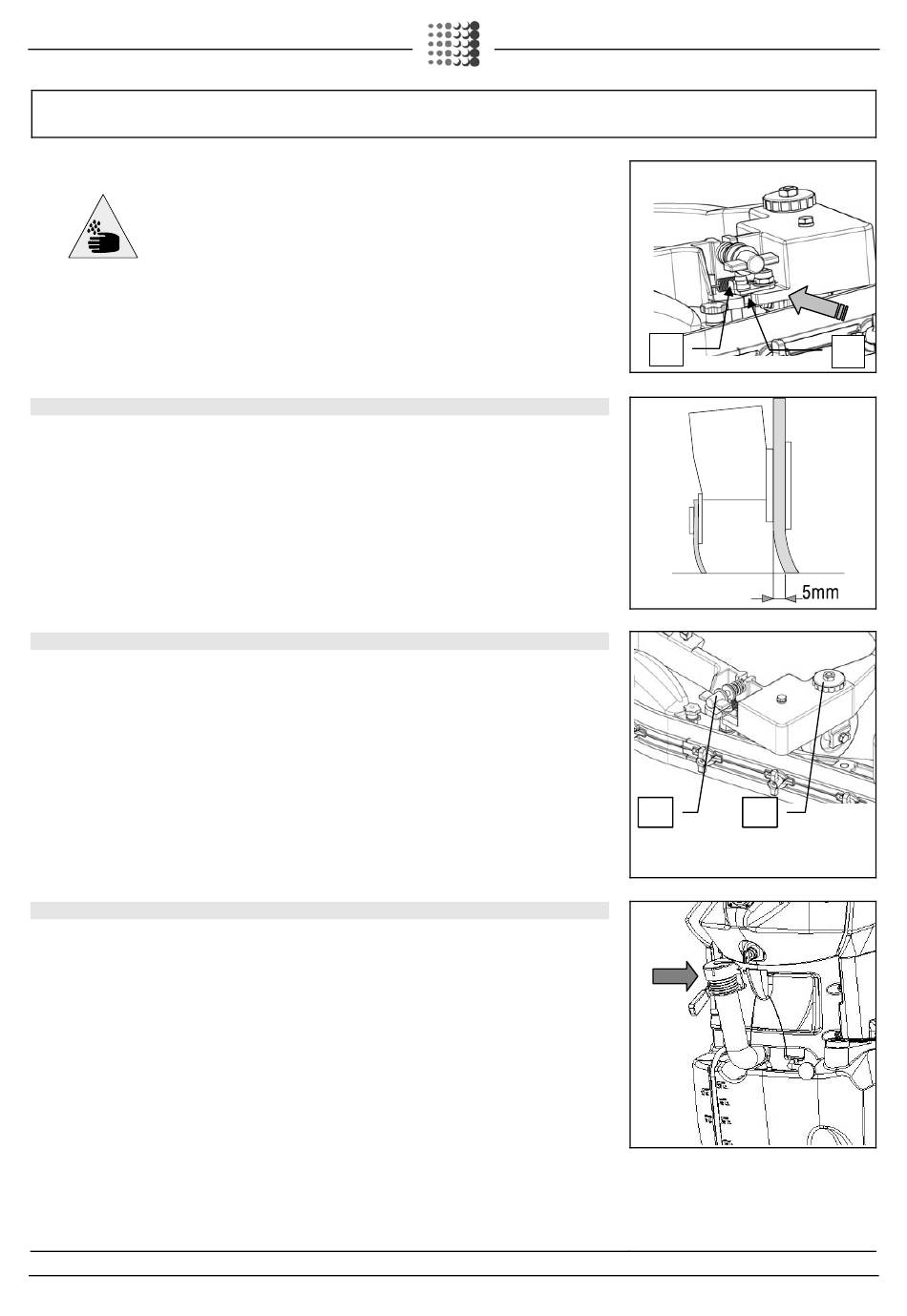

17. ADJUSTING THE SQUEEGEE INCLINATION

When moving, the rear rubber should be slightly tilted back in a uniform manner at an angle of about 45
degrees to the floor along its entire length of about 5mm. If it is necessary to increase the bend of the
rubber in the central part, you must tilt the squeegee backwards, rotating the adjuster (1) anticlockwise. To
increase the bend of the rubber at the sides of the squeegee, rotate the set screw clockwise. When fully
adjusted, fix the lock nut.

18. ADJUSTING THE SQUEEGEE HEIGHT

The height of the squeegee must be adjusted on the basis of the state of wear and tear of the rubber. To
do this, turn the knob (2) anticlockwise to raise the squeegee, and clockwise to lower it.
Remarks: the right and left wheels must be adjusted to the same level, so the squeegee can work parallel
to the floor.

19. RECOVERY TANK

Make sure the recovery tank is empty, otherwise empty it completely.
Check the cap of the drainage tube (on the rear of the machine) is correctly closed.
MACHINE PREPARATION
