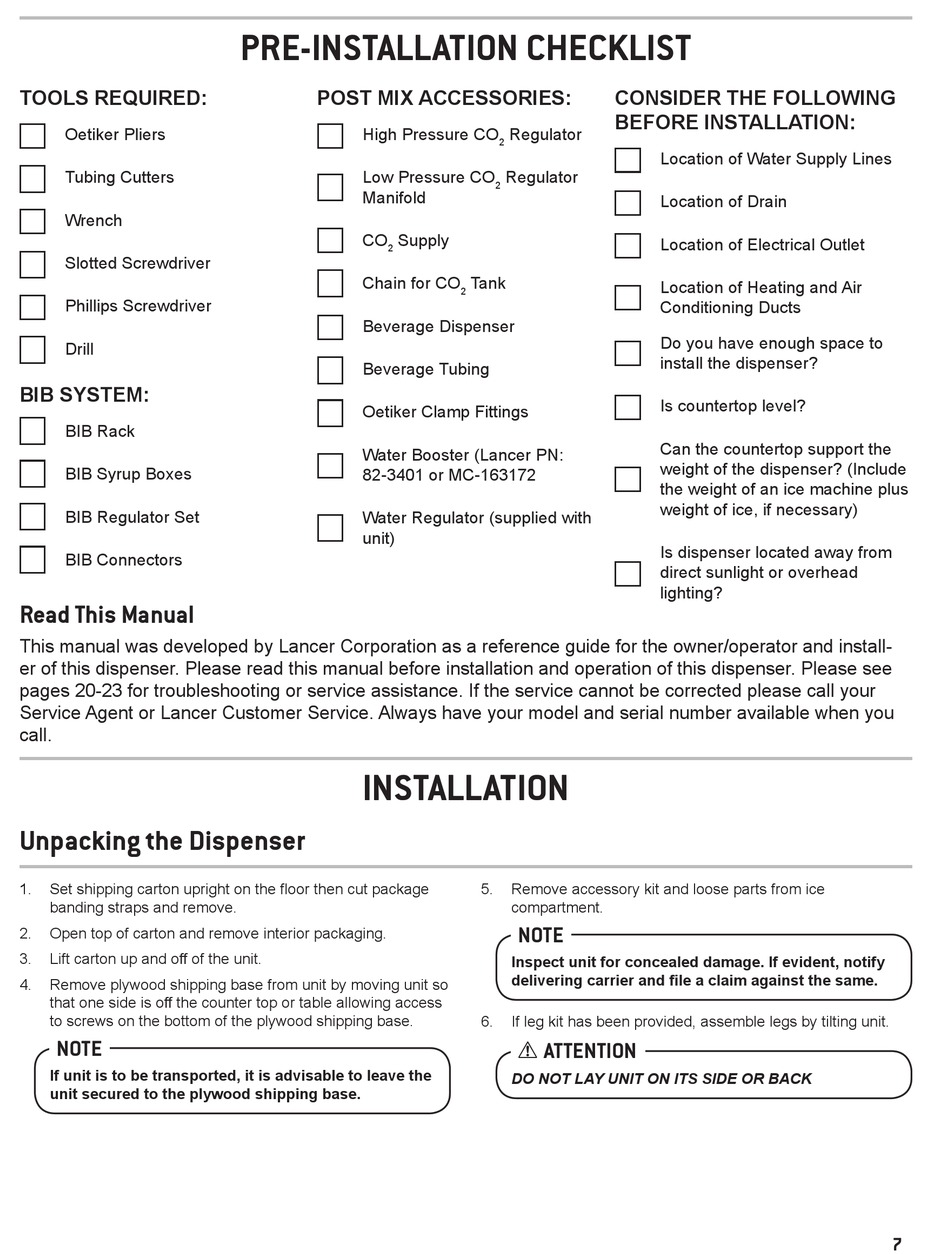

TOOLS REQUIRED:
Oetiker Pliers
Tubing Cutters
Wrench
Slotted Screwdriver
Phillips Screwdriver
Drill
BIB SYSTEM:
BIB Rack
BIB Syrup Boxes
BIB Regulator Set
BIB Connectors
Read This Manual
This manual was developed by Lancer Corporation as a reference guide for the owner/operator and install-
er of this dispenser. Please read this manual before installation and operation of this dispenser. Please see
pages 20-23 for troubleshooting or service assistance. If the service cannot be corrected please call your
Service Agent or Lancer Customer Service. Always have your model and serial number available when you
call.

Unpacking the Dispenser

1.
Set shipping carton upright on the floor then cut package
banding straps and remove.
2.
Open top of carton and remove interior packaging.
3.
Lift carton up and off of the unit.
4.
Remove plywood shipping base from unit by moving unit so
that one side is off the counter top or table allowing access
to screws on the bottom of the plywood shipping base.
NOTE
If unit is to be transported, it is advisable to leave the
unit secured to the plywood shipping base.

PRE-INSTALLATION CHECKLIST

POST MIX ACCESSORIES:
High Pressure CO
Low Pressure CO
Manifold
CO
Supply
2
Chain for CO
Beverage Dispenser
Beverage Tubing
Oetiker Clamp Fittings
Water Booster (Lancer PN:
82-3401 or MC-163172
Water Regulator (supplied with
unit)

INSTALLATION

CONSIDER THE FOLLOWING
BEFORE INSTALLATION:
Regulator
2
Regulator
2
Tank
2
5.
Remove accessory kit and loose parts from ice
compartment.
NOTE
Inspect unit for concealed damage. If evident, notify
delivering carrier and file a claim against the same.
6.
If leg kit has been provided, assemble legs by tilting unit.
! ATTENTION
DO NOT LAY UNIT ON ITS SIDE OR BACK
Location of Water Supply Lines
Location of Drain
Location of Electrical Outlet
Location of Heating and Air
Conditioning Ducts
Do you have enough space to
install the dispenser?
Is countertop level?
Can the countertop support the
weight of the dispenser? (Include
the weight of an ice machine plus
weight of ice, if necessary)
Is dispenser located away from
direct sunlight or overhead
lighting?
7
