IBD Series 4500 30"
B
C
D
E

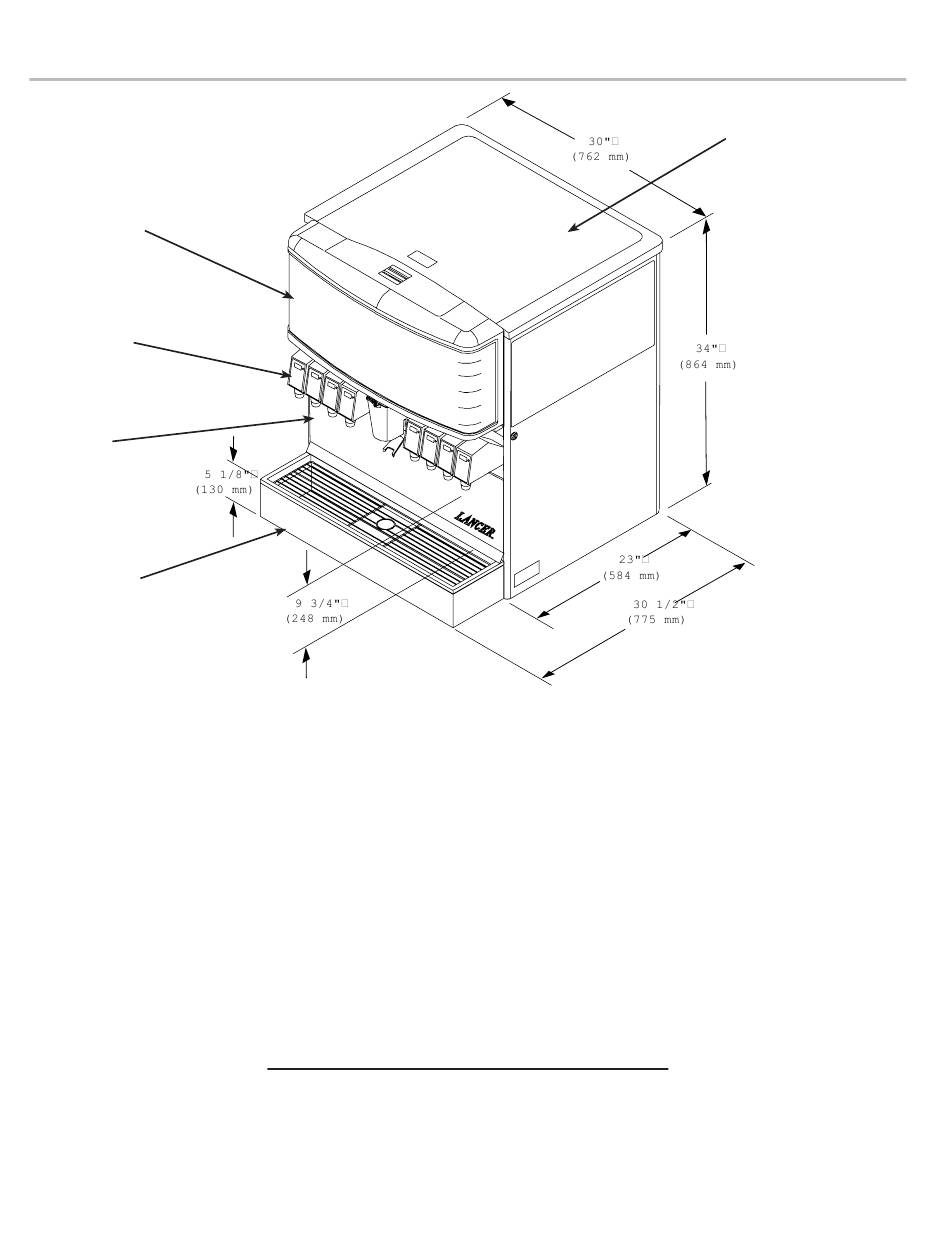

DIMENSIONS
Width: 30.0 inches (762 mm)
Depth: 30.5 inches (775 mm)
Height: 34.0 inches (864 mm)
WEIGHT
Shipping: 305 lbs (139 kg)
Empty (without Ice): 275 lbs (125 kg)
Ice Capacity: 250 lbs (114 kg)
ELECTRICAL
115 VAC / 60 Hz / 3.6 Amps
230 VAC / 50-60 Hz / 1.8 Amps
This unit emits a sound pressure level below 70 dB
PLAIN WATER SUPPLY
Min Flowing Pressure: 25 PSIG (0.172 MPA)
Max Flowing Pressure: 50 PSIG (0.345 MPA)
CARBONATED WATER SUPPLY
Min Flowing Pressure: 25 PSI (0.172 MPA)
Max Static Pressure: 50 PSI (0.345 MPA)
CARBON DIOXIDE (CO
Min Pressure: 70 PSIG (0.483 MPA)
Max Pressure: 80 PSIG (0.552 MPA)
FITTINGS
Plain Water Inlet: 3/8 inch barb
Brand Syrup Inlets: 3/8 inch barb
A
A. Top Cover
B. Merchandiser
C. Valves
D. Splash Plate
E. Drip Tray
) SUPPLY
2
5
