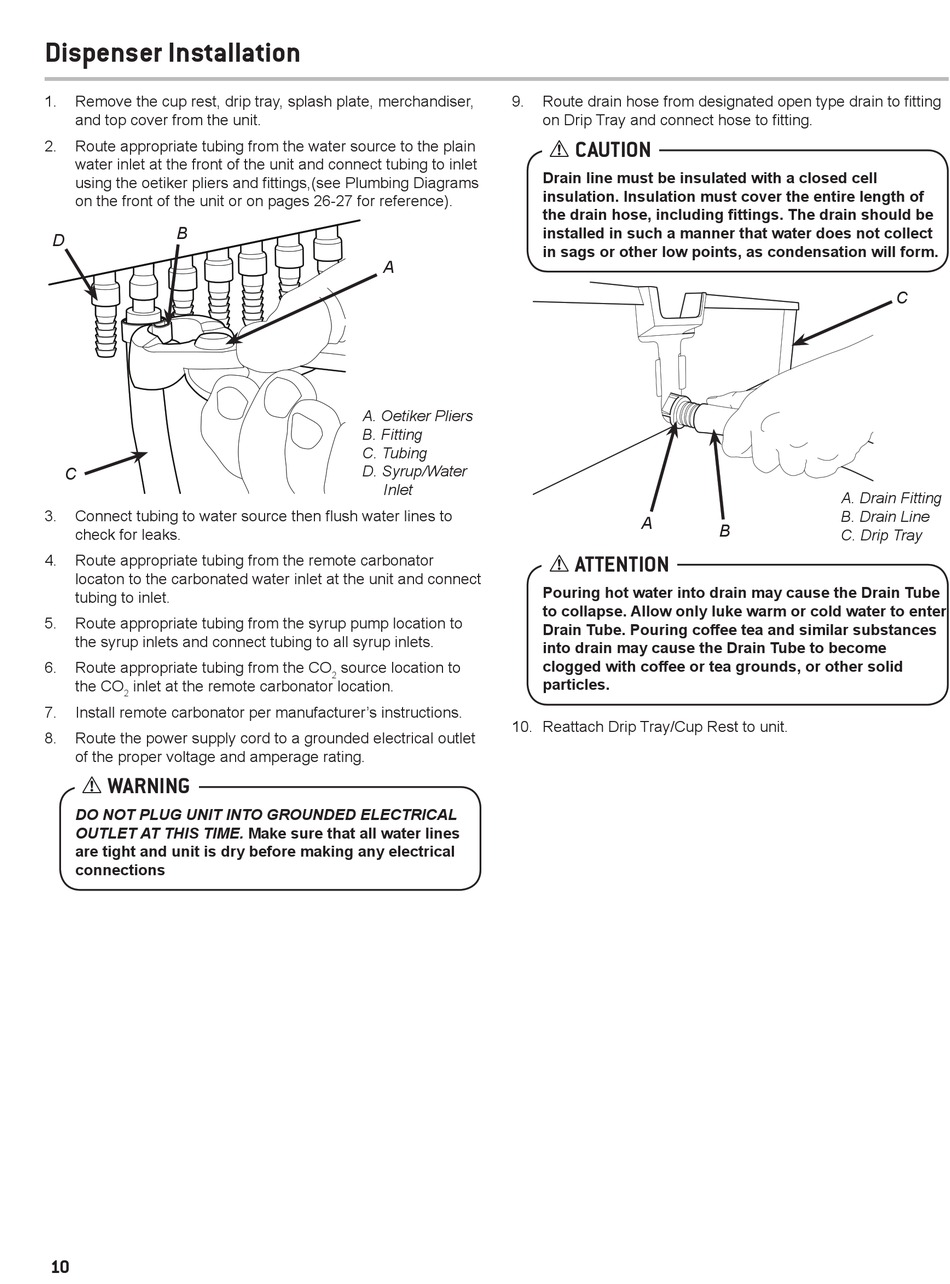

Dispenser Installation

1. Remove the cup rest, drip tray, splash plate, merchandiser,
and top cover from the unit.
2. Route appropriate tubing from the water source to the plain
water inlet at the front of the unit and connect tubing to inlet
using the oetiker pliers and fittings,(see Plumbing Diagrams
on the front of the unit or on pages 26-27 for reference).
B
D
C
3. Connect tubing to water source then flush water lines to
check for leaks.
4. Route appropriate tubing from the remote carbonator
locaton to the carbonated water inlet at the unit and connect
tubing to inlet.
5. Route appropriate tubing from the syrup pump location to
the syrup inlets and connect tubing to all syrup inlets.
6. Route appropriate tubing from the CO
the CO inlet at the remote carbonator location.
2
7. Install remote carbonator per manufacturer's instructions.
8. Route the power supply cord to a grounded electrical outlet
of the proper voltage and amperage rating.
! WARNING
DO NOT PLUG UNIT INTO GROUNDED ELECTRICAL
OUTLET AT THIS TIME. Make sure that all water lines
are tight and unit is dry before making any electrical
connections
10
9.
A
A. Oetiker Pliers
B. Fitting
C. Tubing
D. Syrup/Water
Inlet
source location to
2
10. Reattach Drip Tray/Cup Rest to unit.
Route drain hose from designated open type drain to fitting
on Drip Tray and connect hose to fitting.
! CAUTION
Drain line must be insulated with a closed cell
insulation. Insulation must cover the entire length of
the drain hose, including fittings. The drain should be
installed in such a manner that water does not collect
in sags or other low points, as condensation will form.
A
B
! ATTENTION
Pouring hot water into drain may cause the Drain Tube
to collapse. Allow only luke warm or cold water to enter
Drain Tube. Pouring coffee tea and similar substances
into drain may cause the Drain Tube to become
clogged with coffee or tea grounds, or other solid
particles.
C
A. Drain Fitting
B. Drain Line
C. Drip Tray
