Installation:
1. Insert a new Ice shield and align with holes.
2. Replace prox ring and align holes.
3. Replace the four screws holding the prox ring and tighten using the T10 torx bit.
ICE SHIELD
PROX RING

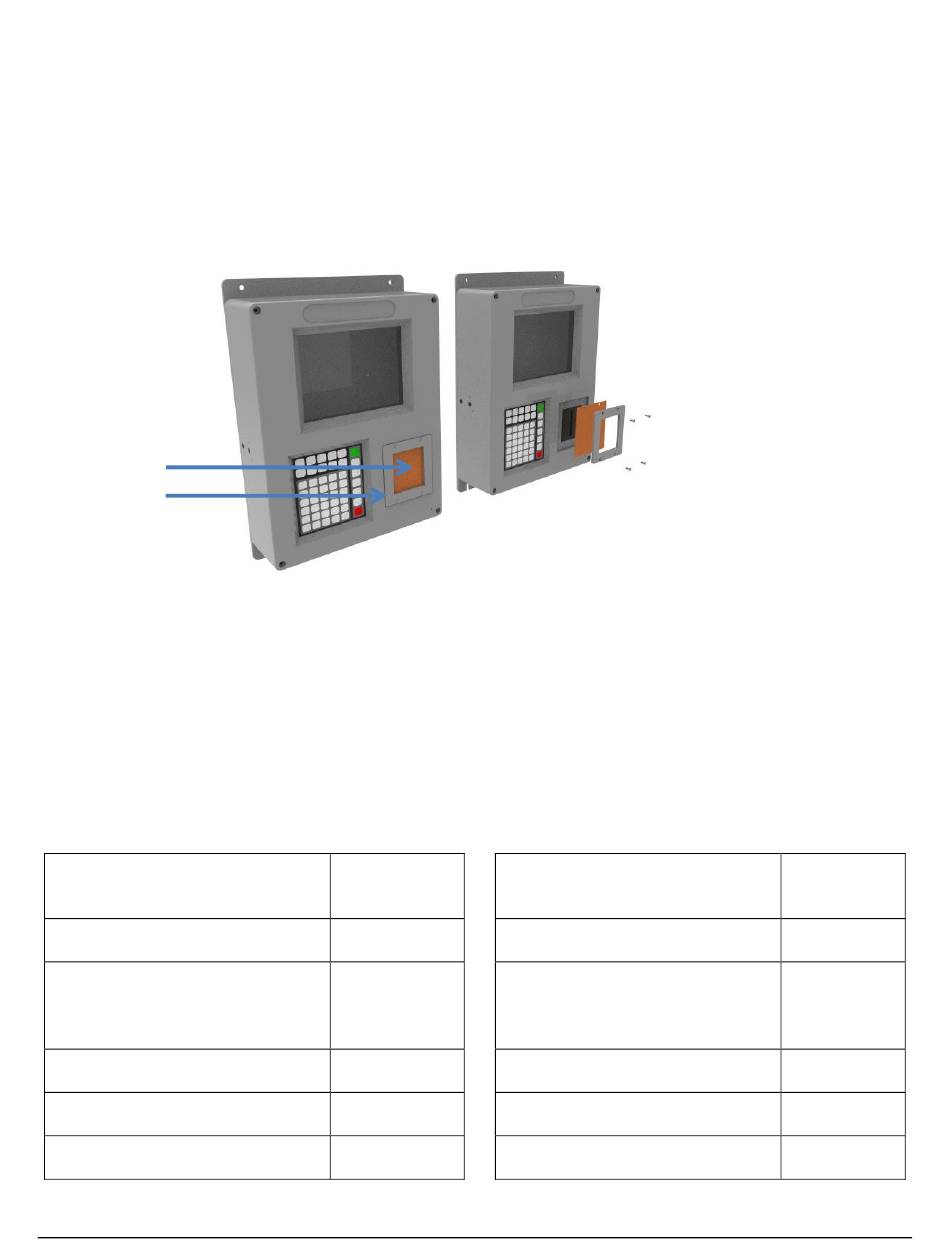

Figure 7.14
7.8 Overview Parts List and Part Numbers
The Toptech replacement part numbers are shown in the table below:
Part
DIV-2 Display Assembly
Card reader (current) Prox Non
Captive, captive, TWIC (RCU
II)
DIV-2 Keypad
Magnetic Switch Assembly
Magnetic Bolt
Ice Shield Assembly Installation Slotted Card Holder
Part Number
4720
4726
1257
1900
1901
Part
AC Power Supply Board :
Revision 1.0
Revision 1.1
DC Power Supply Board :
Revision 1.0
Part
Number
obsolete
4728
obsolete
77
