5.4.10

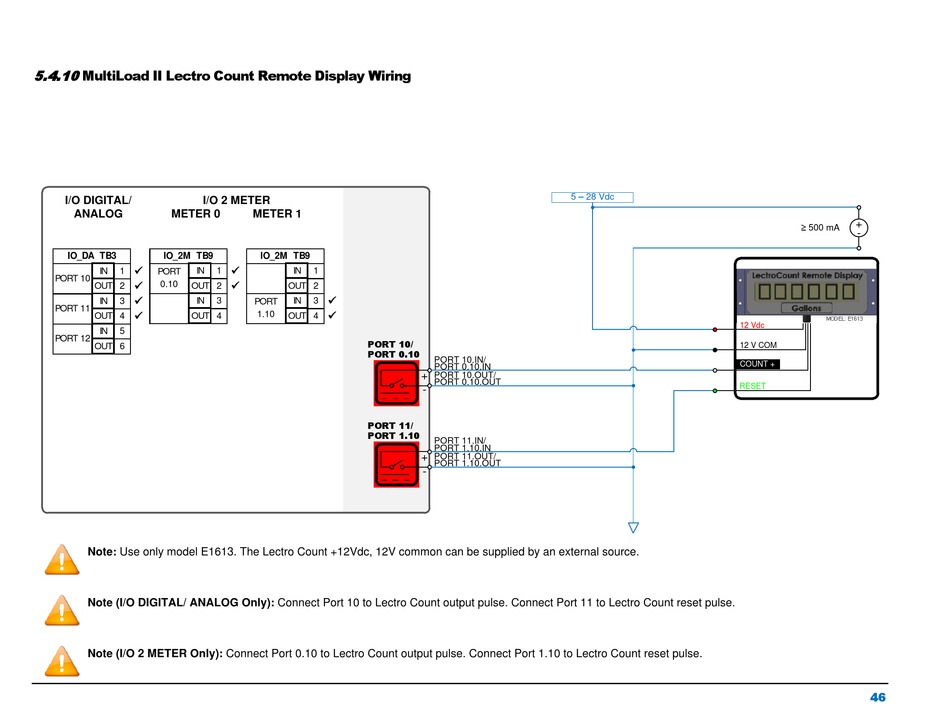

MultiLoad II Lectro Count Remote Display Wiring

I/O DIGITAL/ I/O 2 METER
ANALOG METER 0
IO_DA TB3 IO_2M TB9

IN
IN 1 PORT
PORT 10

0.10
OUT 2 OUT 2

IN 3 IN
PORT 11

OUT 4 OUT 4
IN 5
PORT 12
OUT 6
Note: Use only model E1613. The Lectro Count +12Vdc, 12V common can be supplied by an external source.
Note (I/O DIGITAL/ ANALOG Only): Connect Port 10 to Lectro Count output pulse. Connect Port 11 to Lectro Count reset pulse.
Note (I/O 2 METER Only): Connect Port 0.10 to Lectro Count output pulse. Connect Port 1.10 to Lectro Count reset pulse.
METER 1
IO_2M TB9

1 IN 1

OUT 2

3 PORT IN 3

1.10
OUT 4
PORT 10/
PORT 0.10
PORT 11/
PORT 1.10
5 – 28 Vdc
PORT 10.IN/
PORT 0.10.IN
+ PORT 10.OUT/
PORT 0.10.OUT
-
PORT 11.IN/
PORT 1.10.IN
+ PORT 11.OUT/
PORT 1.10.OUT
-
+
≥ 500 mA
-
12 Vdc
12 V COM
COUNT +
RESET
