The MultiLoad II/ RCU II DIV-2 has been constructed with replaceable modules or sub-assemblies that
are available from Toptech. These include:
- CPU Subassembly (CPU Chassis, CPU Board, Power Supply/ COM Board, I/O Board)
-
Display Subassembly (Active Matrix Display and Display Board)
-
Keypad
- Prox Reader
-
W&MS Subassembly
-
Iceshield
The following sections describe how to remove and replace each subassembly and, when applicable,
how to further disassemble the subassembly.

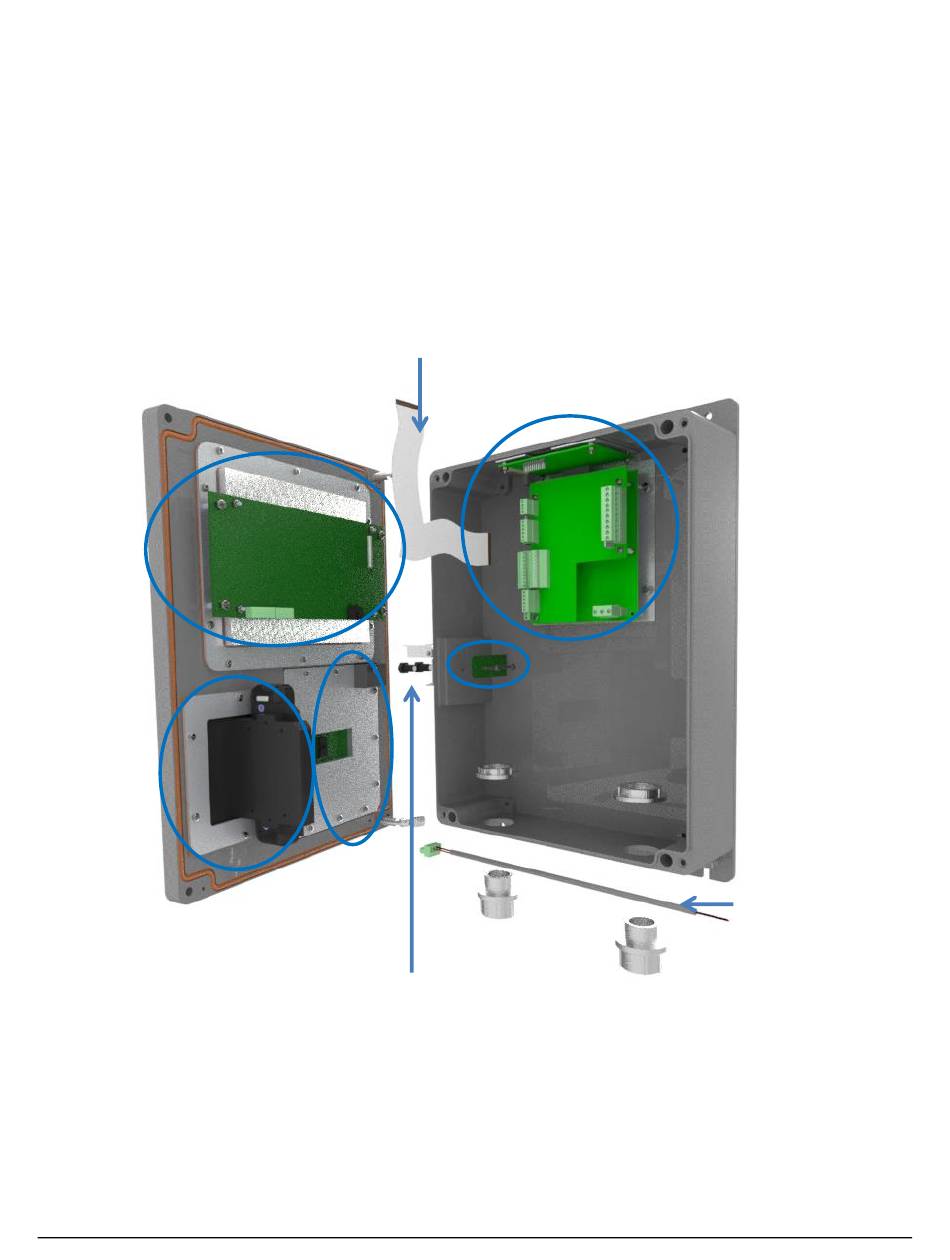

Figure 7.2
DISPLAY INTERFACE
CABLE
2 2
3
4
W&M MAGNETIC
BOLTS
ML II/ RCU II Div2 Unit Assembly Slotted Card Holder with MT11
1
5
1
2
3
4
5
BACKLIGHT POWER
CABLE
