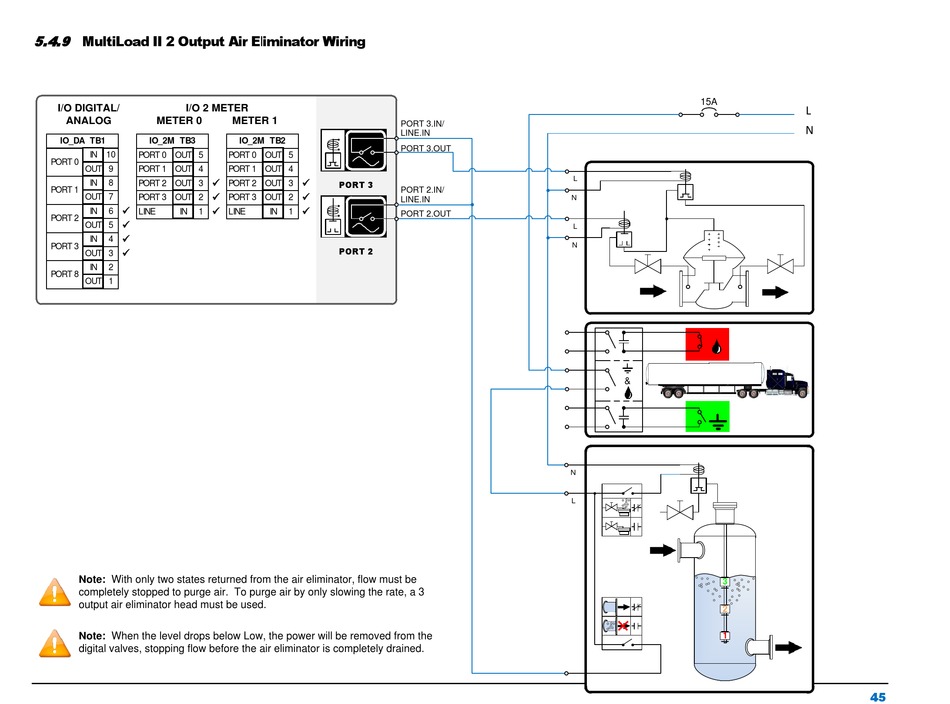

MultiLoad II 2 Output Air Eliminator Wiring

I/O DIGITAL/
I/O 2 METER
ANALOG
METER 0
IO_DA TB1
IO_2M TB3
IN 10
PORT 0 OUT 5
PORT 0
OUT 9
PORT 1 OUT 4
IN
8
PORT 2 OUT 3
PORT 1
OUT 7
PORT 3 OUT 2
IN
6
LINE
IN
1
PORT 2
OUT 5
IN
4
PORT 3
OUT 3
IN
2
PORT 8
OUT 1
Note: With only two states returned from the air eliminator, flow must be
completely stopped to purge air. To purge air by only slowing the rate, a 3
output air eliminator head must be used.
Note: When the level drops below Low, the power will be removed from the
digital valves, stopping flow before the air eliminator is completely drained.
METER 1
PORT 3.IN/
LINE.IN
IO_2M TB2
PORT 3.OUT
PORT 0 OUT 5
PORT 1 OUT 4
PORT 3
PORT 2 OUT 3
PORT 2.IN/
PORT 3 OUT 2
LINE.IN
LINE
IN
1
PORT 2.OUT
PORT 2
15A
L
N
L
N
&
N
L
3
2
1
L
N
45
