5.4.4

MultiLoad II Analog Wiring

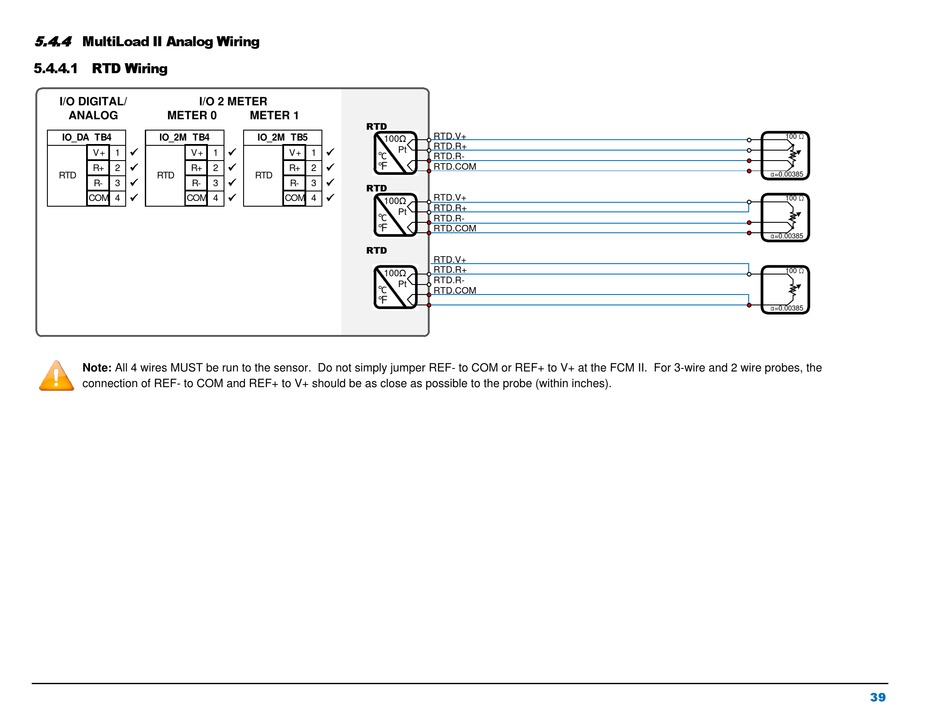

5.4.4.1 RTD Wiring

I/O DIGITAL/ I/O 2 METER
ANALOG METER 0
IO_DA TB4 IO_2M TB4

V+ 1 V+

R+ 2 R+
RTD RTD

R- 3 R-

COM 4 COM 4
Note: All 4 wires MUST be run to the sensor. Do not simply jumper REF- to COM or REF+ to V+ at the FCM II. For 3-wire and 2 wire probes, the
connection of REF- to COM and REF+ to V+ should be as close as possible to the probe (within inches).
METER 1
RTD
IO_2M TB5
100Ω
 
1 V+ 1
°C
 
°F
2 R+ 2
RTD
 
3 R- 3
RTD
 
COM 4
100Ω
°C
°F
RTD
100Ω
°C
°F
RTD.V+
RTD.R+
Pt
RTD.R-
RTD.COM
RTD.V+
RTD.R+
Pt
RTD.R-
RTD.COM
RTD.V+
RTD.R+
RTD.R-
Pt
RTD.COM
100 Ω
α=0.00385
100 Ω
α=0.00385
100 Ω
α=0.00385
