5.4.8

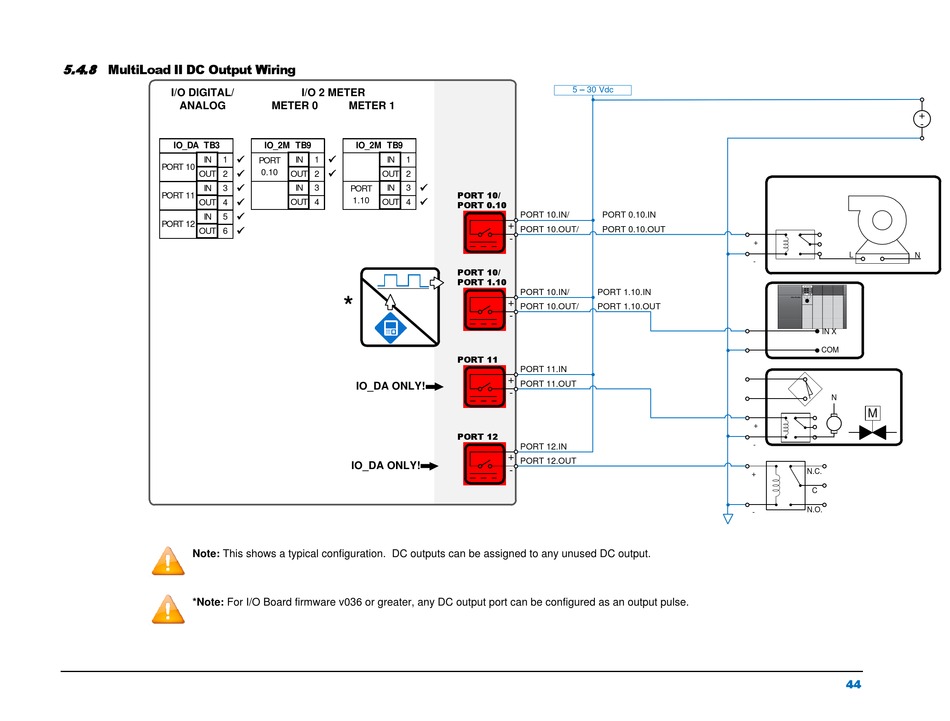

MultiLoad II DC Output Wiring

I/O DIGITAL/
ANALOG
IO_DA TB3

IN 1
PORT 10

OUT 2

IN 3
PORT 11

OUT 4

IN 5
PORT 12

OUT 6
Note: This shows a typical configuration. DC outputs can be assigned to any unused DC output.
*Note: For I/O Board firmware v036 or greater, any DC output port can be configured as an output pulse.
I/O 2 METER
METER 0 METER 1
IO_2M TB9 IO_2M TB9

IN 1 IN 1
PORT

0.10
OUT 2 OUT 2

IN 3 IN 3
PORT
1.10 
OUT 4 OUT 4
*
IO_DA ONLY!
IO_DA ONLY!
5 – 30 Vdc
PORT 10/
PORT 0.10
PORT 10.IN/ PORT 0.10.IN
+
PORT 10.OUT/ PORT 0.10.OUT
-
PORT 10/
PORT 1.10
PORT 10.IN/ PORT 1.10.IN
+
PORT 10.OUT/ PORT 1.10.OUT
-
PORT 11
PORT 11.IN
+
PORT 11.OUT
-
PORT 12
PORT 12.IN
+
PORT 12.OUT
-
+
-
+
L N
-
IN X
COM
N
M
+
-
N.C.
+
C
N.O.
-
44
