3. Remove the prox reader.
Installation with Older Part:
1. Reinstall the prox reader with the two nuts.
2. Connect the prox reader cable to the display subassembly.

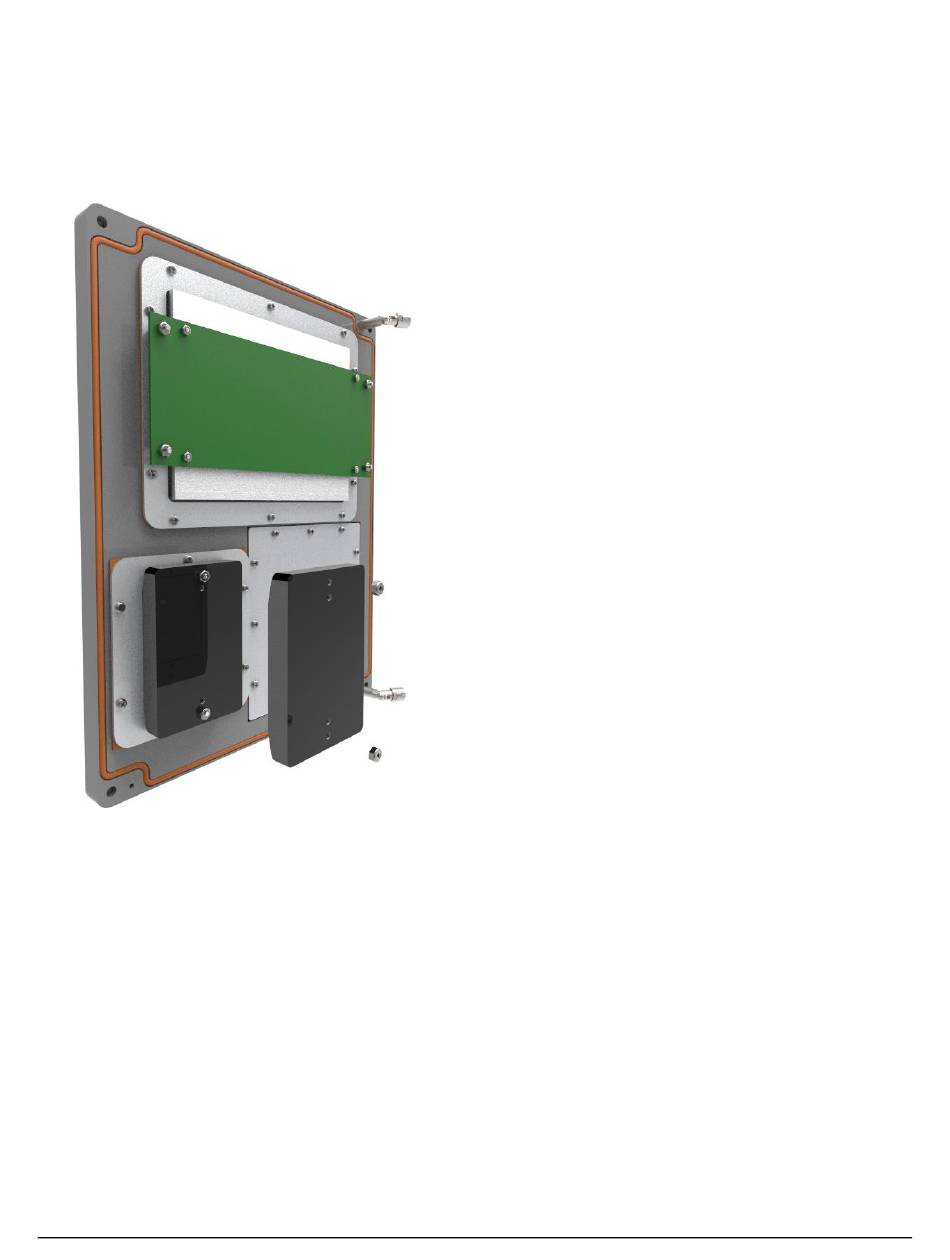

Figure 7.10
7.5.3

Slotted Card Holder Mounted Prox Reader HID (Obsolete) Removal and Replacement:

Replacement part number: 4726
Removal:
1. Disconnect the prox reader cable from the display subassembly.
2. Remove the 2 screws attaching the card reader.
3. Remove the prox reader.
1. Installation with Older Part: Replace the card reader. Orient the LED toward the top.
ML II/ RCU II Div2 Cover Assembly Prox Bracket Mount Thinline II (Obsolete)
