5.4.13

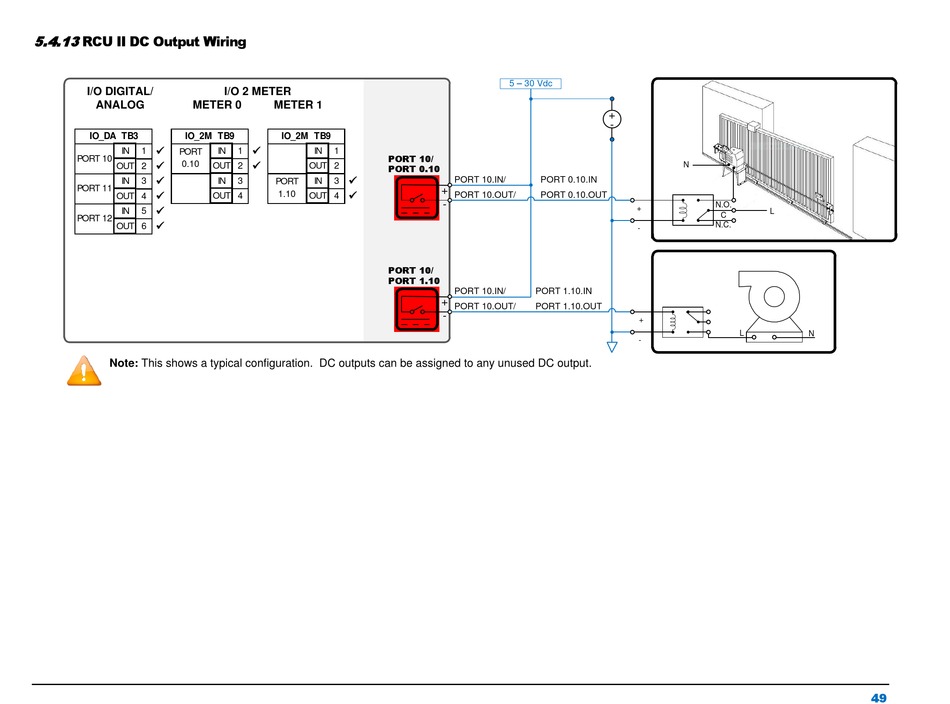

RCU II DC Output Wiring

I/O DIGITAL/
ANALOG METER 0
IO_DA TB3 IO_2M TB9

IN 1
PORT
PORT 10

0.10
OUT 2

IN 3
PORT 11

OUT 4

IN 5
PORT 12

OUT 6
Note: This shows a typical configuration. DC outputs can be assigned to any unused DC output.
I/O 2 METER
METER 1
IO_2M TB9

IN 1 IN 1
PORT 10/

OUT 2 OUT 2
PORT 0.10

IN 3 IN 3
PORT

1.10
OUT 4 OUT 4
PORT 10/
PORT 1.10
5 – 30 Vdc
+
-
PORT 10.IN/ PORT 0.10.IN
+
PORT 10.OUT/ PORT 0.10.OUT
-
PORT 10.IN/ PORT 1.10.IN
+
PORT 10.OUT/ PORT 1.10.OUT
-
N
N.O.
+
L
C
N.C.
-
+
L
N
-
49
