Slotted Card Holder Mounted Twic Reader (Obsolete) Removal And Replacement; Figure 7.11 Ml Ii/ Rcu Ii Div2 Cover With Slotted Card Holder Thinline Ii (Obsolete) - Toptech MultiLoad II DIV-2 Installation Manual

2. Reinstall the screws and lockwasher.
3. Connect the prox reader cable to the display subassembly.

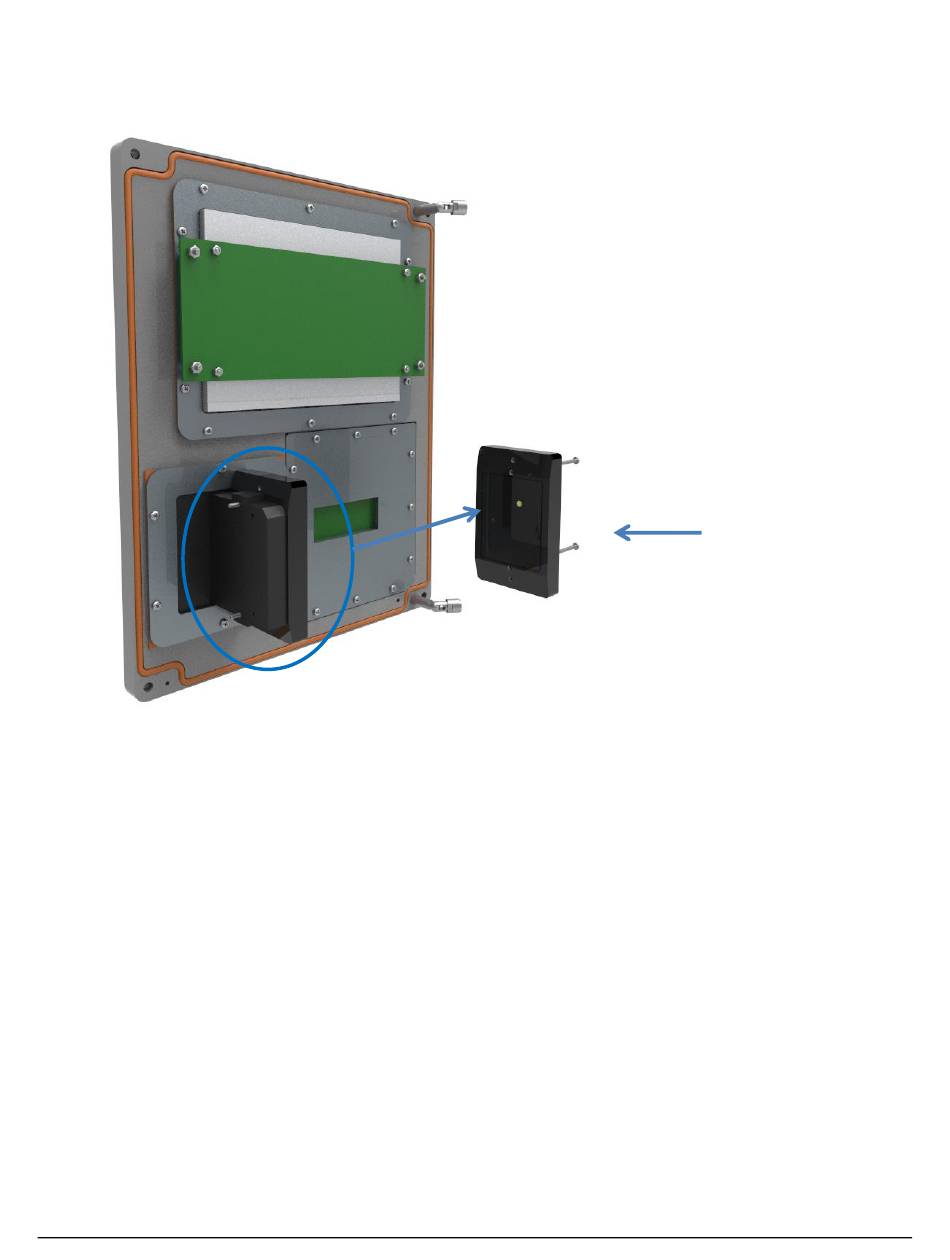

Figure 7.11
7.5.4

Slotted Card Holder Mounted TWIC Reader (Obsolete) Removal and Replacement:

Replacement part number: 4726
Removal:
1. Disconnect the prox reader cable from the display subassembly.
2. Remove the 2 screws attaching the card reader.
3. Remove the prox reader.
Installation with Older Part:
1. Replace the card reader. Orient the LED toward the top.
2. Reinstall the screws and lockwasher.
ML II/ RCU II Div2 Cover with Slotted Card Holder Thinline II (Obsolete)
PROX
READER
