Figure 6.4

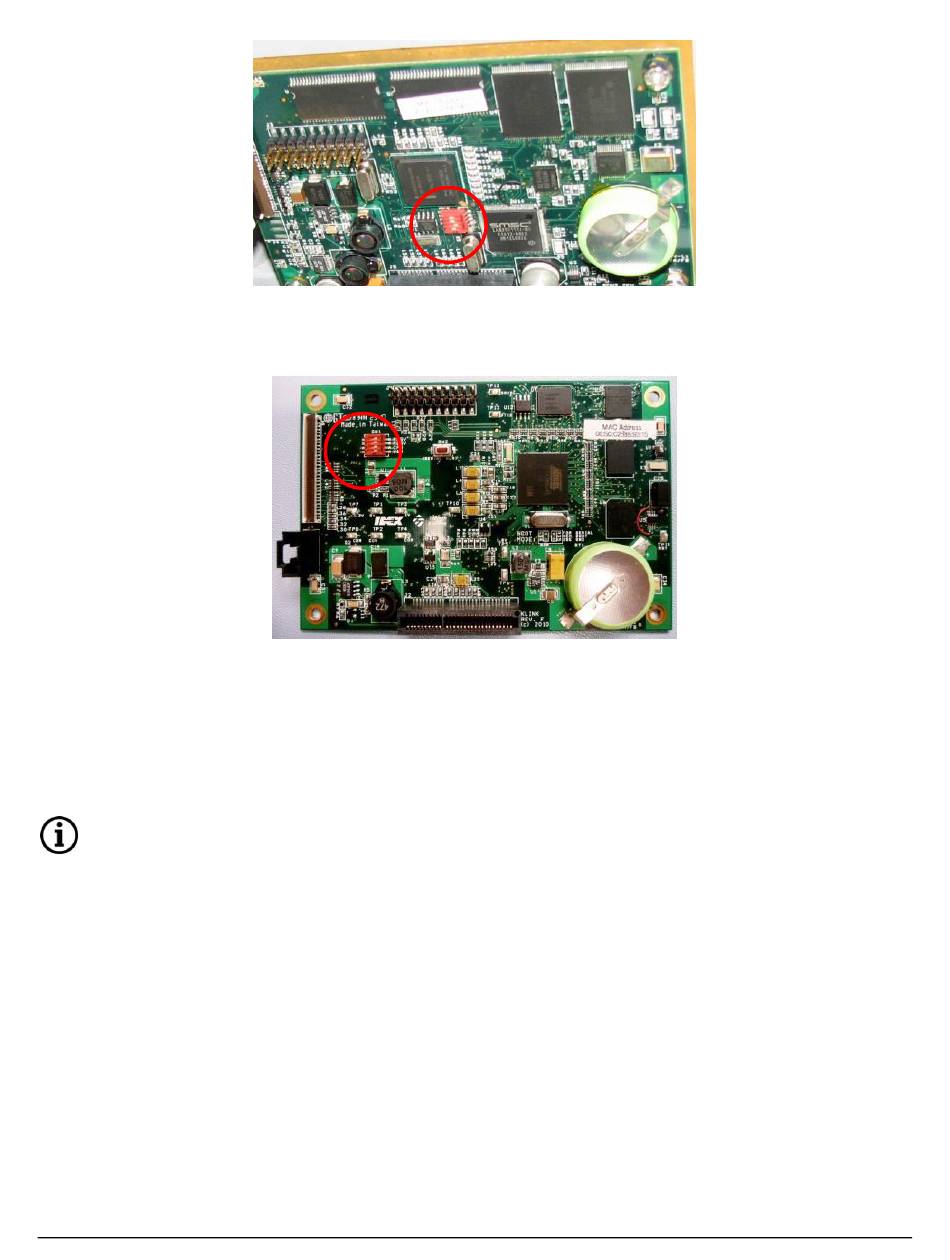

Figure 6.5 CPU DIP Switches for Program and W&M Access (rev 2.0) Field Switch Access Control
The MultiLoad II also has the ability to accept field inputs for the program mode and W&M access
switches. Review the "MultiLoad II User Guide" for more information.
RCU II
INPUTS RECEIVED FROM EXTERNAL FIELD DEVICES CANNOT BE CONFIGURED TO CONTROL
PROGRAM MODE ACCESS
6.2

MultiLoad II/ RCU II DIV-2 Keypad

The MultiLoad II/ RCU II DIV-2 keypad has 47 keys, including alpha, numeric, and function keys, which
are used to:
-
Select menu items and fields
-
Enter data in fields
- Initiate actions
- Return to previous screens
CPU DIP Switches for Program and W&M Access (rev 1.0)
(MultiLoad II Only)
. W
EIGHTS AND MEASURES FUNCTIONALITY IS UNDEFINED FOR
RCU II
56
