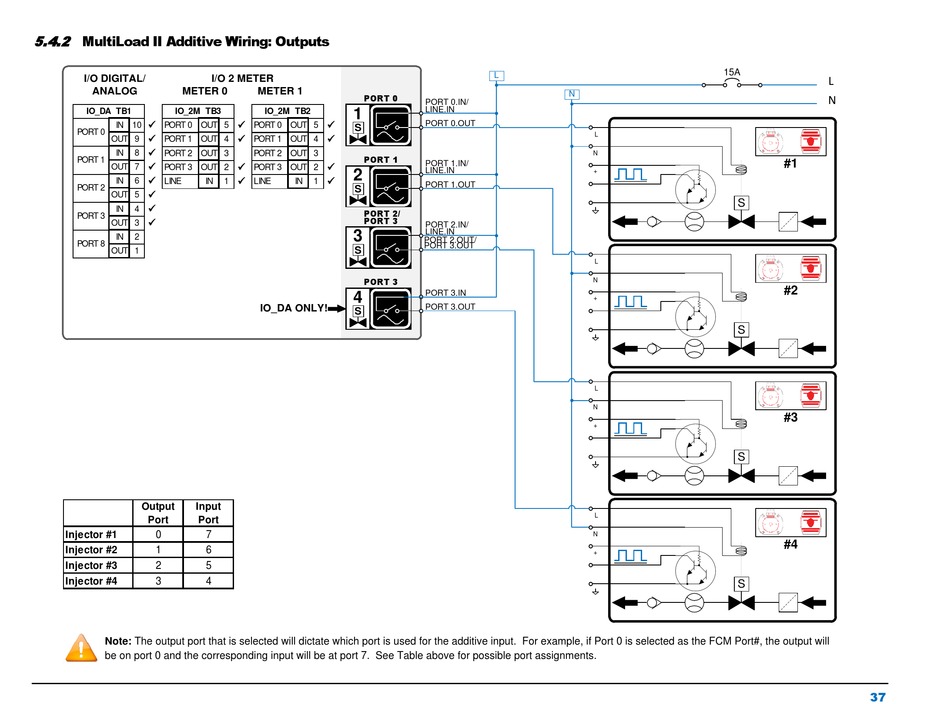

MultiLoad II Additive Wiring: Outputs

I/O DIGITAL/ I/O 2 METER
ANALOG METER 0
IO_DA TB1 IO_2M TB3

IN 10 PORT 0 OUT 5
PORT 0

OUT 9 PORT 1 OUT 4

IN 8 PORT 2 OUT 3
PORT 1

OUT 7 PORT 3 OUT 2

IN 6
LINE IN
PORT 2

OUT 5

IN 4
PORT 3

OUT 3
IN 2
PORT 8
OUT 1
Output Input
Port Port
Injector #1 0 7
Injector #2 1 6
Injector #3 2 5
Injector #4 3 4
Note: The output port that is selected will dictate which port is used for the additive input. For example, if Port 0 is selected as the FCM Port#, the output will
be on port 0 and the corresponding input will be at port 7. See Table above for possible port assignments.
