I T E M

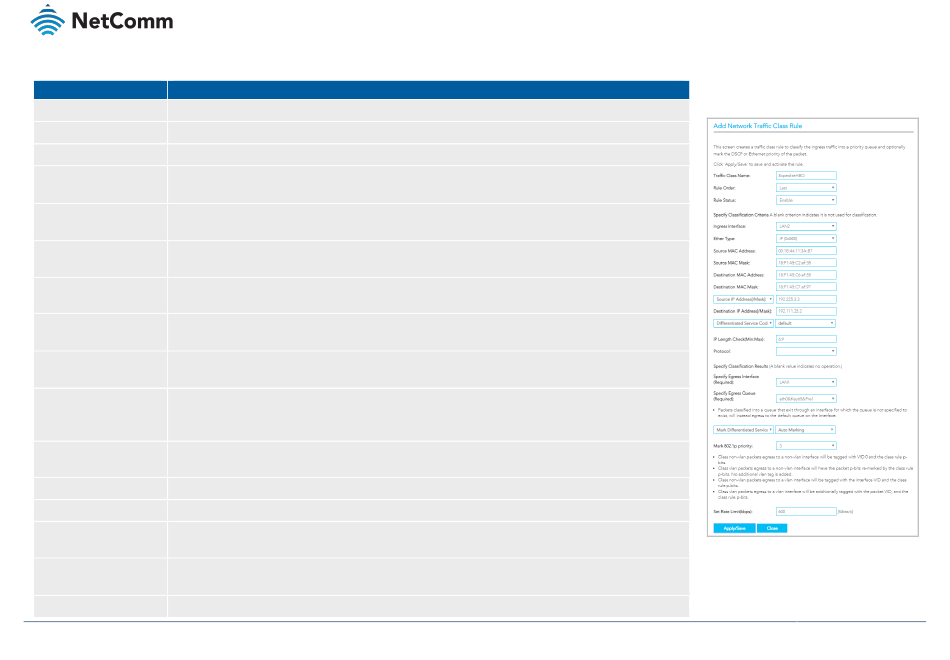

Traffic Class Name Enter a name reflecting the priority of the defined rule, for example: PC1HighPriority
Rule Order. Leave as Last.
Rule Status Set to Enable.
Class Interface Set the Class Interface according to how the device connects to the router.
Options are: LAN, Wireless, Local and USB
Ether Type Set the Ether Type to IP(0x800).
Other options include ARP(0x8086), Ipv6(0x86DD), PPPoE_DISC(0x8863), 8865(0x8865), 8866(0x8866), 8021Q(0x8100).
Source MAC Address Enter the Source MAC Address of the device, the unique 12 character signature with every 2 characters separated by
a colon(:), that you previously entered to reserve the device's IP address.
Source IP Address Enter the Source IP Address of the device that you previously entered into the Static IP Lease List, in the range of
192.168.1.x
Destination MAC Address Enter a Destination MAC Address if the connection is to a single device. This is useful for VPN connections.
If you wish the destination MAC address to be any address leave the field blank.
Destination IP Address Enter a Destination IP Address if the connection is to a single device. This is useful for VPN connections.
If you wish the destination IP address to be any address leave the field blank.
Destination Subnet Mask Enter a Destination Subnet Mask if you have entered a Destination MAC address and Destination IP address.
This would normally be 255.255.255.0 unless your system administrator advises otherwise.
If you have not entered a Destination MAC or IP address leave the field blank.
Differentiated Service Code Set the Differentiated Service Code Point (DSCP) Check to EF(101110).
Point (DSCP)
Protocol Set the Protocol to TCP. Other options include UDP, ICMP or IGMP.
Assign Classification Queue Set Priority 1 for the highest priority with priority 3 being the lowest. Priority 2 is in between
Mark Differentiated Service Set Mark Differentiated Service Code Point (DSCP) as AF11(001010)
Code Point (DSCP)
Mark 802.1p Priority The scale 0~7, with 6 and 7 are reserved for networking performance.
Set 5 as the highest priority, set 0 for lowest priority.
Apply/Save button Click to save the new Network Class Traffic Rule.
