NetComm Wireless NF18ACV Quick Start Manual

NOW NETCOMM
NF18ACV
QUICK START GUIDE
CONNECTING TO
YOUR ROUTER SETUP
DSL
A
A
Connect the supplied RJ-11
cable to the DSL port on the
back of the router and to
the phone port that supplies
your DSL service.
B
Connect the supplied power
adapter to your router.
C
Press the on/off button to
power the router on.
D
Connect your computer
to your router using the
supplied yellow ethernet
cable (RJ-45).
ADSL/VDSL
Telephone
2 1 4
CONNECTING YOUR WIRELESS
DEVICES TO THE ROUTER
The router comes shipped with the wireless
function enabled so there is no configuration
necessary in order to use the wireless.
1. Ensure Wi-Fi is enabled on your device
(eg. computer/smartphone/gaming console).
2. Scan for wireless networks in your area and
connect to the network name that matches the
wireless network name found on the wireless security card (included in the box).
3. When prompted for your wireless security settings, enter the wireless security key listed
on your wireless security card.
D
Ethernet
3 2 1
Package includes:

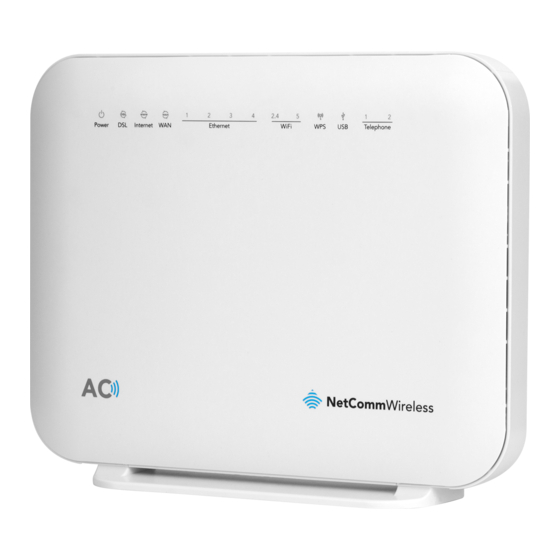

Netcomm NF18ACV
Wi-Fi Gigabit router
Power Adaptor
Ethernet Cable (RJ-45)
Line Cable (RJ-11)
Wireless Security Card
THIS IS REALLY, REALLY
IMPORTANT!
B
WAN USB 2
Power
Reset
NetCommWireless
Wireless Security Card
Wireless Network Name (SSID) Wireless Security Key
NetComm 1234 abcdefhijk
C
