Interfaces

The NF18ACV is designed to be placed on a desktop with the front facing outward.
All of the cables exit from the rear for easy organization and the power ON/OFF and WPS
buttons on the side.

Front view

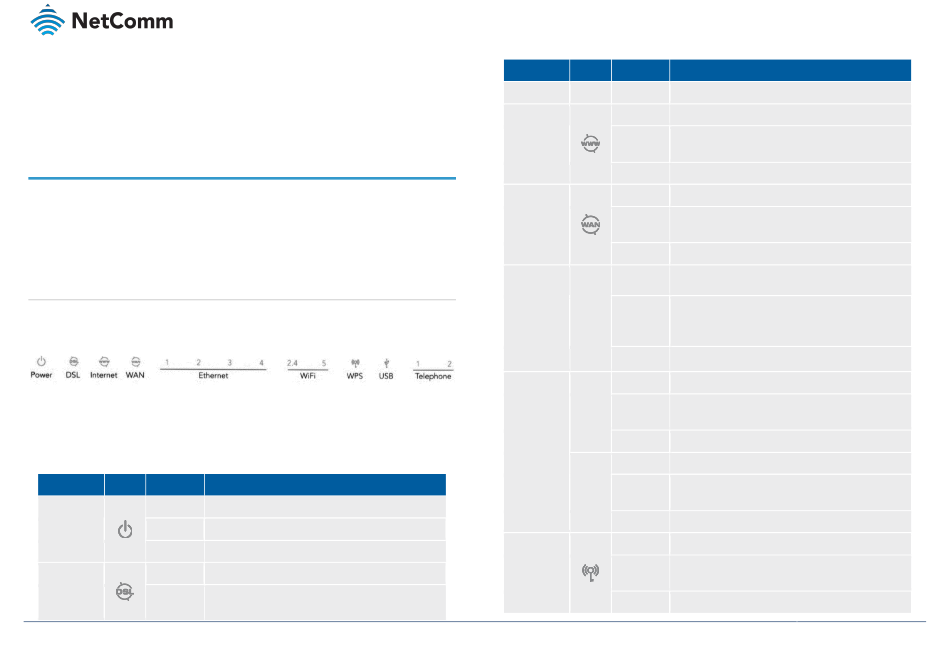

The LED display visible on the front of the NF18ACV provides you with information about
network activity and the device status.

LED indicators

The following table contains an explanation of each of the indicator lights on the front of the
NF18ACV.
L A B E L I C O N C O L O U R
Red The NF18ACV is powered on and initialising.
Power
Green The NF18ACV is powered on and operating normally.
Off The power is off.
Off No DSL signal detected.
DSL
Green
Synching
Blinking
VDSL/ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP – NF18ACV
UG01040 v 1.04 December 2018
D E F I N I T I O N
L A B E L I C O N C O L O U R
Green DSL synchronized.
Green The NF18ACV is connected to an internet service.
Green Data is being transmitted to or from the internet.
Internet
Blinking
Off The NF18ACV is not connected to the internet.
Green A device is connected to the Ethernet WAN port.
Green Data is being transmitted to or from the WAN.
WAN
Blinking
Off No device is connected to the Ethernet WAN port.
Green A device is connected to the Ethernet LAN port.
1
2
Green Data is being transmitted to or from the Ethernet
Ethernet
3
Blinking LAN port.
4
Off No device is connected to the Ethernet LAN port.
Green WiFi is enabled.
Green Data is being transmitted to or from the Wireless
2.4
Blinking interface.
Off WiFi is disabled.
WiFi
Green WiFi is enabled.
Green Data is being transmitted to or from the Wireless
5
Blinking interface.
Off WiFi is disabled.
Blue WPS (WiFi Protected Setup) is enabled.
Blue WPS pairing is triggered.
WPS
Blinking
Off WPS is disabled.
D E F I N I T I O N
