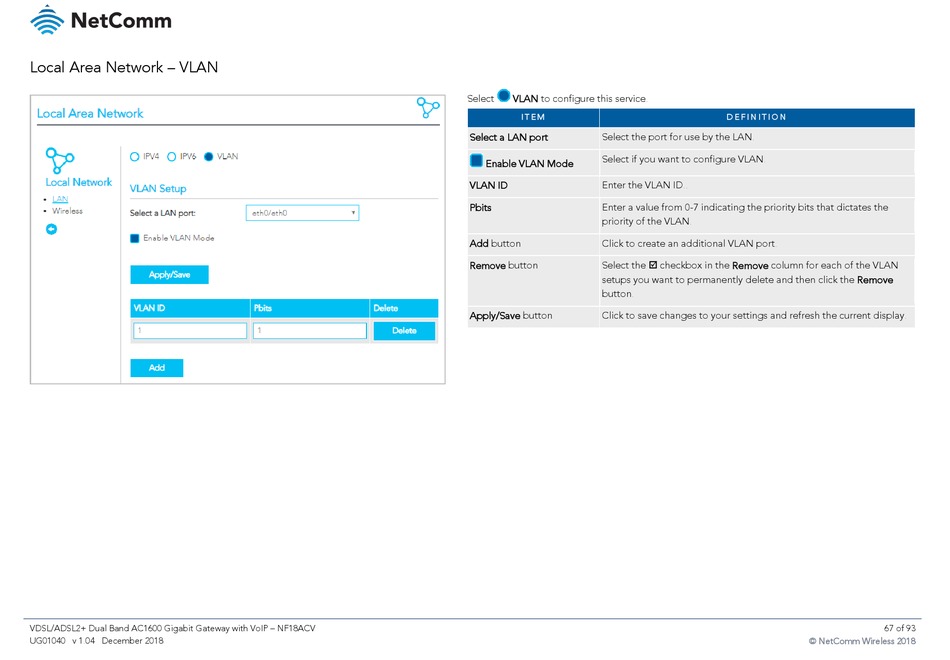

Local Area Network – VLAN

VDSL/ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP – NF18ACV

UG01040 v 1.04 December 2018

Select

VLAN to configure this service.

I T E M

Select a LAN port

Select the port for use by the LAN.

Select if you want to configure VLAN.

Enable VLAN Mode

VLAN ID

Enter the VLAN ID..

Pbits

Enter a value from 0-7 indicating the priority bits that dictates the

priority of the VLAN.

Add button

Click to create an additional VLAN port.

Remove button

Select the  checkbox in the Remove column for each of the VLAN

setups you want to permanently delete and then click the Remove

button.

Apply/Save button

Click to save changes to your settings and refresh the current display.

D E F I N I T I O N

67 of 93
