Robustel MEG5000 User Guide
Item
Server Port
Interface Type
Authentication Type
Username
Password
Local IP
Remote IP
Encrypt Algorithm
Renegotiation
Interval
Keepalive Interval
Keepalive Timeout
Private Key Password
Enable Compression
Enable NAT
Verbose Level
RT_UG_MEG5000_v.1.0.3

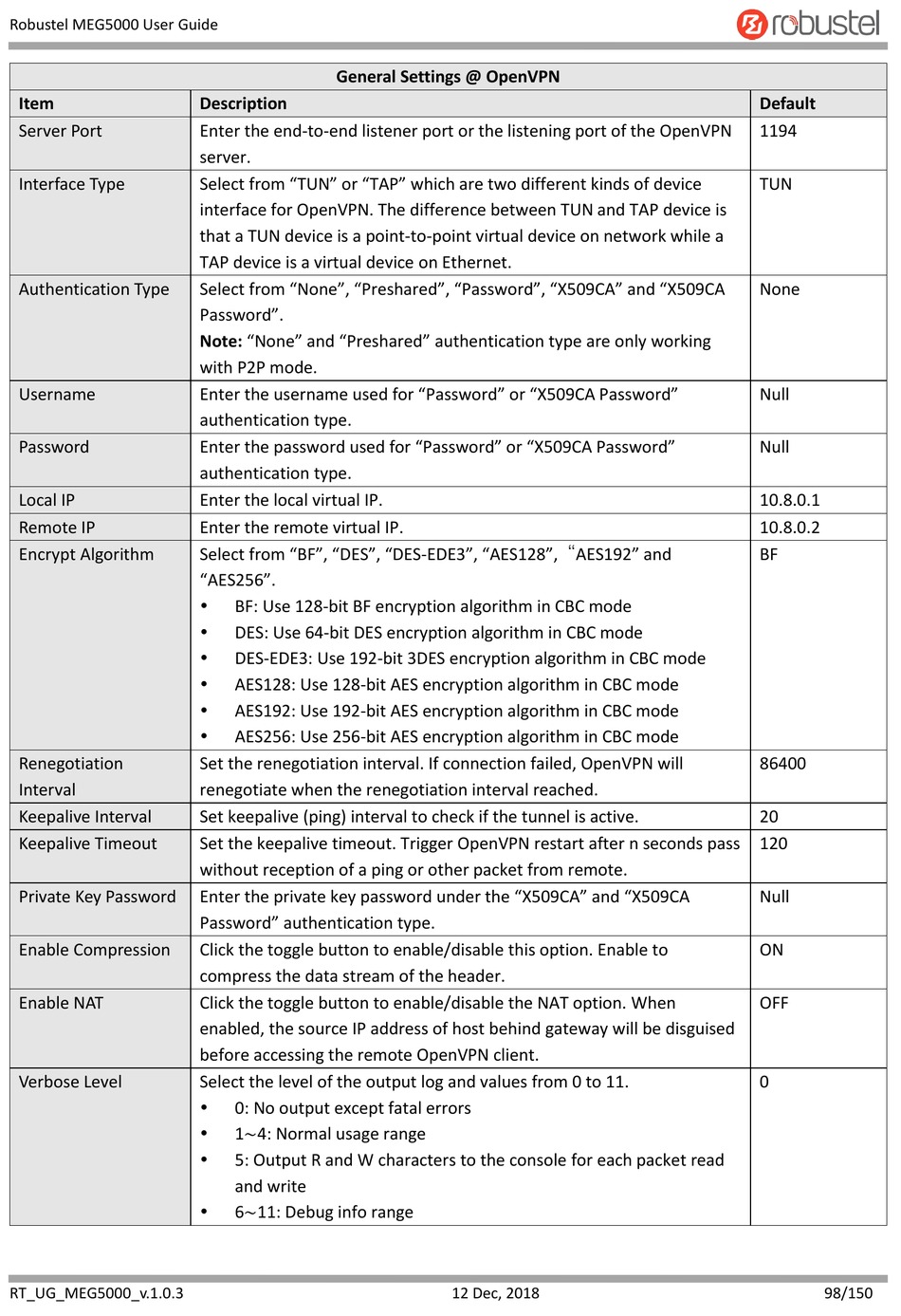

General Settings @ OpenVPN
Description
Enter the end-to-end listener port or the listening port of the OpenVPN
server.
Select from "TUN" or "TAP" which are two different kinds of device
interface for OpenVPN. The difference between TUN and TAP device is
that a TUN device is a point-to-point virtual device on network while a
TAP device is a virtual device on Ethernet.
Select from "None", "Preshared", "Password", "X509CA" and "X509CA
Password".
Note: "None" and "Preshared" authentication type are only working
with P2P mode.
Enter the username used for "Password" or "X509CA Password"
authentication type.
Enter the password used for "Password" or "X509CA Password"
authentication type.
Enter the local virtual IP.
Enter the remote virtual IP.
Select from "BF", "DES", "DES-EDE3", "AES128", "AES192" and
"AES256".

BF: Use 128-bit BF encryption algorithm in CBC mode

DES: Use 64-bit DES encryption algorithm in CBC mode

DES-EDE3: Use 192-bit 3DES encryption algorithm in CBC mode

AES128: Use 128-bit AES encryption algorithm in CBC mode

AES192: Use 192-bit AES encryption algorithm in CBC mode

AES256: Use 256-bit AES encryption algorithm in CBC mode
Set the renegotiation interval. If connection failed, OpenVPN will
renegotiate when the renegotiation interval reached.
Set keepalive (ping) interval to check if the tunnel is active.
Set the keepalive timeout. Trigger OpenVPN restart after n seconds pass
without reception of a ping or other packet from remote.
Enter the private key password under the "X509CA" and "X509CA
Password" authentication type.
Click the toggle button to enable/disable this option. Enable to
compress the data stream of the header.
Click the toggle button to enable/disable the NAT option. When
enabled, the source IP address of host behind gateway will be disguised
before accessing the remote OpenVPN client.
Select the level of the output log and values from 0 to 11.

0: No output except fatal errors

1~4: Normal usage range

5: Output R and W characters to the console for each packet read
and write

6~11: Debug info range
12 Dec, 2018
Default
1194
TUN
None
Null
Null
10.8.0.1
10.8.0.2
BF
86400
20
120
Null
ON
OFF
0
98/150
