1.3

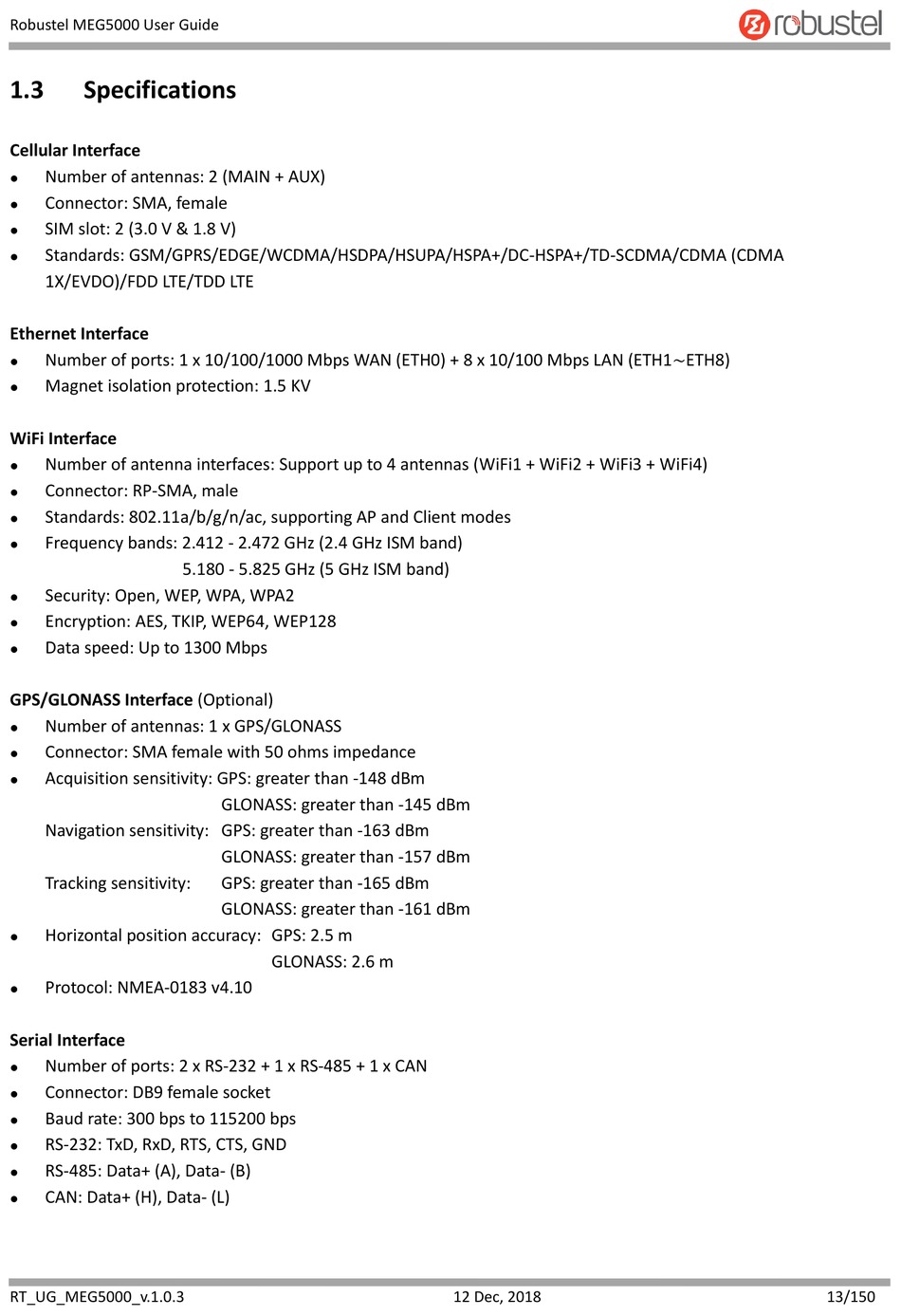

Specifications

Cellular Interface
Number of antennas: 2 (MAIN + AUX)

Connector: SMA, female

SIM slot: 2 (3.0 V & 1.8 V)

Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA

1X/EVDO)/FDD LTE/TDD LTE
Ethernet Interface
Number of ports: 1 x 10/100/1000 Mbps WAN (ETH0) + 8 x 10/100 Mbps LAN (ETH1~ETH8)

Magnet isolation protection: 1.5 KV

WiFi Interface
Number of antenna interfaces: Support up to 4 antennas (WiFi1 + WiFi2 + WiFi3 + WiFi4)

Connector: RP-SMA, male

Standards: 802.11a/b/g/n/ac, supporting AP and Client modes

Frequency bands: 2.412 - 2.472 GHz (2.4 GHz ISM band)

Security: Open, WEP, WPA, WPA2

Encryption: AES, TKIP, WEP64, WEP128

Data speed: Up to 1300 Mbps

GPS/GLONASS Interface (Optional)
Number of antennas: 1 x GPS/GLONASS

Connector: SMA female with 50 ohms impedance

Acquisition sensitivity: GPS: greater than -148 dBm

Navigation sensitivity: GPS: greater than -163 dBm
Tracking sensitivity:
Horizontal position accuracy: GPS: 2.5 m

Protocol: NMEA-0183 v4.10

Serial Interface
Number of ports: 2 x RS-232 + 1 x RS-485 + 1 x CAN

Connector: DB9 female socket

Baud rate: 300 bps to 115200 bps

RS-232: TxD, RxD, RTS, CTS, GND

RS-485: Data+ (A), Data- (B)

CAN: Data+ (H), Data- (L)

RT_UG_MEG5000_v.1.0.3
5.180 - 5.825 GHz (5 GHz ISM band)
GLONASS: greater than -145 dBm
GLONASS: greater than -157 dBm
GPS: greater than -165 dBm
GLONASS: greater than -161 dBm
GLONASS: 2.6 m
