Robustel R3010 User Manual

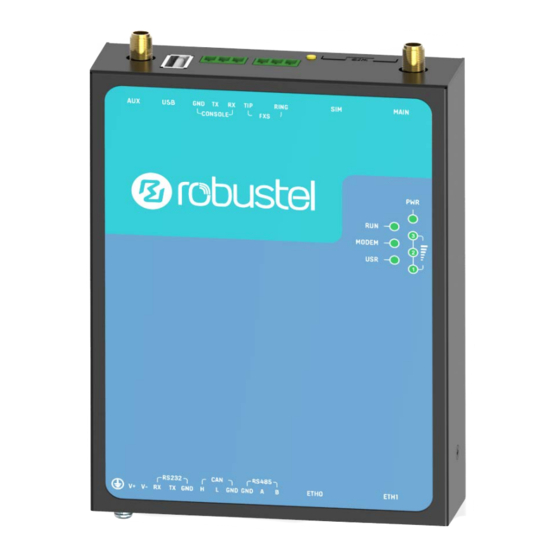

Industrial cellular iot gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Robustel R3010 User Guide
User Guide
R3010
Industrial Cellular IoT Gateway
2xEth + 1xVoice + 1xRS-232 + 1xRS-485 +1xCAN + 1xConsole + 1xUSB
RT_UG_R3010_v.1.0.2
31 Jul., 2018
Guangzhou Robustel LTD
0
Confidential
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel R3010

Summary of Contents for Robustel R3010

  • Page 1 Robustel R3010 User Guide User Guide R3010 Industrial Cellular IoT Gateway 2xEth + 1xVoice + 1xRS-232 + 1xRS-485 +1xCAN + 1xConsole + 1xUSB RT_UG_R3010_v.1.0.2 31 Jul., 2018 Guangzhou Robustel LTD Confidential www.robustel.com...
  • Page 2 The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the gateway, or for failure of the gateway to transmit or receive such data.
  • Page 4 Robustel R3010 User Guide Protecting Your Gateway To ensure error-free usage, please install and operate your gateway with care. Do remember the following: Do not expose the gateway to extreme conditions such as high humidity / rain, high temperature, direct sunlight, ...
  • Page 5 Robustel R3010 User Guide Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Robustel R3010 User Guide Industry Canada statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to  the following two conditions: this device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 7 Robustel R3010 User Guide Regulatory and Type Approval Information Table 1: Directives 2011/65/EC Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 8 Robustel R3010 User Guide Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Doc Version Change Description 9 July, 2018 1.0.0 v.1.0.0 Initial release 24 July, 2018 1.0.0...

  • Page 9: Table Of Contents

    Robustel R3010 User Guide Contents Chapter 1 Product Concept ........................... 10 Key Features ............................. 10 Package Contents ............................. 11 Specifications ............................13 Dimensions ............................... 15 Ordering Information ..........................15 Chapter 2 Hardware Installation ........................16 LED Indicators ............................16 PIN Assignment ............................18 USB Interface ............................
  • Page 10 Robustel R3010 User Guide 3.26 System > Debug ............................86 3.27 System > Update ............................87 3.28 System > APP Center ..........................88 3.29 System > Tools ............................89 3.30 System > Profile ............................91 3.31 System > User Management ........................92 Chapter 4 Configuration Examples .........................

  • Page 11: Chapter 1 Product Concept

    Chapter 1 Product Concept 1.1 Key Features Robustel R3010 is an industrial gateway designed for elevator monitoring and provides fast, reliable and stable Internet connectivity. R3010 is a powerful gateway developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel hardware routers.

  • Page 12: Package Contents

    4 x 3-pin 3.81mm connector  1 x Quick Start Guide with download link of other documents or tools  Note: If any of the above items is missing or damaged, please contact your Robustel sales representative. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 13 Robustel R3010 User Guide Optional accessories (sold separately): SMA cellular magnet antenna (3G/4G)  Wall mounting kit  35 mm DIN rail mounting kit  AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)  Power cable  RT_UG_R3010_v.1.0.2 8 Aug., 2018...

  • Page 14: Specifications

    Robustel R3010 User Guide Serial cable  Audio cable  1.3 Specifications Cellular Interface Number of Antenna 2 (MAIN + AUX) Type of Ports SMA male SIM slot Number 1 (3.0 V/1.8 V) Standards WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE Device Management...
  • Page 15 Apps of RobustOS App center L2TP, PPTP, DMVPN, RobustVPN, DDNS, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RobustLink *Request on demand, for more APPs please visit www.robustel.com. Power Supply and Consumption Power supply interface 2-pin 3.81mm connector Input voltage...

  • Page 16: Dimensions

    EU: B1/B2/B3/B4/B5/B7/B8/B20 US: B2/B4/B5/B13/B17 HSDPA/HSUPA/HSPA+/: B1/B2/B5/B8 Operating Environment -40 to 75°C/5 to 95% RH Storing Temperature -40 to 85°C *For more information about 4G frequency bands in different countries, please contact your Robustel sales representative. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...

  • Page 17: Chapter 2 Hardware Installation

    Robustel R3010 User Guide Chapter 2 Hardware Installation 2.1 LED Indicators Name Color Status Description Green Gateway is running Green Blinking every 250ms Gateway is preparing Blinking every 500ms Gateway starts working Gateway is powered off MODEM Green Solid Connected to link successfully...
  • Page 18 Robustel R3010 User Guide RSSI Green Three lights on High signal (21~31) Two lights on Medium signal (11~20) One light on Low signal (1~10) No signal RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...

  • Page 19: Pin Assignment

    Robustel R3010 User Guide 2.2 PIN Assignment There are connector PIN relationship tables on the front view of the R3010, as the following figure showed. XRS4 (Debug) Function Direction DeviceR3010 R3010Device Top View XIT (FXS) Function Direction RING DeviceR3010 R3010Device...

  • Page 20: Usb Interface

    You can insert a USB storage device into the router’s USB interface, such as a U disk or a hard disk. If there have a supported configuration file or a R3010 firmware in this USB storage device, the R3010 router will automatically update the configuration file or the firmware.

  • Page 21: Insert Or Remove Sim Card

    Robustel R3010 User Guide 2.5 Insert or Remove SIM Card Be sure to insert a SIM card before you use the gateway. Insert or remove the SIM as shown in the following steps. Inserting SIM Card  Power off the gateway.

  • Page 22: Attach External Antenna (Sma Type)

    Robustel R3010 User Guide 2.6 Attach External Antenna (SMA Type) Attach an external SMA antenna to the gateway’s connector and twist tightly. Make sure the antenna is within the correct frequency range provided by the ISP and with 50 Ohm impedance.

  • Page 23: Mount The Gateway

    Robustel R3010 User Guide 2.7 Mount the Gateway The gateway supports desktop, wall and DIN rail mounting. Wall mounting (measured in mm) Front View Side View Back View Use 3 pcs of M3*4 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.
  • Page 24 Robustel R3010 User Guide DIN rail size (measured in mm) Front View Side View Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the gateway, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket.

  • Page 25: Ground The Gateway

    Note: This product is appropriate to be mounted on a sound grounded device surface, such as a metal panel. Ground Bottom View 2.9 Connect the Gateway to a Computer Connect an Ethernet cable to ETH0 or ETH1 at the bottom of the R3010, and connect the other end of the cable to your computer. RT_UG_R3010_v.1.0.2 8 Aug., 2018...

  • Page 26: Power Supply

    Robustel R3010 User Guide 2.10 Power Supply R3010 Gateway supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. Note: The range of power voltage is 9 to 26V DC. RT_UG_R3010_v.1.0.2 8 Aug., 2018...

  • Page 27: Chapter 3 Initial Configuration

    Robustel R3010 User Guide Chapter 3 Initial Configuration The gateway can be configured through your web browser that including IE 8.0 or above, Chrome and Firefox, etc. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 28 Robustel R3010 User Guide Click Properties in the window of Local Area Connection Status. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 29 Two ways for configuring the IP address of PC Obtain an IP address automatically: Use the following IP address: (Configured a static IP address manually within the same subnet of R3010 Gateway) Click OK to finish the configuration. RT_UG_R3010_v.1.0.2 8 Aug., 2018...

  • Page 30: Factory Default Settings

    From your web browser, type the IP address of the gateway into the address bar and press enter. The default IP address of R3010 Gateway is 192.168. 0.1, though the actual address may vary. In the login page, enter the username and password, choose language and then click LOGIN. The default username and password is “admin”.

  • Page 31: Control Panel

    Robustel R3010 User Guide 3.4 Control Panel After logging in, the home page of the R3010 Gateway’s web interface is displayed, for example. Using the original password to log in the gateway, the page will pop up the following tab It is strongly recommended for security purposes that you change the default username and/or password.

  • Page 32: Status

    Robustel R3010 User Guide 1. Modify in one page; 2. Click under this page; 3. Modify in another page; 4. Click under this page; 5. Complete all modification; 6. Click 3.5 Status This page allows you to view the System Information, Internet Status and LAN Status of your Gateway.
  • Page 33 Robustel R3010 User Guide Internet Status Internet Status Item Description Active Link Show the current active link. Uptime Show the current amount of time the link has been connected. IP Address Show the IP address of current link. Gateway Show the gateway address of the current link.

  • Page 34: Interface > Link Manager

    Robustel R3010 User Guide 3.6 Interface > Link Manager General Settings @ Link Manager Item Description Default Link It’s no need to configure link manually in this part, we recommend to remain WWAN1 the default setting of system. Emergency Reboot Enable to reboot the whole system if no links available.
  • Page 35 Robustel R3010 User Guide The window is displayed as below when disabling the “Automatic APN Selection” option. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 36 Ping Detection Settings Enable Click the toggle button to enable/disable the ping detection mechanism, a keepalive policy of R3010 Gateway. Primary Server Gateway will ping this primary address/domain name to check that if the 8.8.8.8 current connectivity is active.
  • Page 37 Robustel R3010 User Guide Link Settings (WWAN) Item Description Default Secondary Server Gateway will ping this secondary address/domain name to check that if the 114.114.11 current connectivity is active. 4.114 Interval Set the ping interval. Retry Interval Set the ping retry interval. When ping failed, the gateway will ping again every retry interval.
  • Page 38 Robustel R3010 User Guide Click the button to clear SIM monthly data traffic usage statistics. Data statistics will be displayed only if enable the Data Allowance function in Interface > Link Manager > Link Settings > WWAN Settings > Data Allowance.

  • Page 39: Interface > Lan

    3.7 Interface > LAN This section allows you to set the related parameters for LAN port. There are two LAN ports on R3010 Gateway, including ETH11 and ETH2. ETH1 and ETH2 can freely choose from lan0~lan1, but at least one ETH port must be assigned as lan0.
  • Page 40 Robustel R3010 User Guide The window is displayed as below when choosing “Server” as the mode. The window is displayed as below when choosing “Relay” as the mode. Item Description Default DHCP Settings Enable Click the toggle button to enable/disable the DHCP function.
  • Page 41 Robustel R3010 User Guide Item Description Default IP Pool End Define the end of the pool of IP addresses which will be leased to 192.168.0.100 DHCP clients. Subnet Mask Define the subnet mask of IP address obtained by DHCP clients from 255.255.255.0...
  • Page 42 Robustel R3010 User Guide IP Settings Item Description Default Index Indicate the ordinal of the list. Interface Show the editing port, read only. IP Address Set the multiple IP address of the LAN port. Null Netmask Set the multiple Netmask of the LAN port.

  • Page 43: Interface > Ethernet

    3.8 Interface > Ethernet This section allows you to set the related parameters for Ethernet. There are two Ethernet ports on R3010 Gateway, including ETH0 and ETH1. The ETH0 and ETH1 can freely choose from lan0~lan1, but at least one LAN port must be assigned as lan0.

  • Page 44: Interface > Cellular

    Robustel R3010 User Guide This column allows you to view the status of Ethernet port. Click the row of status, the details status information will be display under the row. Please refer to the screenshot below. 3.9 Interface > Cellular This section allows you to set the related parameters of Cellular.
  • Page 45 Robustel R3010 User Guide The window is displayed as below when choosing “Specify” as the band select type. Cellular Item Description Default General Settings Index Indicate the ordinal of the list. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 46 Robustel R3010 User Guide Cellular Item Description Default SIM Card Show the currently editing SIM card. SIM1 Phone Number Enter the phone number of the SIM card. Null PIN Code Enter a 4-8 characters PIN code used for unlocking the SIM.
  • Page 47 Robustel R3010 User Guide Click the row of status, the details status information will be displayed under the row. Status Item Description Index Indicate the ordinal of the list. Modem Status Show the status of the radio module. Modem Model Show the model of the radio module.

  • Page 48: Network > Route

    Robustel R3010 User Guide Status Item Description IMEI Show the IMEI (International Mobile Equipment Identity) number of the radio module. Firmware Version Show the current firmware version of the radio module. This page allows you to check the AT Debug.
  • Page 49 Robustel R3010 User Guide Static Route Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this static route. Null Destination Enter the IP address of destination host or destination network. Null Netmask Enter the Netmask of destination host or destination network.

  • Page 50: Network > Firewall

    Robustel R3010 User Guide 3.11 Network > Firewall This section allows you to set the firewall and its related parameters, including Filtering, Port Mapping and DMZ. Filtering The filtering rules can be used to either accept or block certain users or ports from accessing your gateway.
  • Page 51 Robustel R3010 User Guide Filtering Item Description Default Enable Local SSH Access Click the toggle button to enable/disable this option. When enabled, the LAN user can access the gateway locally via SSH. Enable Remote Telnet Access Click the toggle button to enable/disable this option. When enabled, the Internet user can access the gateway remotely via Telnet.
  • Page 52 Robustel R3010 User Guide Click to add a filtering rule. The maximum count is 20. When select “TCP”, “UDP” or “TCP-UDP” as protocol, as shown below (take “TCP” protocol as an example): Whitelist Item Description Default Index Indicate the serial number of the list.
  • Page 53 Robustel R3010 User Guide Whitelist Item Description Default Index Indicate the serial number of the list. Description Enter a description of this whitelist. Null Defines if access is allowed from one or a range of IP addresses which are defined...
  • Page 54 Robustel R3010 User Guide Port Mapping Rules Item Description Default Internet Port Enter the internet port of gateway which can be accessed by other hosts Null from internet. Local IP Enter gateway’s LAN IP which will forward to the internet port of gateway.

  • Page 55: Ip Passthrough

    Robustel R3010 User Guide Source IP Address Set the address which can talk to the DMZ host. Null means for any addresses. Null Status 3.12 IP Passthrough Click Network-> IP Passthrough -> IP Passthrough, and click the switch button to enable or disenable IP Passthrough function.
  • Page 56 Robustel R3010 User Guide General Click “VPN - > IPsec - > General” to set IPsec parameters. General Settings @ General Item Description Default Enable NAT Traversal Click the toggle button to enable/disable the NAT Traversal function. This option must be enabled when router under NAT environment.
  • Page 57 Robustel R3010 User Guide Tunnel Click to add IPsec tunnel. The maximum count is 3. General Settings @ Tunnel Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this IPsec tunnel. Description Enter a description for this IPsec tunnel.
  • Page 58 Robustel R3010 User Guide ESP: Use the ESP protocol  AH: Use the AH protocol  Local Subnet Enter the local subnet’s address with mask protected by IPsec, e.g. Null 192.168.1.0/24 Remote Subnet Enter the remote subnet’s address with mask protected by IPsec, e.g. 10.8.0.0/24 Null The window is displayed as below when choosing “PSK”...
  • Page 59 Robustel R3010 User Guide The window is displayed as below when choosing “xAuth PSK” as the authentication type. The window is displayed as below when choosing “xAuth CA” as the authentication type. IKE Settings Item Description Default IKE Type Select from IKE v1 and IKE v2.
  • Page 60 Robustel R3010 User Guide IKE Settings Item Description Default Authentication Select from “MD5”, “SHA1”, “SHA2 256” or “SHA2 512” to be used in IKE Algorithm negotiation. Encryption Algorithm Select from “3DES”, “AES128” and “AES256”to be used in IKE negotiation. 3DES 3DES: Use 168-bit 3DES encryption algorithm in CBC mode ...
  • Page 61 Robustel R3010 User Guide If click VPN > IPsec > Tunnel > General Settings, and choose ESP as protocol. The specific parameter configuration is shown as below. If choose AH as protocol, the window of SA Settings is displayed as below.
  • Page 62 Robustel R3010 User Guide SA Settings Item Description Default IKE SA and the IPsec SAs based on the IKE SA. DPD Failures Set the timeout of DPD (Dead Peer Detection) packets. Advanced Settings Enable Compression Click the toggle button to enable/disable this option. Enable to compress the inner headers of IP packets.

  • Page 63: Vpn > Openvpn

    Robustel R3010 User Guide x509 Item Description Default X509 Settings @private.key @crl.pem Remote Certificate Click on “Choose File” to upload a remote certificate file from your computer, and then import this file into your router. Private Key Click on “Choose File” to upload a private key from your computer...
  • Page 64 Robustel R3010 User Guide Click to add tunnel settings. The maximum count is 3. The window is displayed as below when choosing “None” as the authentication type. By default, the mode is “Client”. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 65 Robustel R3010 User Guide The window is displayed as below when choosing “P2P” as the mode. The window is displayed as below when choosing “None” as the authentication type. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 66 Robustel R3010 User Guide RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 67 Robustel R3010 User Guide The window is displayed as below when choosing “Preshared” as the authentication type. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 68 Robustel R3010 User Guide The window is displayed as below when choosing “Password” as the authentication type. The window is displayed as below when choosing “X509CA” as the authentication type. RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 69 Robustel R3010 User Guide RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 70 Robustel R3010 User Guide The window is displayed as below when choosing “X509CA Password” as the authentication type. General Settings @ OpenVPN Item Description Default Index Indicate the ordinal of the list. Enable Click the toggle button to enable/disable this OpenVPN tunnel.
  • Page 71 Robustel R3010 User Guide General Settings @ OpenVPN Item Description Default Server Port Enter the end-to-end listener port or the listener port of the OpenVPN 1194 server. Interface Type Select from “TUN”, “TAP” which are two different kinds of device interface for OpenVPN.
  • Page 72 Robustel R3010 User Guide Advanced Settings @ OpenVPN Item Description Default Enable HMAC Firewall Click the toggle button to enable/disable this option. Add an additional layer of HMAC authentication on top of the TLS control channel to protect against DoS attacks.

  • Page 73: Vpn > Gre

    Robustel R3010 User Guide Certificate File Click on “Choose File” to upload certificate file. Null Private Key Click on “Choose File” to upload private key. Null TLS-Auth Key Click on “Choose File” to upload TLS-AutH key. Null PKCS#12 Certificate Click on “Choose File” to upload PKCS#12 Certificate.

  • Page 74: Services > Syslog

    3.16 Services > Syslog This section allows you to set the syslog parameters. The system log of R3010 Gateway can be saved in the local, also supports to be sent to remote log server and specified application debugging. By default, the “Log to Remote” option is disabled.
  • Page 75 Robustel R3010 User Guide The window is displayed as below when enabling the “Log to Remote” option. Syslog Settings Item Description Default Enable Click the toggle button to enable/disable the Syslog settings option. Syslog Level Select from “Debug”, “Info”, “Notice”, “Warning” or “Error”, which from low to Notice high.

  • Page 76: Services > Event

    Robustel R3010 User Guide 3.17 Services > Event This section allows you to set the event parameters. Event feature provides an ability to send alerts by SMS or Email when certain system events occur. General Settings @ Event Item Description...
  • Page 77 Robustel R3010 User Guide General Settings @ Notification Item Description Default Index Indicate the ordinal of the list. Description Enter a description for this group. Null Sent SMS Click the toggle button to enable/disable this option. When enabled, the gateway will send notification to the specified phone numbers via SMS if event occurs.
  • Page 78 Robustel R3010 User Guide separate each address. Save to NVM Click the toggle button to enable/disable this option. Enable to save event to nonvolatile memory. In the following window you can query various types of events record. Click to query filtered events while click to clear the event records in the window.

  • Page 79: Services > Ntp

    Robustel R3010 User Guide 3.18 Services > NTP This section allows you to set the related NTP (Network Time Protocol) parameters, including Time zone, NTP Client and NTP Server. Item Description Default Timezone Settings Time Zone Click the drop down list to select the time zone you are in.

  • Page 80: Services > Sms

    Robustel R3010 User Guide 3.19 Services > SMS This section allows you to set SMS parameters. R3010 Gateway supports SMS management. User can control and configure their gateways by sending SMS. For more details about SMS control, refer to 4.1.2 SMS Remote Control.

  • Page 81: Services > Email

    Robustel R3010 User Guide User can test the current SMS service whether it is available in this section. SMS Testing Item Description Default Phone Number Enter the specified phone number which can receive the SMS from gateway. Null Message Enter the message that gateway will send it to the specified phone number.

  • Page 82: Services > Ddns

    Robustel R3010 User Guide Email Settings Item Description Default Enable TLS/SSL Click the toggle button to enable/disable the TLS/SSL option. Outgoing server Enter the SMTP server IP Address or domain name. Null Server port Enter the SMTP server port. Timeout Set the max time for sending email to SMTP server.

  • Page 83: Services > Ssh

    Display the current status of the DDNS. Last Update Time Display the date and time for the DDNS was last updated successfully. 3.22 Services > SSH R3010 Gateway supports SSH password access and secret-key access. SSH Settings Item Description Default Enable Click the toggle button to enable/disable this option.

  • Page 84: Services > Telephone

    Robustel R3010 User Guide Import Authorized Keys Item Description Authorized Keys Click on “Choose File” to locate an authorized key from your computer, and then click “Import” to import this key into your gateway. Note: This option is valid when enabling the password logins option.

  • Page 85: Services > Web Server

    Robustel R3010 User Guide Call Records Item Description Default Filtering Set the wait number timeout for dial plan, measured in second. Click this button to clear the call record. Click this button to refresh the call record. 3.24 Services > Web Server This section allows you to modify the parameters of Web Server.

  • Page 86: Services > Advanced

    Robustel R3010 User Guide Note: HTTPS is more secure than HTTP. In many cases, clients may be exchanging confidential information with a server, which needs to be secured in order to prevent unauthorized access. For this reason, HTTP was developed by Netscape corporation to allow authorization and secured transactions.

  • Page 87: System > Debug

    Robustel R3010 User Guide Periodic Reboot Settings Item Description Default Periodic Reboot Set the reboot period of the gateway. 0 means disable. Daily Reboot Time Set the daily reboot time of the gateway. You should follow the format as HH: Null MM, in 24h time frame, otherwise the data will be invalid.

  • Page 88: System > Update

    3.27 System > Update This section allows you to upgrade the firmware of your R3010. Click System > Update > System Update, and click on “Choose File” to locate the firmware file to be used for the upgrade. Once the latest firmware has been chosen, click “Update”...

  • Page 89: System > App Center

    File Click on “Choose File” to locate the App file from your computer, and then click to import this file into your gateway. Note: File format should be xxx.rpk, e.g. R3010-robustlink-1.0.0.rpk. Installed Apps Index Indicate the ordinal of the list.

  • Page 90: System > Tools

    Robustel R3010 User Guide 3.29 System > Tools This section provides users three tools: Ping, At Debug, Traceroute and Sniffer. Ping Item Description Default IP address Enter the ping’s destination IP address or destination domain. Null Number of Requests Specify the number of ping requests.
  • Page 91 Robustel R3010 User Guide Traceroute Item Description Default Trace Address Enter the trace’s destination IP address or destination domain. Null Trace Hops Specify the max trace hops. Gateway will stop tracing if the trace hops has met max value no matter the destination has been reached or not.

  • Page 92: System > Profile

    Robustel R3010 User Guide Sniffer Item Description Default Interface Choose the interface according to your Ethernet configuration. Host Filter the packet that contain the specify IP address. Null Packets Request Set the packet number that the gateway can sniffer at a time.

  • Page 93: System > User Management

    Robustel R3010 User Guide XML Configuration File Click on to locate the XML configuration file from your computer, and then click to import this file into your gateway. Export Configuration File Ignore Disabled Features Click the toggle button as “OFF” to ignore the disabled features.
  • Page 94 Robustel R3010 User Guide Super User Settings Item Description Default New Username Enter a new username you want to create; valid characters are a-z, A-Z, 0-9, Null @, ., -, #, $, and *. Old Password Enter a new password you want to create; valid characters are a-z, A-Z, 0-9, Null @, ., -, #, $, and *.

  • Page 95: Chapter 4 Configuration Examples

    4.1.1 Console Port User can use the console port to manage the router via CLI commands, please check section. 4.1.2 Voice Port R3010 supports one FXS port for voice conversation. Please refer to the connection diagram at the right site. RT_UG_R3010_v.1.0.2 8 Aug., 2018...

  • Page 96: Rs232

    Robustel R3010 User Guide 4.1.3 RS232 R3010 supports two RS232 for serial data communication. Please refer to the connection diagram at the right site. 4.1.4 CAN R3010 supports one CAN for serial data communication. Please refer to the connection diagram at the right site.

  • Page 97: Rs485

    Robustel R3010 User Guide 4.1.5 RS485 R3010 supports one RS485 for serial data communication. Please refer to the connection diagram at the right site. 4.2 Cellular Connection 4.2.1 Cellular Dial-Up This section shows you how to configure SIM card for Cellular Dial-up. Connect the gateway correctly and insert SIM, then open the configuration page.
  • Page 98 Robustel R3010 User Guide When finished, click Submit > Save & Apply for the configuration to take effect. The window is displayed below by clicking Interface > Cellular > Advanced Cellular Settings. Click the edit button of SIM1 to set its parameters according to your application request.

  • Page 99: Sms Remote Control

    4.2.2 SMS Remote Control R3010 supports remote control via SMS. You can use following commands to get the status of R3010, and set all the parameters of R3010. There are three authentication types for SMS control. You can select from “Password”, “Phonenum”...
  • Page 100 Robustel R3010 User Guide XML command: <lan > <network max_entry_num="2" > <id > 1</id > <interface > lan0</interface > <ip > 172.16.24.24</ip > <netmask > 255.255.0.0</netmask > <mtu > 1500</mtu > SMS cmd: set lan network 1 interface lan0 set lan network 1 ip 172.16.24.24 set lan network 1 netmask 255.255.0.0...
  • Page 101 Robustel R3010 User Guide admin:admin;reboot In this command, username is “admin”, password is “admin”, and the command is to reboot the Gateway. SMS received: admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false In this command, username is “admin”, password is “admin”, and the command is to disable the remote_ssh and remote_telnet access.

  • Page 102: Chapter 5 Introductions For Cli

    Robustel R3010 User Guide Chapter 5 Introductions for CLI 5.1 What Is CLI The R3010 command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection. Route login:...

  • Page 103: How To Configure The Cli

    Example 2: Update firmware via tftp # tftpupdate (space+?) firmware New firmware # tftpupdate firmware (space+?) String Firmware name # tftpupdate firmware R3010-firmware-sysupgrade-unknown.bin host 192.168.100.99 //enter a new firmware name Downloading R3010-firmware-s 100% |*******************************| 5018k 0:00:00 ETA RT_UG_R3010_v.1.0.2 8 Aug., 2018...
  • Page 104 Robustel R3010 User Guide Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success # config save_and_apply // save and apply current configuration, make you configuration effect Example 3: Set LAN IP address # show lan all...
  • Page 105 Robustel R3010 User Guide vlan VLAN # set lan network 1(space+?) interface Interface IP Address netmask Netmask dhcp DHCP Settings # set lan network 1 interface lan0 # set lan network 1 ip 172.16.99.22 //set IP address for lan //setting succeed # set lan network 1 netmask 255.255.0.0...
  • Page 106 Robustel R3010 User Guide sim { id = 2 card = sim2 phone_number = "" extra_at_cmd = "" network_type = auto band_select_type = all band_wcdma_850 = false band_wcdma_900 = false band_wcdma_1900 = false band_wcdma_2100 = false band_lte_800 = false band_lte_850 = false...

  • Page 107: Commands Reference

    Robustel R3010 User Guide band_wcdma_1900 WCDMA 1900 band_wcdma_2100 WCDMA 2100 band_lte_800 LTE 800 (band 20) band_lte_850 LTE 850 (band 5) band_lte_900 LTE 900 (band 8) band_lte_1800 LTE 1800 (band 3) band_lte_1900 LTE 1900 (band 2) band_lte_2100 LTE 2100 (band 1)

  • Page 108: Chapter 6 Glossary

    Robustel R3010 User Guide Chapter 6 Glossary Abbr. Description Alternating Current Access Point Name ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting Circuit Switched Data Clear to Send...
  • Page 109 Robustel R3010 User Guide Abbr. Description Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network Password Authentication Protocol Personal Computer Personal Communications Network, also referred to as DCS 1800 Protocol Data Unit Personal Identity Number...
  • Page 110 Robustel R3010 User Guide RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
  • Page 111 Robustel R3010 User Guide Guangzhou Robustel LTD Address: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel: 086-20-29019902 Email: info@robustel.com RT_UG_R3010_v.1.0.2 8 Aug., 2018 Confidential...
