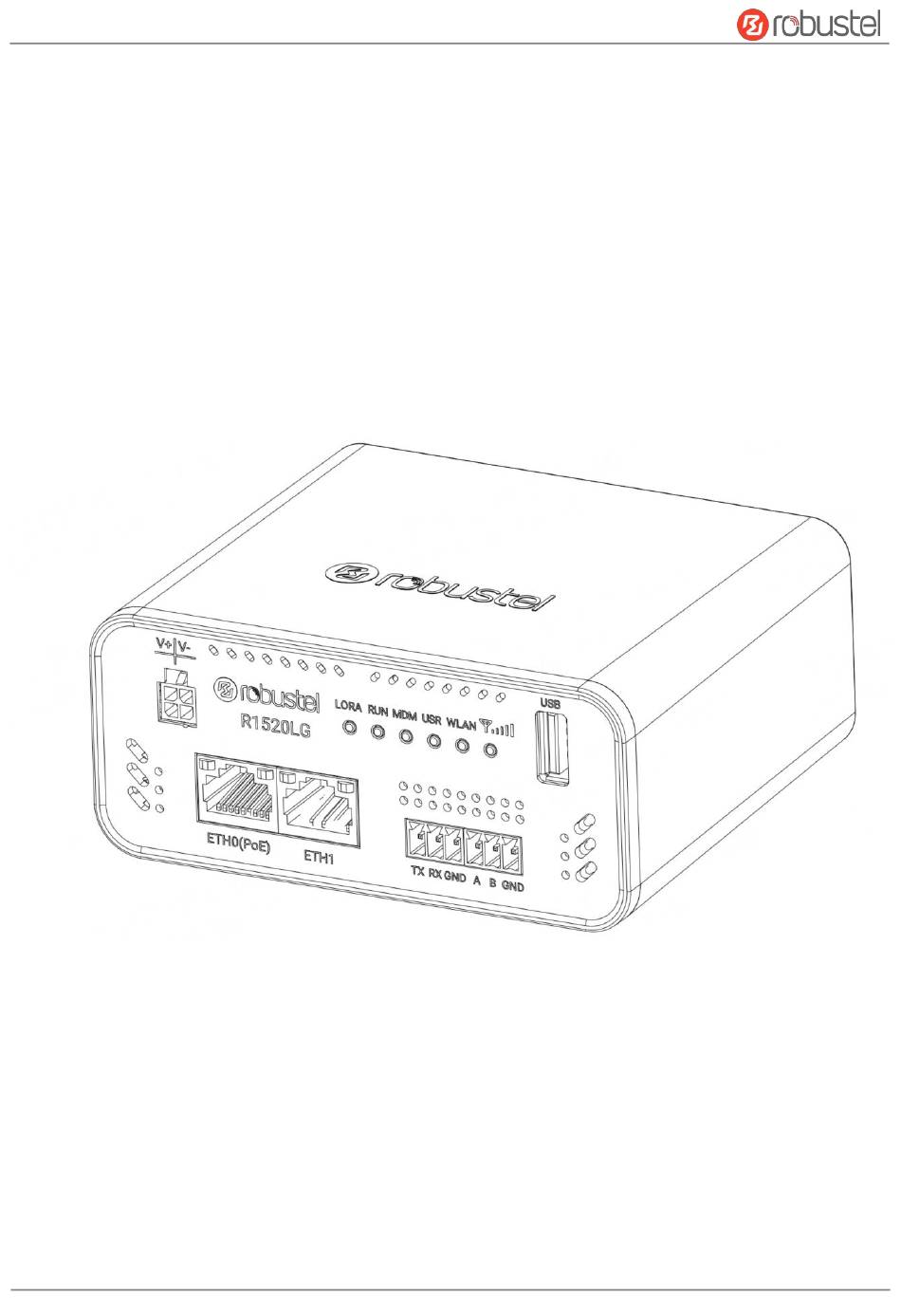

- Page 1 Robustel R1520LG Hardware Manual R1520LG Hardware Manual Version: 1.0.0 Date: March 6, 2024 RT137_HM_R1520LG 1/11...
-
Page 2: Metal Parts
Robustel R1520LG Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit... - Page 3 Robustel R1520LG Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
- Page 4 Robustel R1520LG Hardware Manual Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 Robustel R1520LG Hardware Manual Related download link Find more product documents or tools at: www.robustel.com/documentation/ Technical Support Tel: 400-987-3791 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions.
- Page 6 Robustel R1520LG Hardware Manual Overview R1520LG, as a new generation Industrial-grade LoRa gateway, not only supports 4G/3G/2G but also features WiFi and POE-PD capabilities, providing a robust and reliable connectivity solution for industrial applications. With an integrated Chirpstack LoRa network server and equipped with a cutting-edge LoRa chip, this high-performance 8-channel gateway boasts outstanding performance in high-traffic management and remarkable advantages in low power consumption.

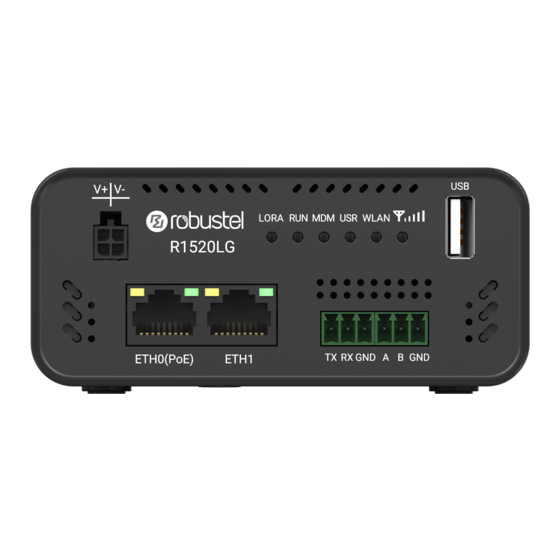

- Page 7 Robustel R1520LG Hardware Manual Panel Layout Front View Back View RT137_HM_R1520LG 7/11...
-
Page 8: Interface Descriptions
Robustel R1520LG Hardware Manual Interface Descriptions 5. LED Indicators. PIN Description. Description Description Note On, solid Gateway system is initializing Power On, blinking Gateway starts operating Gateway is powered off Ground On, solid Connected successfully On, blinking In communication Disconnected... -
Page 9: Hardware Installation
Robustel R1520LG Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device and paste SIM card cover sticker if needed. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Terminal Block Installation. Insert the 2x3PIN terminal blocks into the interfaces connector, then can connect the devices or sensors to the gateway with wires via corresponding interfaces e.g. - Page 10 Robustel R1520LG Hardware Manual Connect the router to the computer. Connect the Ethernet cable to any port labeled ETH0 or ETH1 of the gateway, and connect the other end of the cable to your computer. DIN Rail Mounting. Use 3 M3 screws to fix the DIN rail to the device, then hang the DIN rail on the mounting bracket.
- Page 11 Robustel R1520LG Hardware Manual Login to the Device Connect the gateway’s Ethernet port to a PC with After logging in, the home page of the web a standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
